Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module assembly. Refer to HVAC MODULE ASSEMBLY REPLACEMENT  .
  2. Disconnect the electrical connector (3) from the mode actuator (4).
  3. Remove the screws from the mode actuator (4).
  4. Remove the mode actuator (4) from the HVAC module assembly (1).

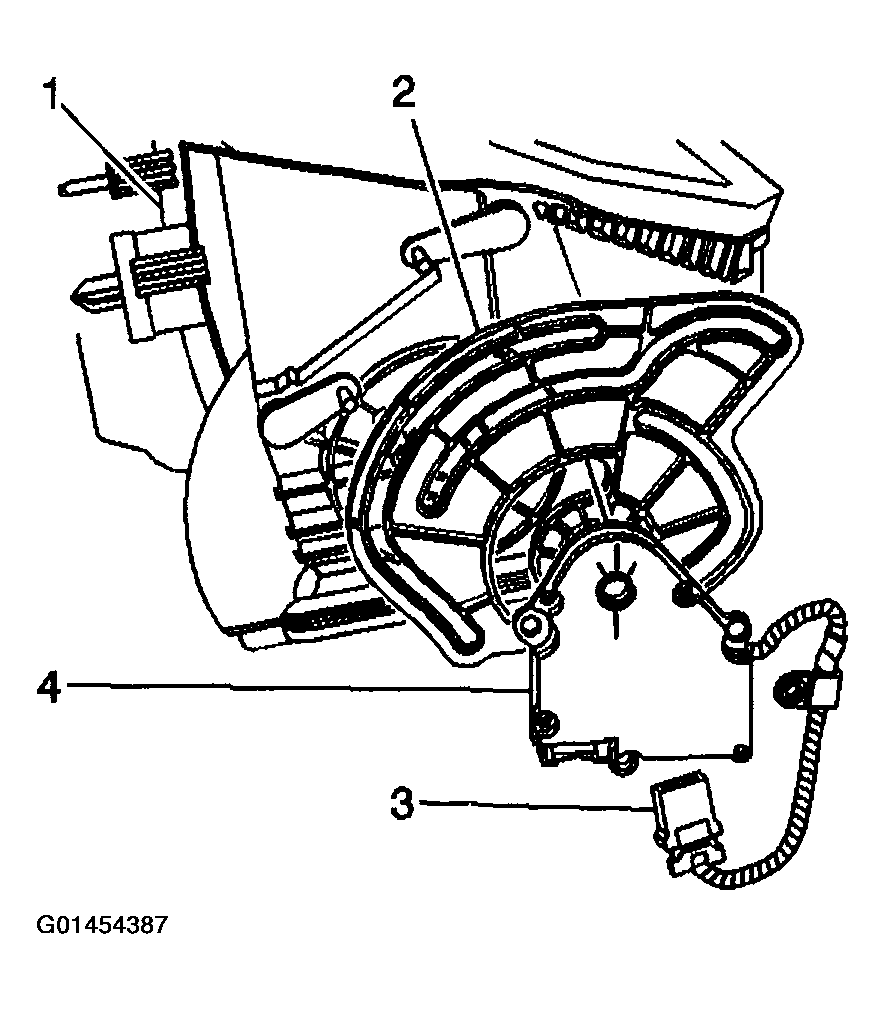

    Fig 1: Disconnecting Electrical Connector From Mode Actuator
    G01454387Courtesy of GENERAL MOTORS CORP.
  5. Remove the wiring harness from the air distribution housing (1).
  6. Remove the screws from the air distribution housing (1).
  7. Remove the air distribution housing (1) from the HVAC module assembly (2).

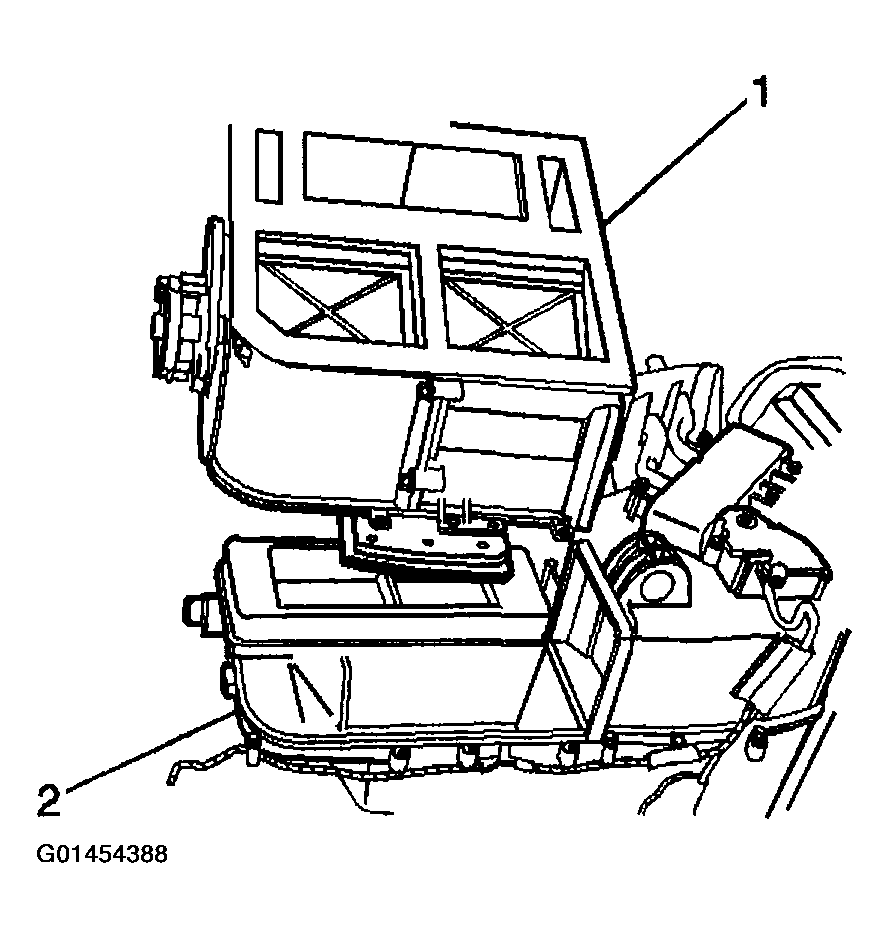

    Fig 2: Removing Air Distribution Housing From HVAC Module Assembly
    G01454388Courtesy of GENERAL MOTORS CORP.
  8. Remove the mode door (2) from the air distribution housing (1).

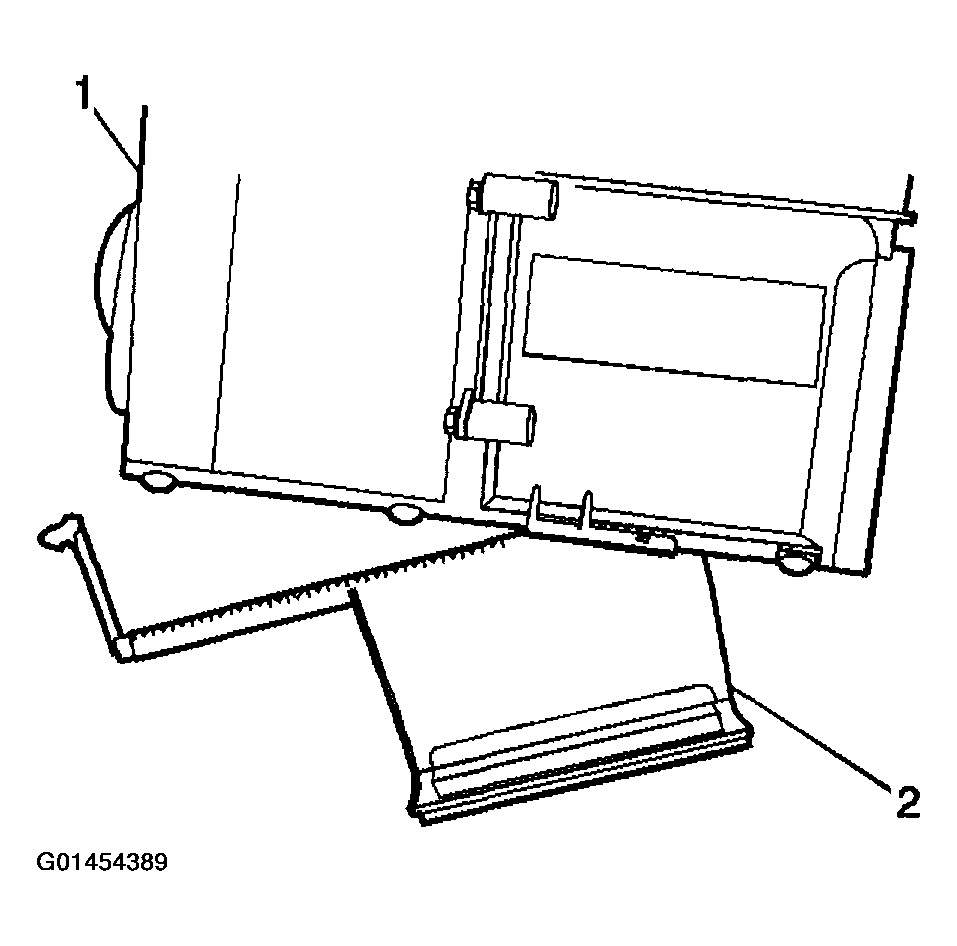

    Fig 3: Removing Mode Door From Air Distribution Housing
    G01454389Courtesy of GENERAL MOTORS CORP.
