Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.
  2. Remove the air intake tube.
  3. Remove the heater and surge tank hose from the mounting clip.
    Fig 1: Disconnecting Heater Hose From Heater Core Inlet Using J 43181
    G01454290Courtesy of GENERAL MOTORS CORP.
  4. Using the J 43181  disconnect the heater hose from the heater core inlet.
    1. Install the J 43181  to the heater core pipe.
    2. Close the tool around the heater core pipe.
    3. Firmly pull the tool into the quick connect end of the heater hose.
    4. Firmly grasp the heater hose. Pull the heater hose forward in order to disengage the hose from the heater core.
  5. Remove the inlet heater hose (1) from the engine coolant inlet fitting.
  6. Remove the inlet heater hose.

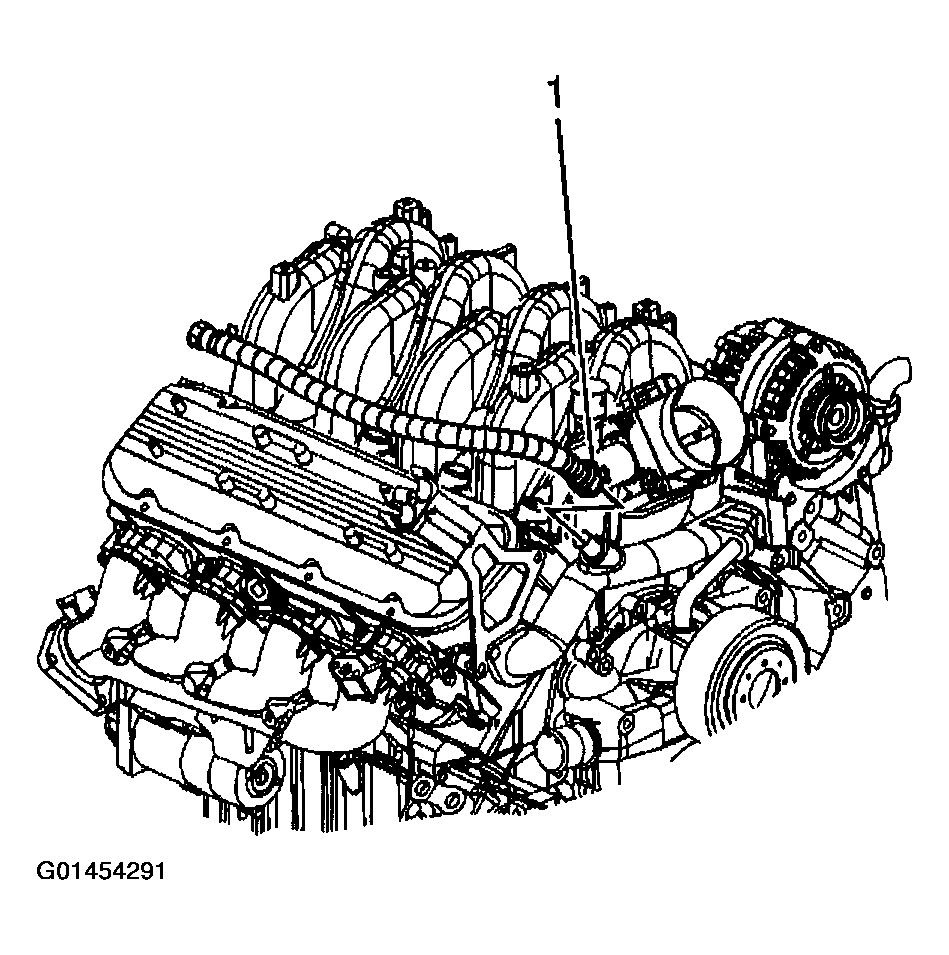

    Fig 2: Removing Inlet Heater Hose From Engine Coolant Inlet Fitting
    G01454291Courtesy of GENERAL MOTORS CORP.
