Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. If replacing the HVAC module, transfer the components from the old HVAC module as necessary.
  2. Install the HVAC module (2) to the vehicle (1).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the nuts (4) to the HVAC module (2).

    Tighten

    Tighten the nuts to 9 N.m (80 lb in).

  4. Install the bolts(4) to the HVAC module (2).

    Tighten

    Tighten the bolts to 4 N.m (35 lb in).

  5. Connect the electrical harnesses and the ground connections.
  6. Install the HVAC module drain hose.

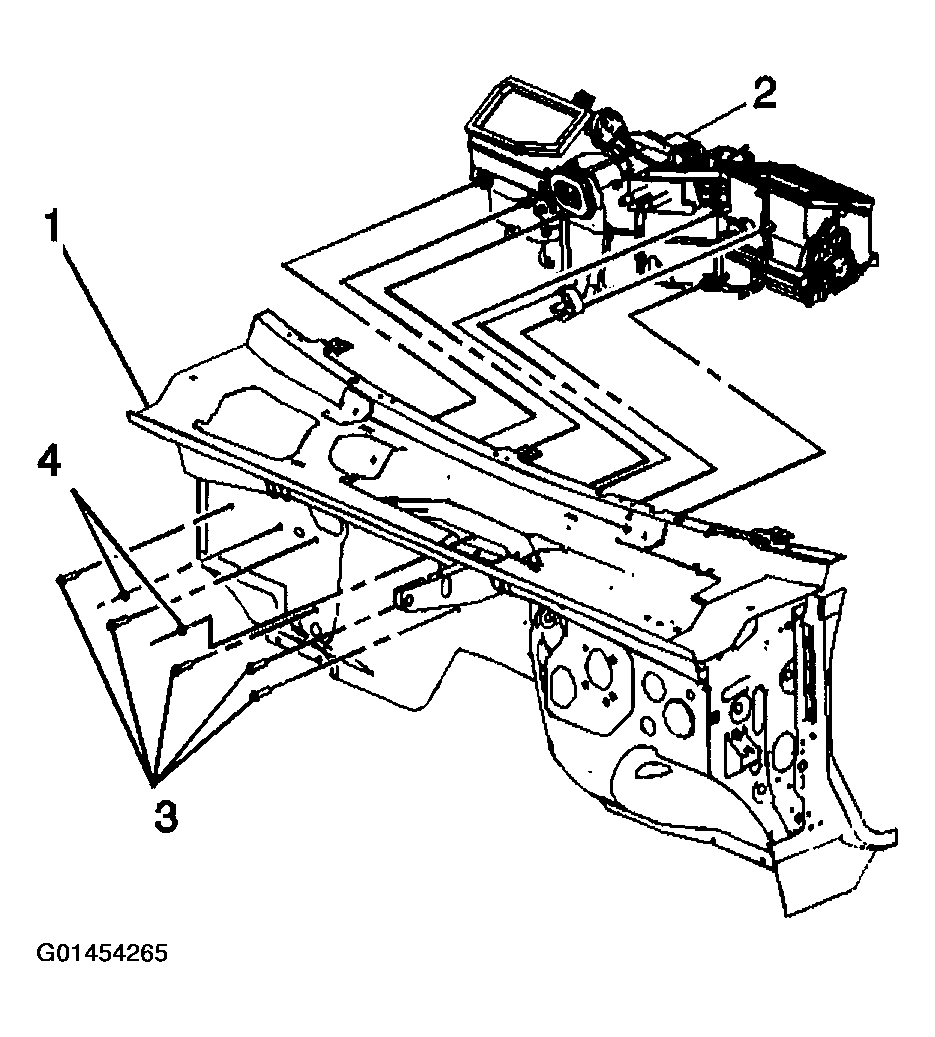

    Fig 1: Connecting Electrical Harnesses & Ground Connections From HVAC Module
    G01454265Courtesy of GENERAL MOTORS CORP.
  7. Install the instrument panel carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages and Console.
  8. Install the accumulator. Refer to ACCUMULATOR REPLACEMENT  .
  9. Install the surge tank outlet hose to the heater core.

    Firmly push the quick connect onto the heater core pipe until you hear an audible click.

  10. Install the inlet heater hose to the heater core.

    Firmly push the quick connect onto the heater core pipe until you hear an audible click.

  11. Fill the engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.

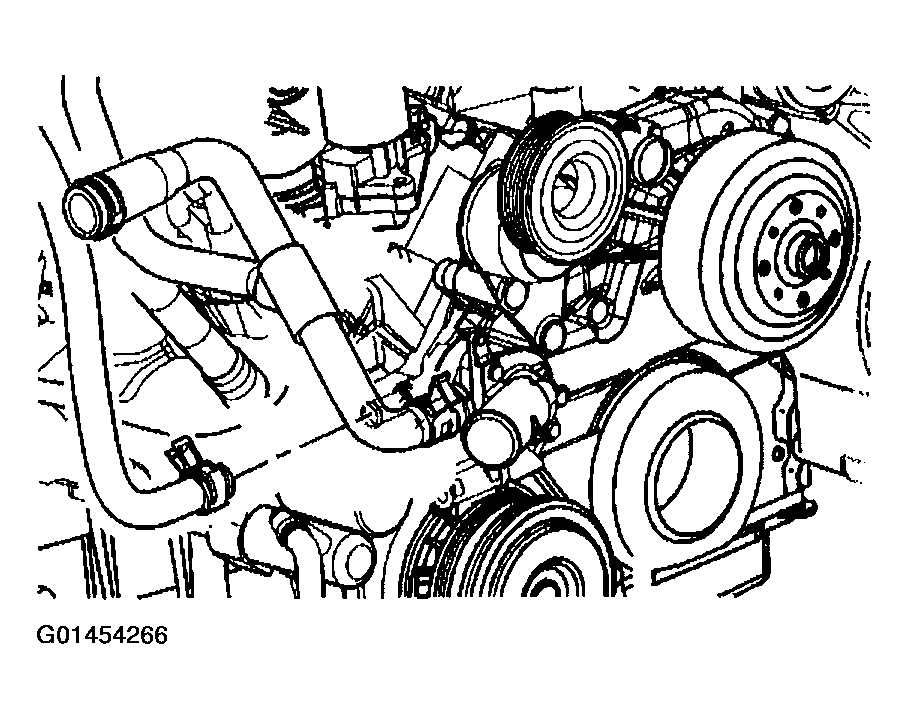

    Fig 2: Installing Inlet Heater Hose To Heater Core
    G01454266Courtesy of GENERAL MOTORS CORP.
