Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to REFRIGERANT RECOVERY AND RECHARGING  .
  2. Remove the discharge hose mounting bolt (2) from the A/C compressor.
  3. Remove the discharge hose (1) from the A/C compressor.
  4. Remove the upper radiator baffle. Refer to RADIATOR AIR BAFFLE AND DEFLECTOR REPLACEMENT -- UPPER in Engine Cooling.

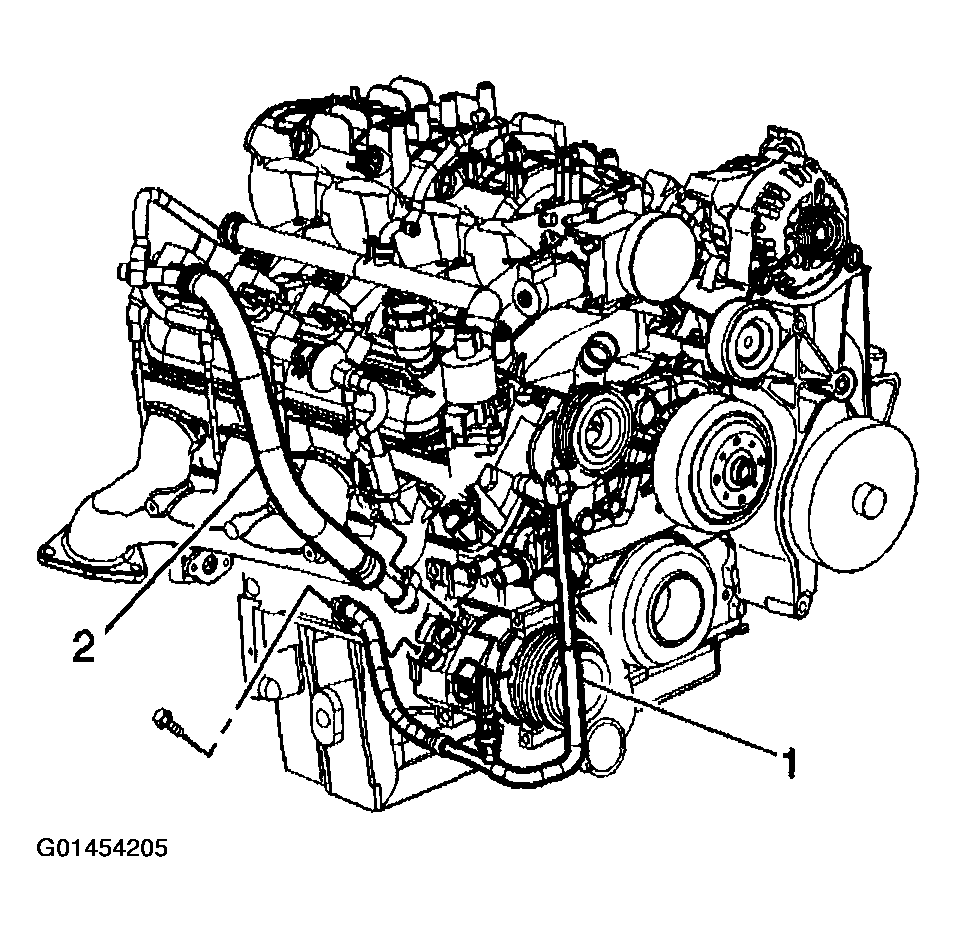

    Fig 1: Removing Discharge Hose From A/C Compressor
    G01454205Courtesy of GENERAL MOTORS CORP.
  5. Remove the discharge hose nut from the condenser.
  6. Remove the discharge hose from the condenser.
  7. Disconnect the electrical connector from the A/C recirculation switch.
  8. Remove the discharge hose from the vehicle.
  9. Discard all of the used sealing washers. Cap the system openings.

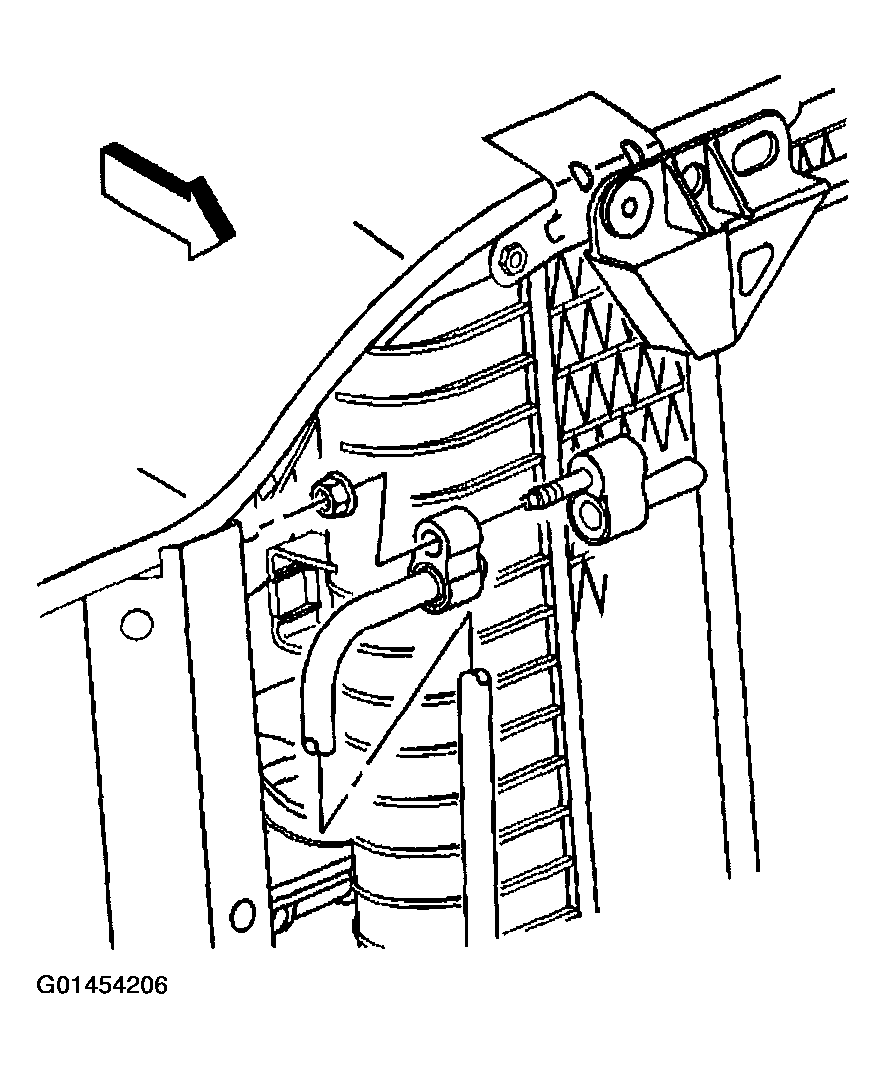

    Fig 2: Removing Discharge Hose Nut From Condenser
    G01454206Courtesy of GENERAL MOTORS CORP.
