Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat blade tool in order to remove the deflector from the instrument panel.
  2. Remove the deflector.

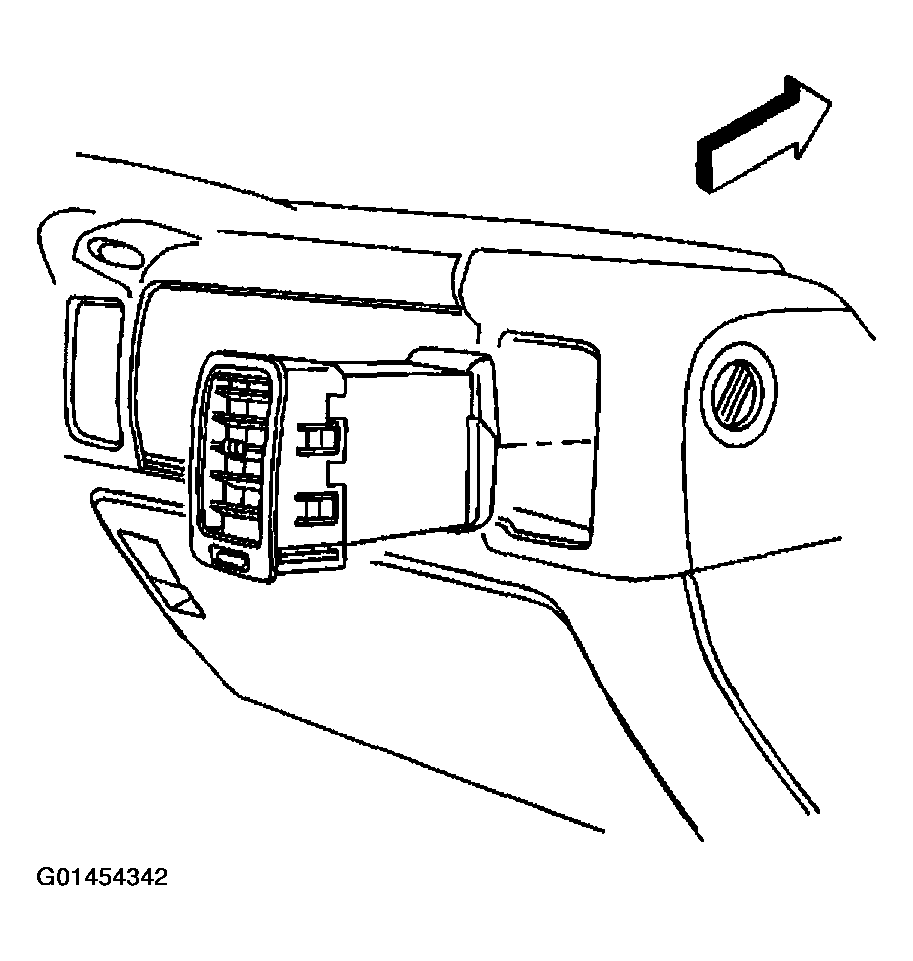

    Fig 1: Removing Deflector - Instrument Panel Air - Right
    G01454342Courtesy of GENERAL MOTORS CORP.
