Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the deflector into the opening in the instrument panel.
  2. Push the deflector into the instrument panel until the deflector snaps into place.

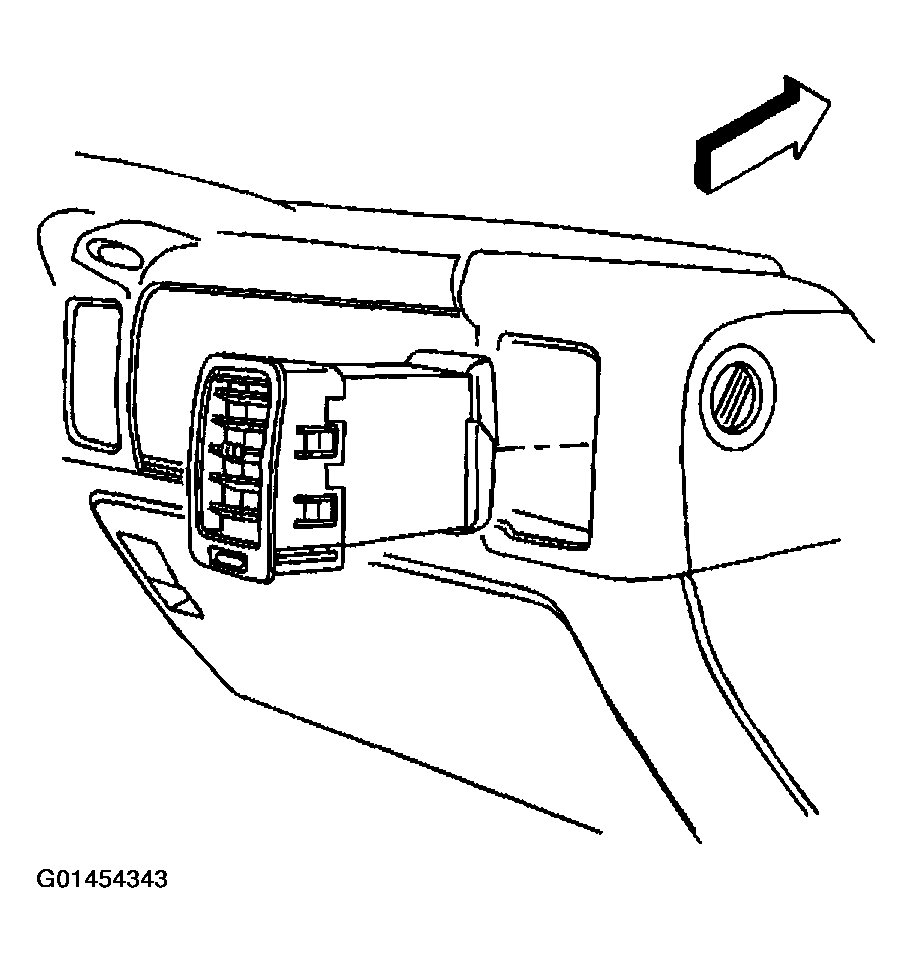

    Fig 1: Installing Deflector - Instrument Panel Air - Right
    G01454343Courtesy of GENERAL MOTORS CORP.
