Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant. Refer to REFRIGERANT RECOVERY AND RECHARGING  .
  2. Remove the grille. Refer to GRILLE REPLACEMENT (CADILLAC) or GRILLE REPLACEMENT (AVALANCHE) in Exterior Trim.
  3. Remove the tie bar to radiator brace bolts (1). Access the bolts from the rear of the upper radiator support.

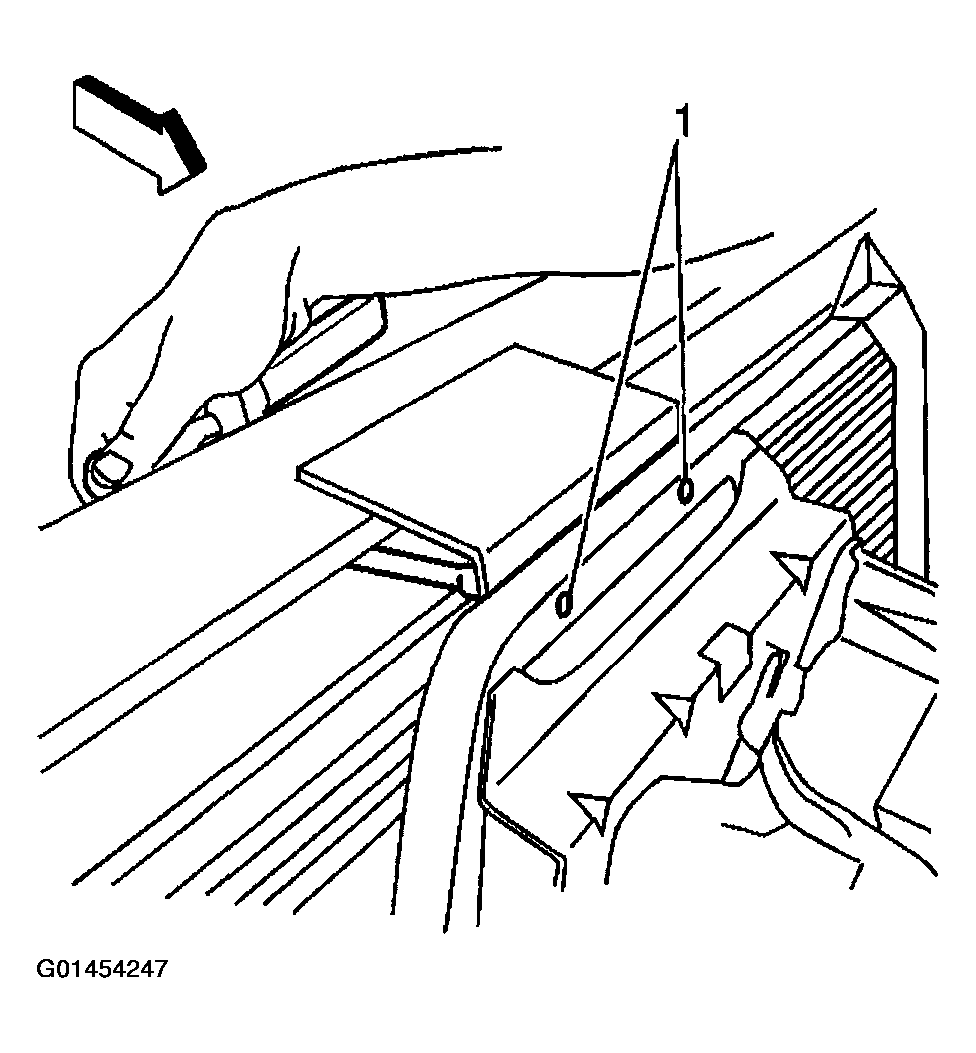

    Fig 1: Removing Tie Bar To Radiator Brace Bolts
    G01454247Courtesy of GENERAL MOTORS CORP.
  4. Remove the lower bolts from the hood latch support bracket.

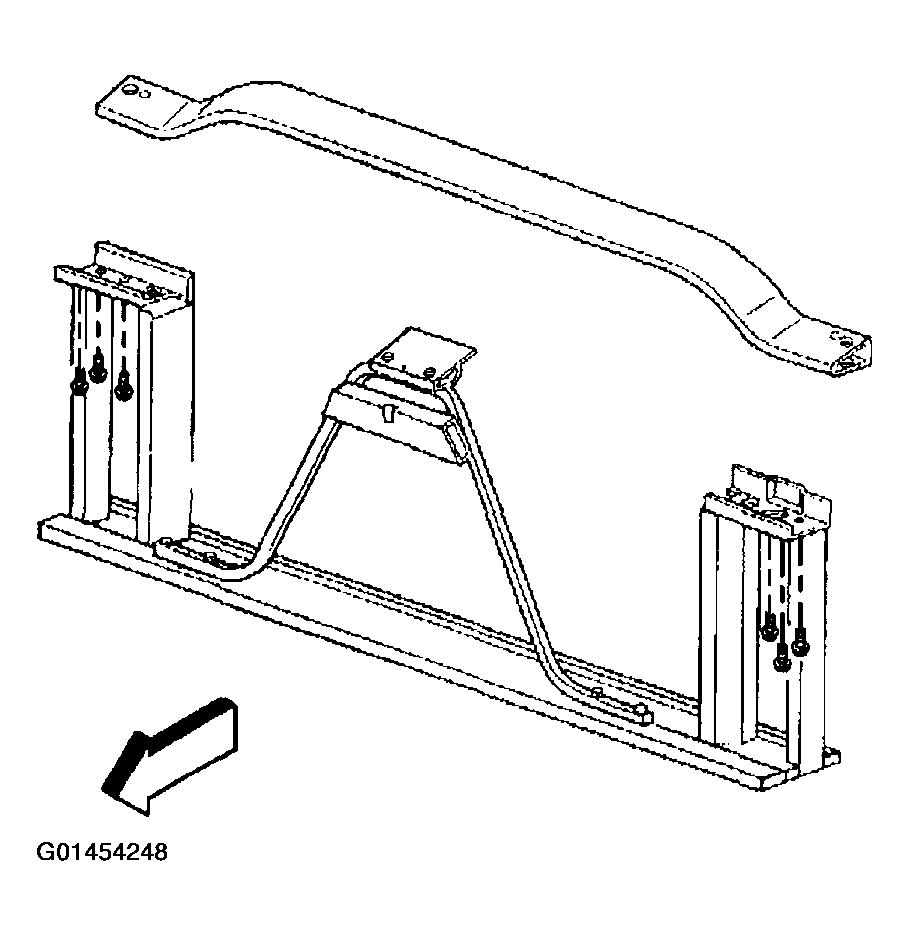

    Fig 2: Removing Lower Bolts From Hood Latch Support Bracket
    G01454248Courtesy of GENERAL MOTORS CORP.
  5. Remove the compressor discharge hose assembly bolt from the condenser.
  6. Disconnect the compressor discharge hose assembly from the condenser.

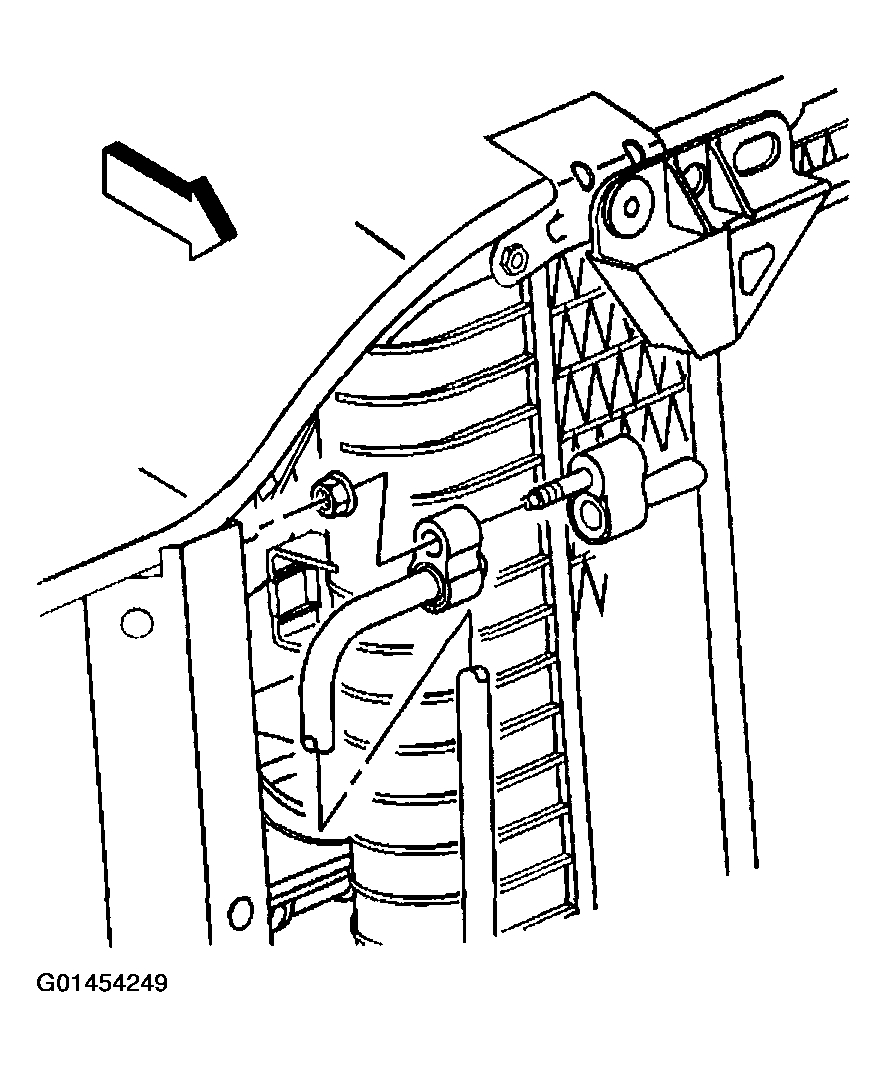

    Fig 3: Connecting Compressor Discharge Hose Assembly From Condenser
    G01454249Courtesy of GENERAL MOTORS CORP.
  7. Remove the evaporator tube nut from the condenser.
  8. Disconnect the evaporator tube from the condenser.

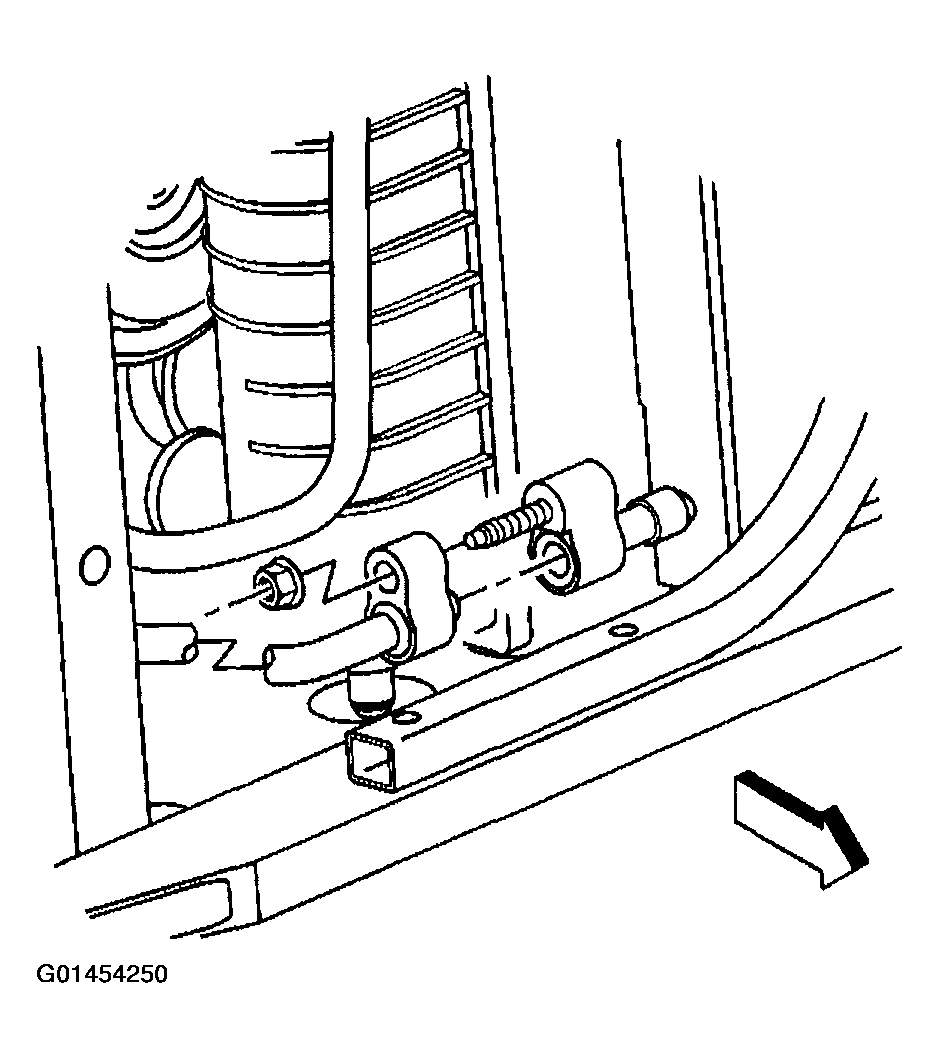

    Fig 4: Removing Evaporator Tube Nut From Condenser
    G01454250Courtesy of GENERAL MOTORS CORP.
  9. Remove the insulator retainer bolts and the upper insulator retainers.
  10. Remove the condenser from the vehicle.

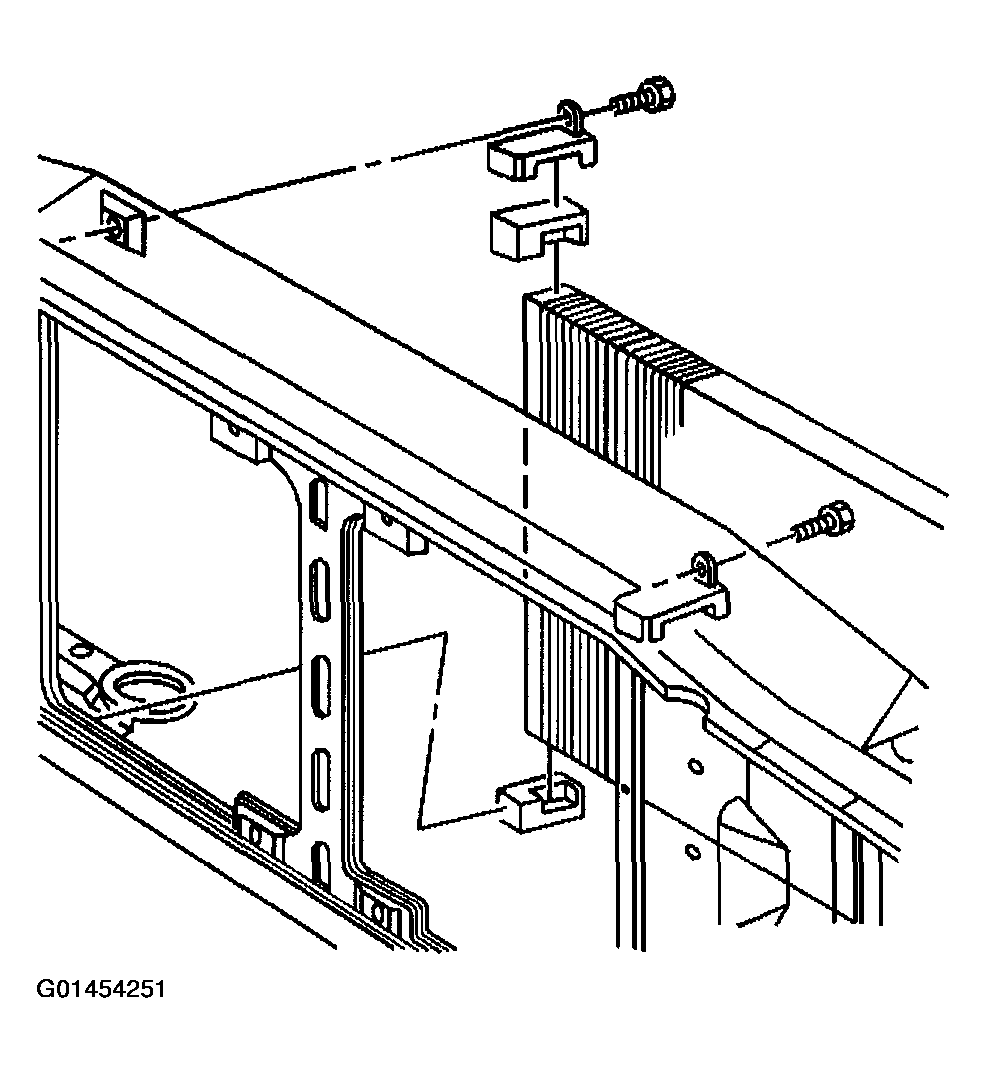

    Fig 5: Removing Insulator Retainer Bolts & Upper Insulator Retainers
    G01454251Courtesy of GENERAL MOTORS CORP.
