Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the A/C compressor (2) to the A/C bracket (1).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the A/C compressor mounting bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

  3. Connect the electrical connector to the A/C compressor.
  4. Install the A/C discharge hose to the compressor using new sealing washers. Refer to SEALING WASHER REPLACEMENT  .
  5. Install the A/C discharge hose bolt to the A/C compressor.

    Tighten

    Tighten the bolt to 16 N.m (12 lb ft).

  6. Install the A/C suction hose to the compressor using new sealing washers. Refer to SEALING WASHER REPLACEMENT  .
  7. Install the A/C suction hose bolt to the A/C compressor.

    Tighten

    Tighten the bolt to 16 N.m (12 lb ft).

  8. Install the intake air resonator replacement.
  9. Install the A/C drive belt. Refer to DRIVE BELT REPLACEMENT -- AIR CONDITIONING in Engine Mechanical - 4.8L, 5.3L, and 6.0L.
  10. Evacuate and recharge the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING  .
  11. Leak test the fittings of the component using the J 39400-A  .

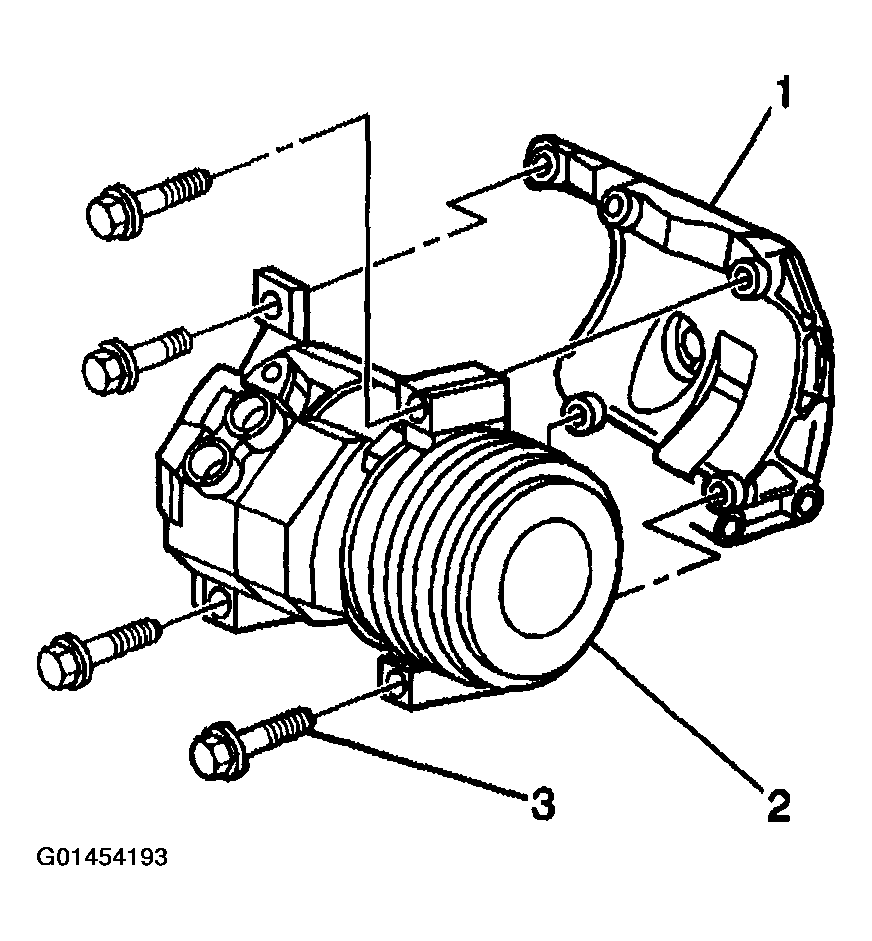

    Fig 1: Installing Compressor L18
    G01454193Courtesy of GENERAL MOTORS CORP.
