Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C compressor. Refer to COMPRESSOR REPLACEMENT (LR4, LM7, AND LQ4)  or COMPRESSOR REPLACEMENT (L18)  .
  2. Remove the A/C belt tensioner bolts.
  3. Remove the A/C belt tensioner.
  4. Remove the A/C compressor bracket mounting bolts.
  5. Remove the A/C compressor bracket.

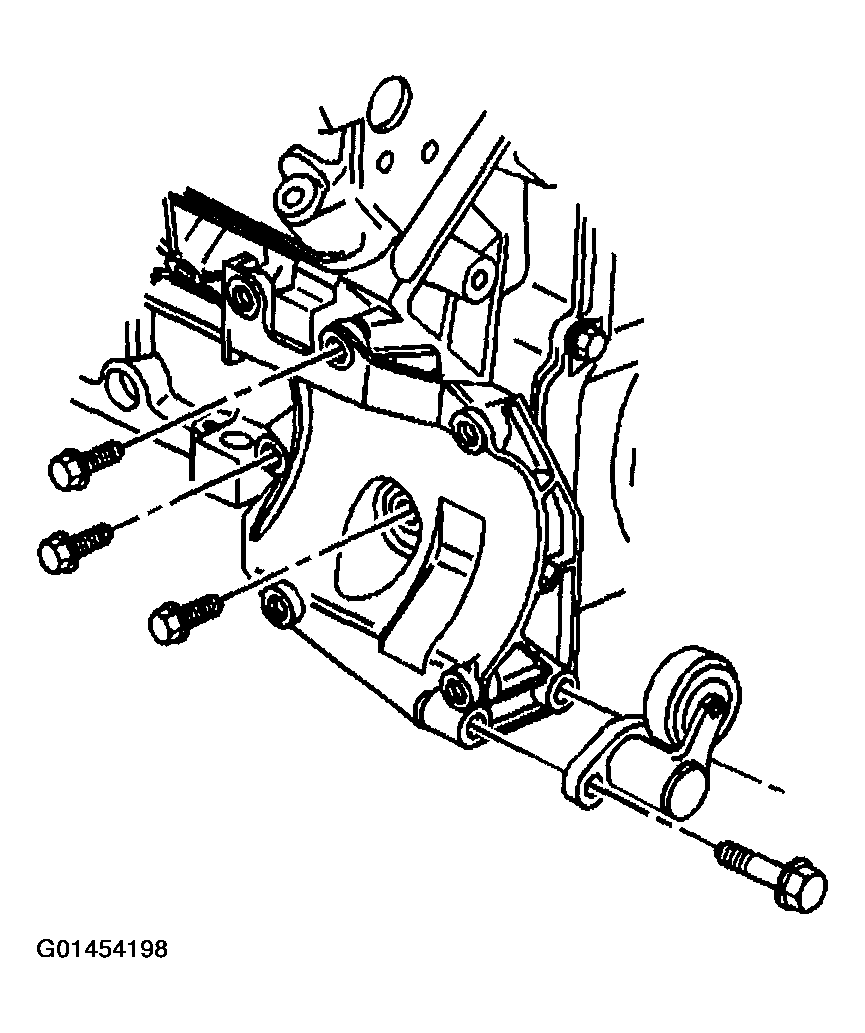

    Fig 1: Removing Compressor Mounting Bracket
    G01454198Courtesy of GENERAL MOTORS CORP.
