Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the A/C compressor bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the A/C compressor bracket mounting bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

  3. Install the A/C belt tensioner.
  4. Install the A/C belt tensioner bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

  5. Install the A/C compressor. Refer to COMPRESSOR REPLACEMENT (LR4, LM7, AND LQ4)  or COMPRESSOR REPLACEMENT (L18)  .

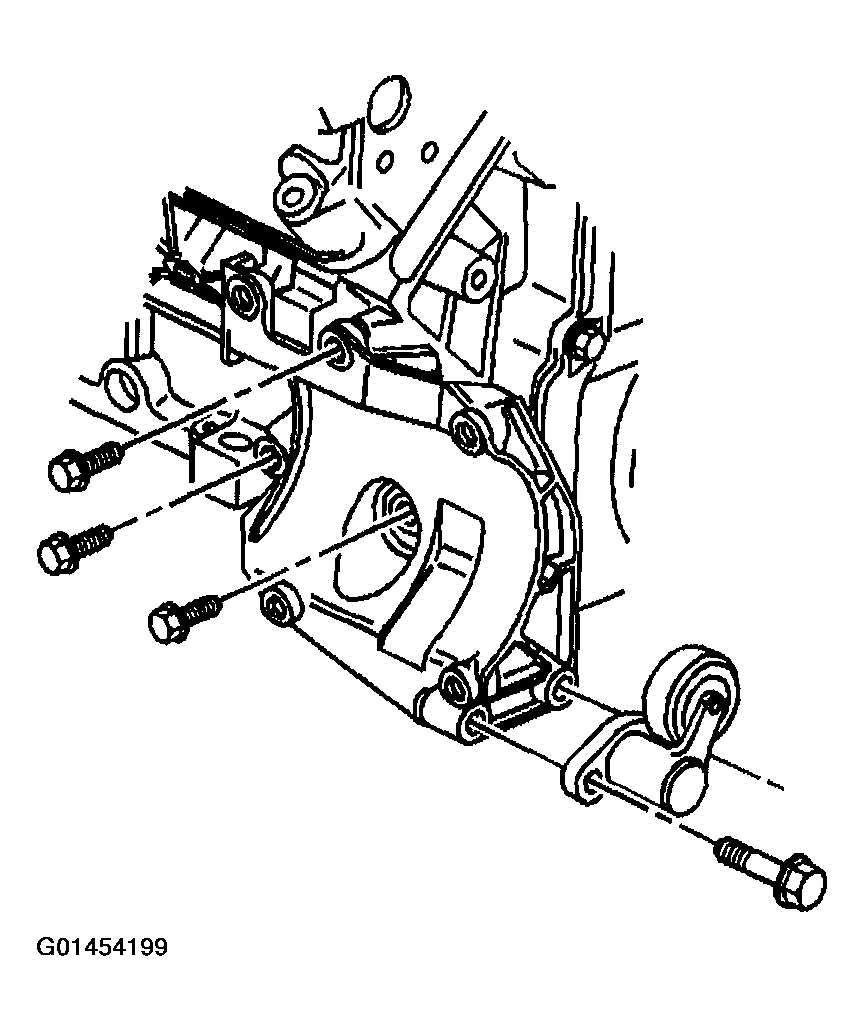

    Fig 1: Installing Compressor Mounting Bracket
    G01454199Courtesy of GENERAL MOTORS CORP.
