Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to in General Information.
  2. Remove the engine protection shield.
  3. Install a ratchet into the air conditioning (A/C) belt tensioner adapter opening.
  4. Rotate the A/C belt tensioner clockwise in order to relieve the tension on the belt.
  5. Remove the A/C belt from the A/C compressor.
  6. Slowly release the tension on the A/C belt tensioner.

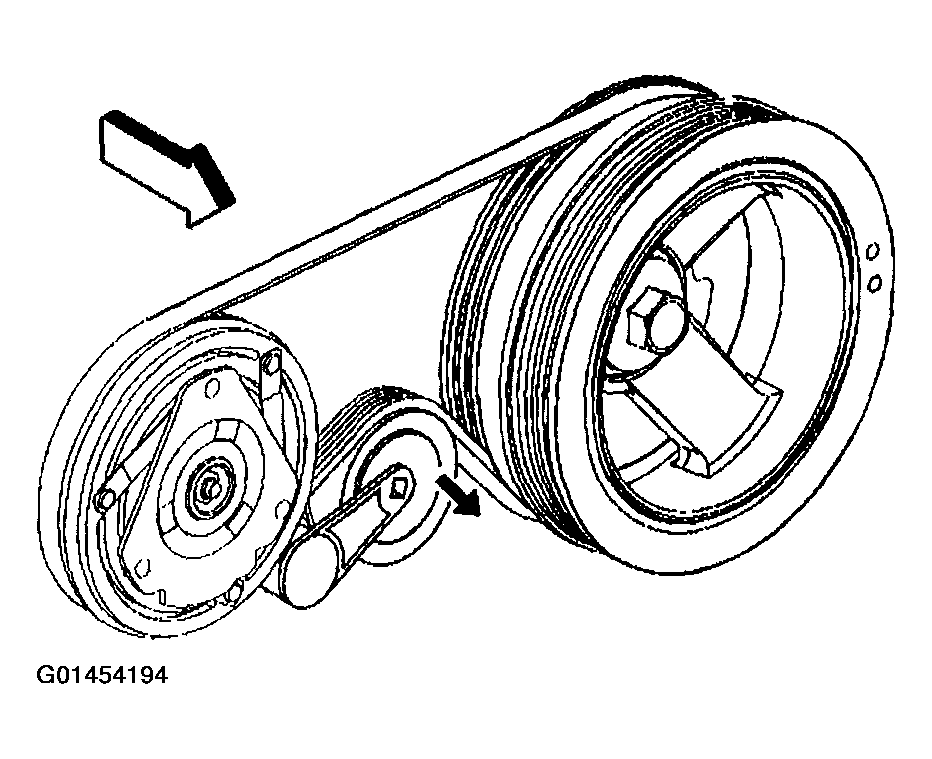

    Fig 1: Removing A/C Belt From A/C Compressor
    G01454194Courtesy of GENERAL MOTORS CORP.
  7. Remove the clutch plate retaining bolt (1).
  8. Remove the clutch plate assembly (2).
  9. Remove the clutch hub/bearing snap ring (3).
  10. Remove the clutch hub/bearing assembly (4).

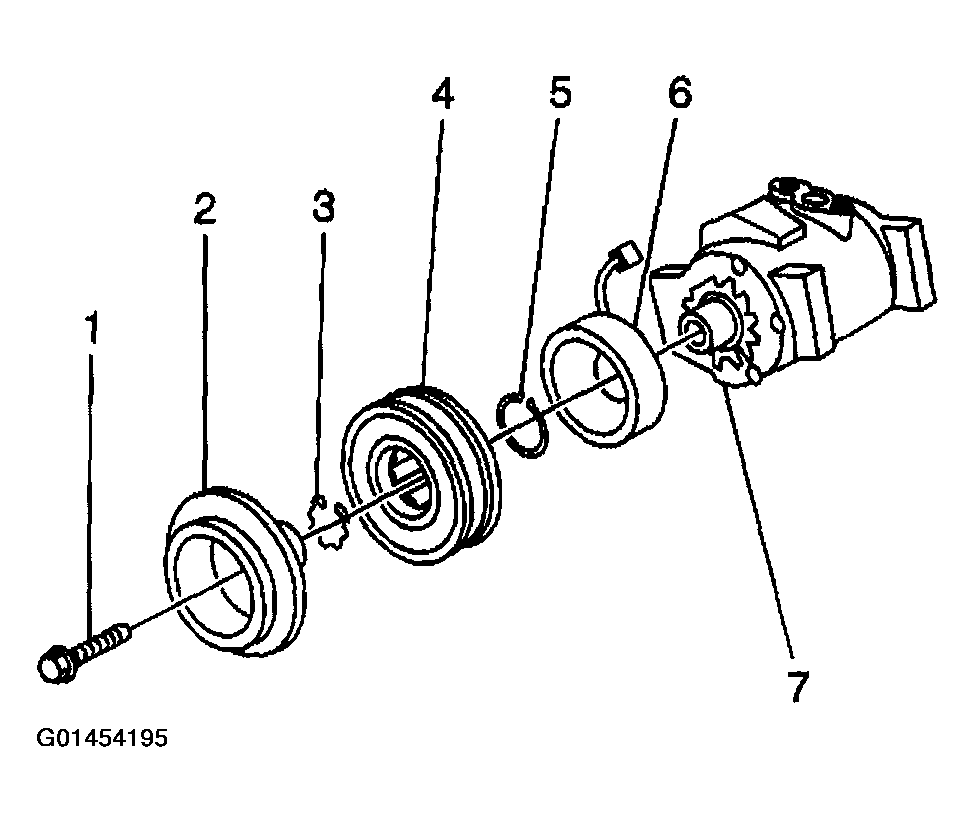

    Fig 2: Removing Compressor Clutch Plate/Hub Assembly
    G01454195Courtesy of GENERAL MOTORS CORP.
