Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the clutch hub/bearing assembly (4).
  2. Install the clutch hub/bearing snap ring (3).
  3. Install the clutch plate assembly (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the clutch plate retaining bolt (1).

    Tighten

    Tighten the bolt to 18 N.m (13 lb ft).

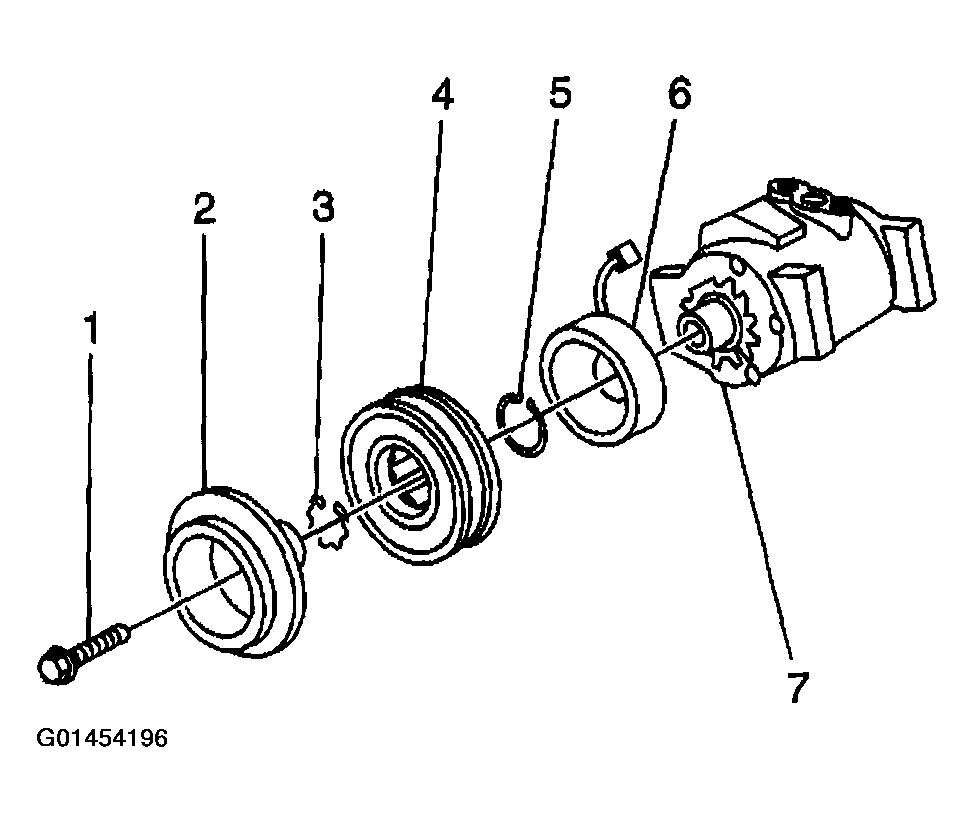

    Fig 1: Installing Compressor Clutch Plate/Hub Assembly
    G01454196Courtesy of GENERAL MOTORS CORP.
  5. Install a ratchet into the A/C belt tensioner adapter opening.
  6. Rotate the A/C belt tensioner clockwise in order to relieve the tension on the belt.
  7. Install the A/C belt to the A/C compressor.
  8. Slowly release the tension on the A/C belt tensioner.
  9. Remove the ratchet from the A/C belt tensioner.
  10. Install the engine protection shield.
  11. Lower the vehicle.

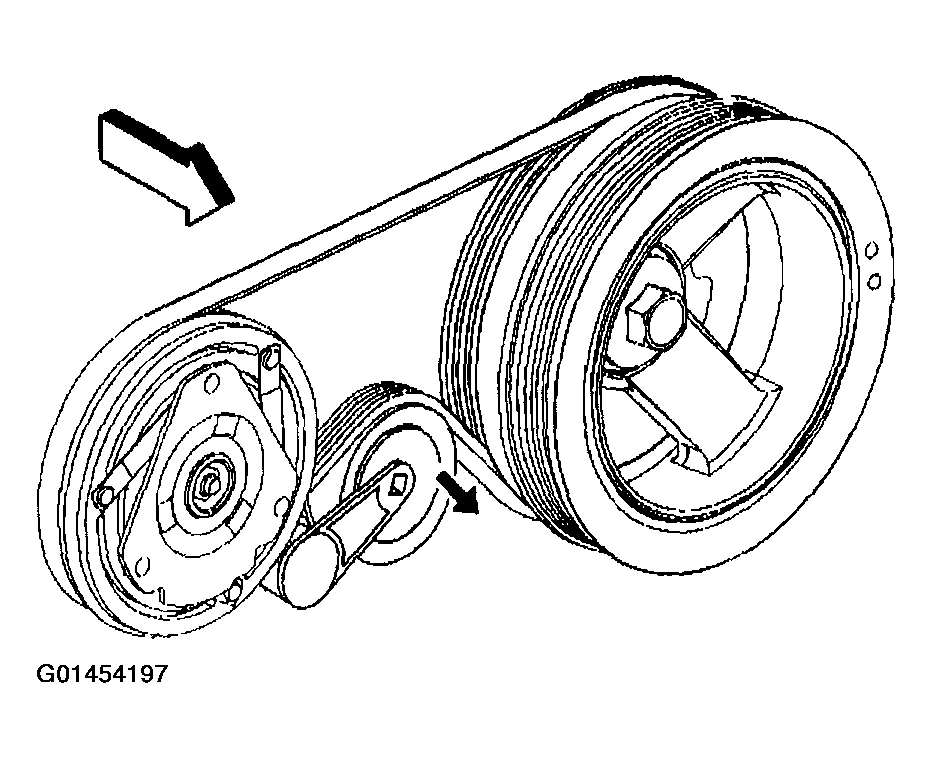

    Fig 2: Installing A/C Belt To A/C Compressor
    G01454197Courtesy of GENERAL MOTORS CORP.
