Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped, remove the IP sound insulator. Refer to INSULATOR REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages, and Console.
  2. Disconnect the electrical connection from the blower motor.
  3. Disconnect the electrical connection from the blower motor resistor.

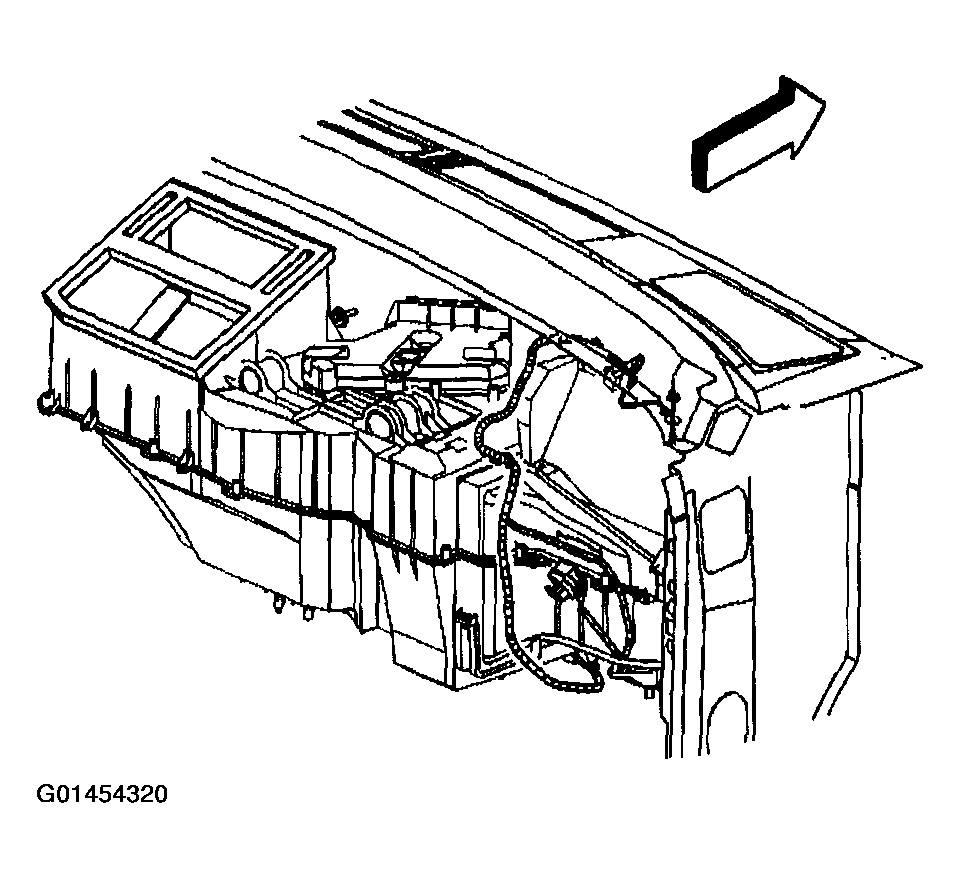

    Fig 1: Disconnecting Electrical Connection From Blower Motor
    G01454320Courtesy of GENERAL MOTORS CORP.
  4. Remove the blower motor resistor retaining screws.

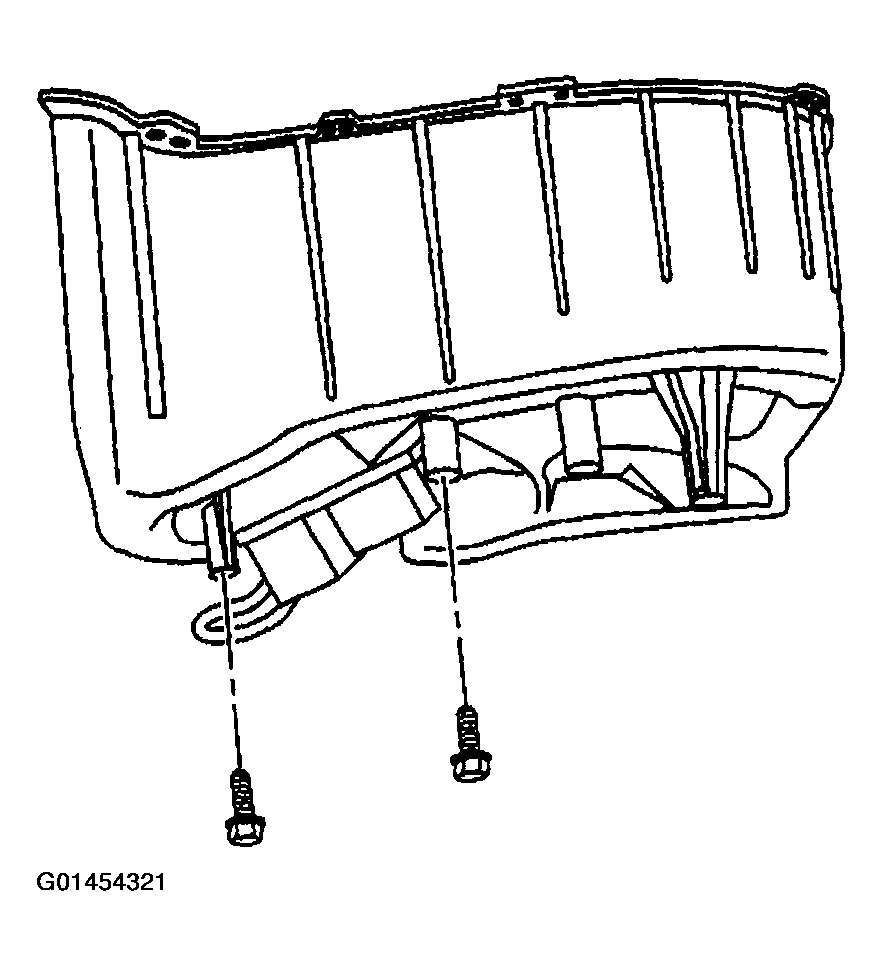

    Fig 2: Removing Blower Motor Resistor Retaining Screws
    G01454321Courtesy of GENERAL MOTORS CORP.
  5. Remove the blower motor resistor.

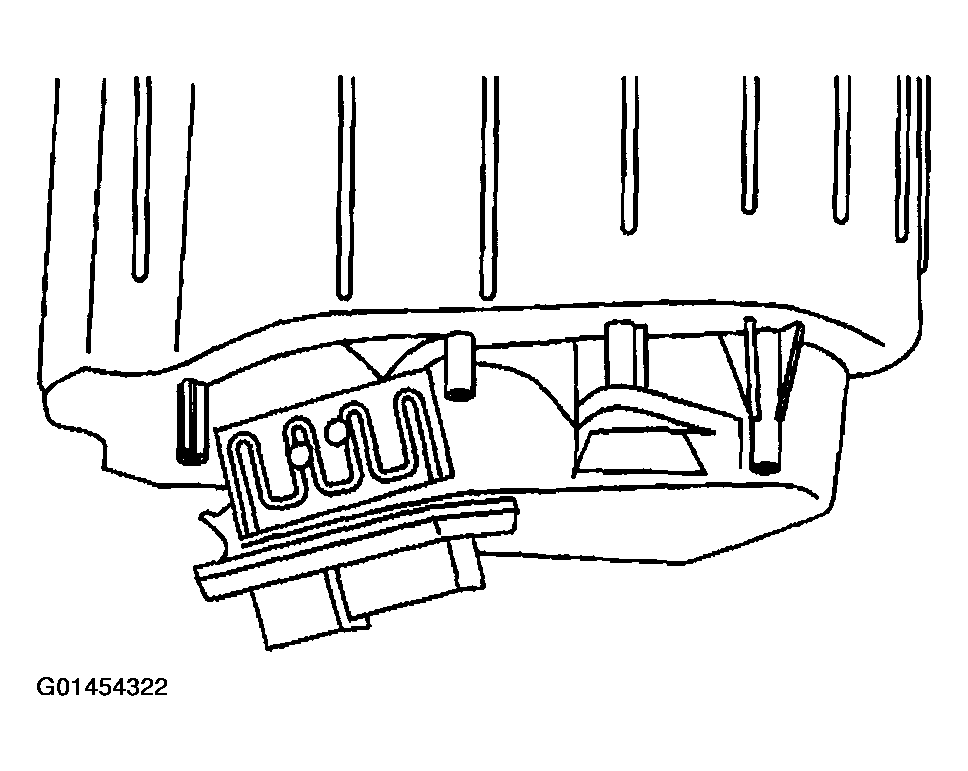

    Fig 3: Removing Blower Motor Resistor
    G01454322Courtesy of GENERAL MOTORS CORP.
