Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor resistor.

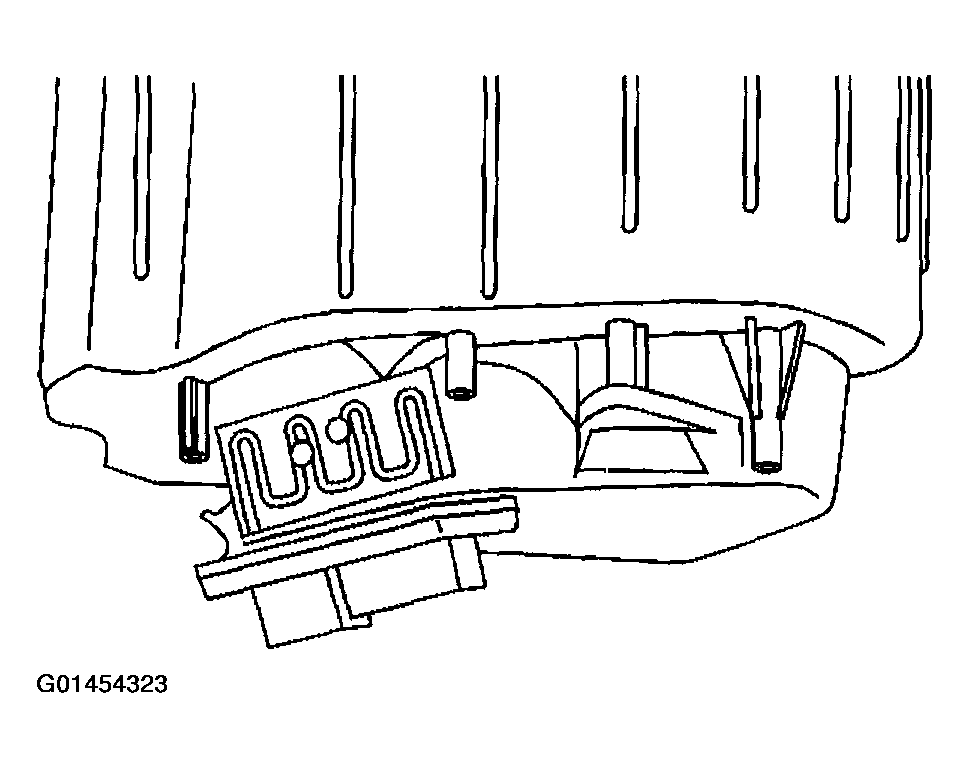

    Fig 1: Installing Blower Motor Resistor
    G01454323Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the blower motor resistor retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

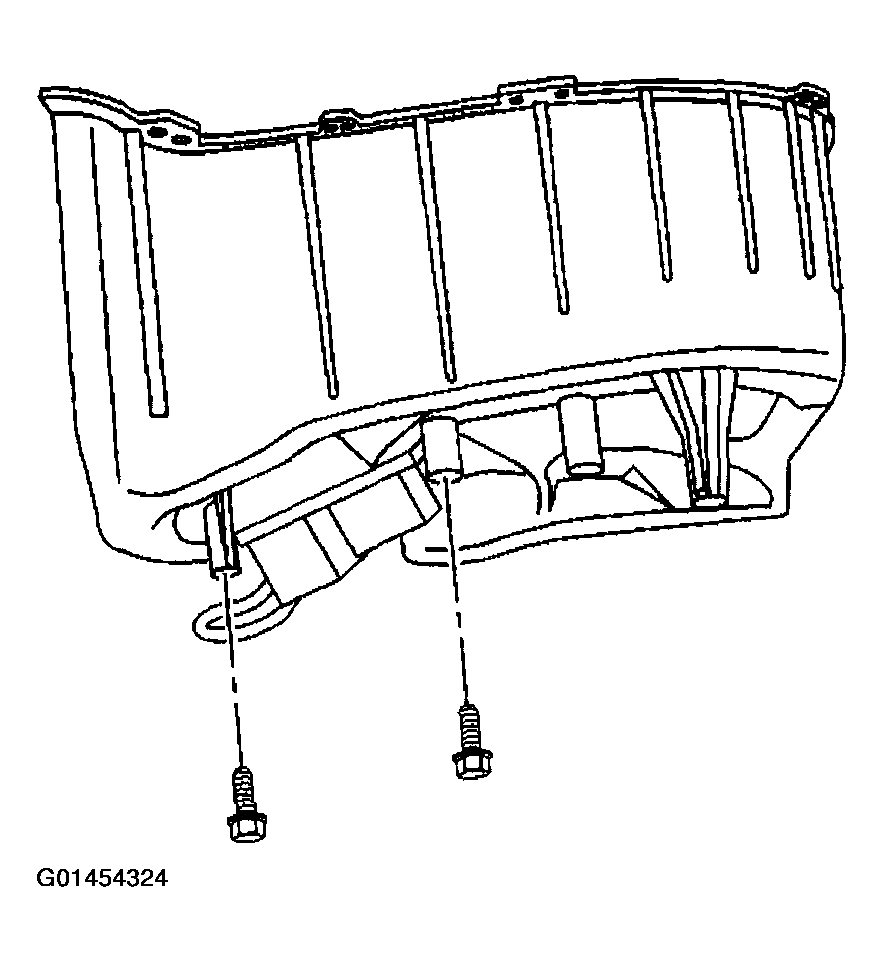

    Fig 2: Installing Blower Motor Resistor Retaining Screws
    G01454324Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connection to the blower motor resistor.
  4. Connect the electrical connection to the blower motor.
  5. If equipped, install the IP sound insulator. Refer to INSULATOR REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages, and Console.

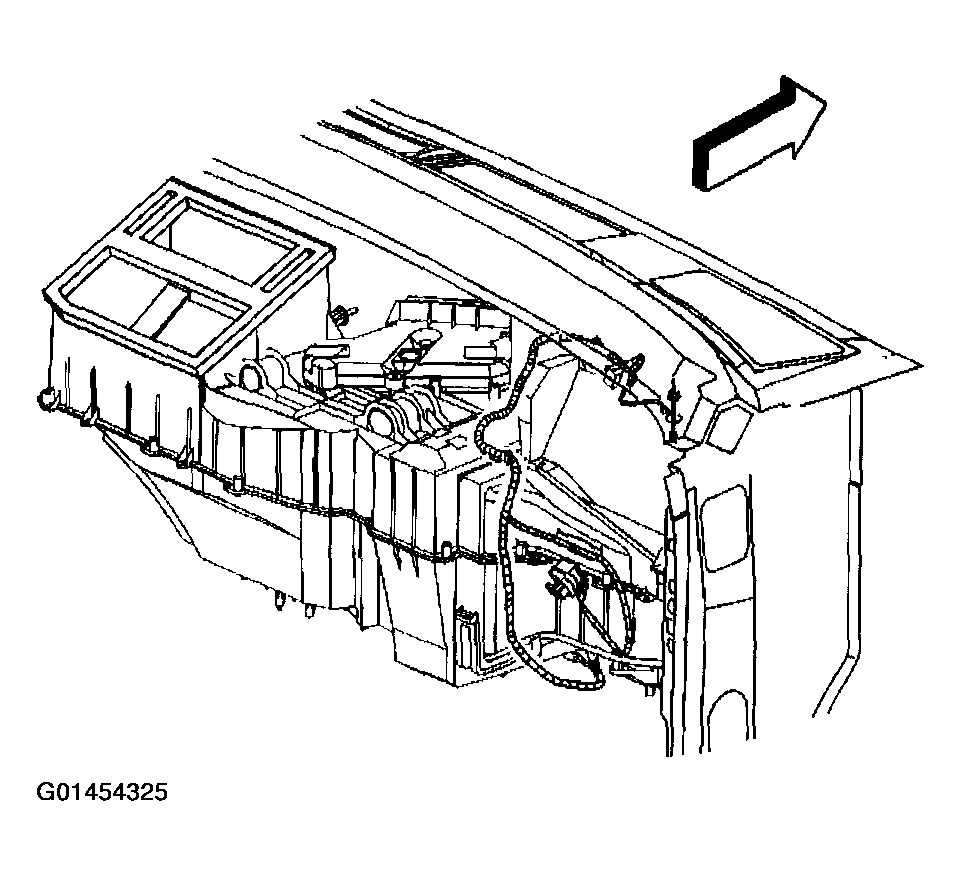

    Fig 3: Connecting Electrical Connection To Blower Motor
    G01454325Courtesy of GENERAL MOTORS CORP.
