Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (UTILITY) or TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (SUBURBAN) in Interior Trim.
  2. Disconnect the electrical connectors.
  3. Remove the blower motor screws.
  4. Remove the blower motor (1) from the auxiliary HVAC module (2).
  5. Remove the retaining clip from the fan cage.
  6. Remove the fan cage from the blower motor.

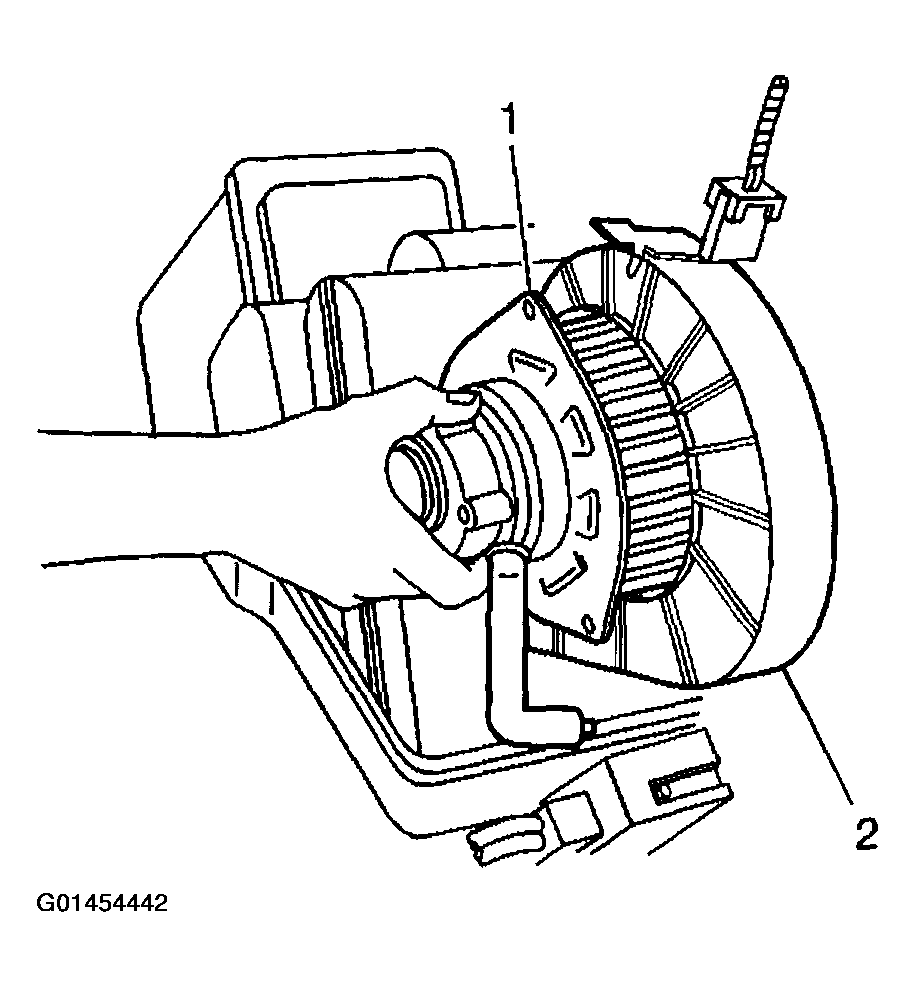

    Fig 1: Removing Blower Motor - Auxiliary
    G01454442Courtesy of GENERAL MOTORS CORP.
