Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sound insulator panel. Refer to INSULATOR REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages, and Console.
  2. Disconnect the electrical connector (2) from the blower motor (1)
  3. Remove the screws from the blower motor (1).
  4. Remove the blower motor (1) from the HVAC module (3).
  5. Remove the retainer from the blower motor wheel. Discard the retainer.
  6. Remove the blower motor wheel from the blower motor (1).

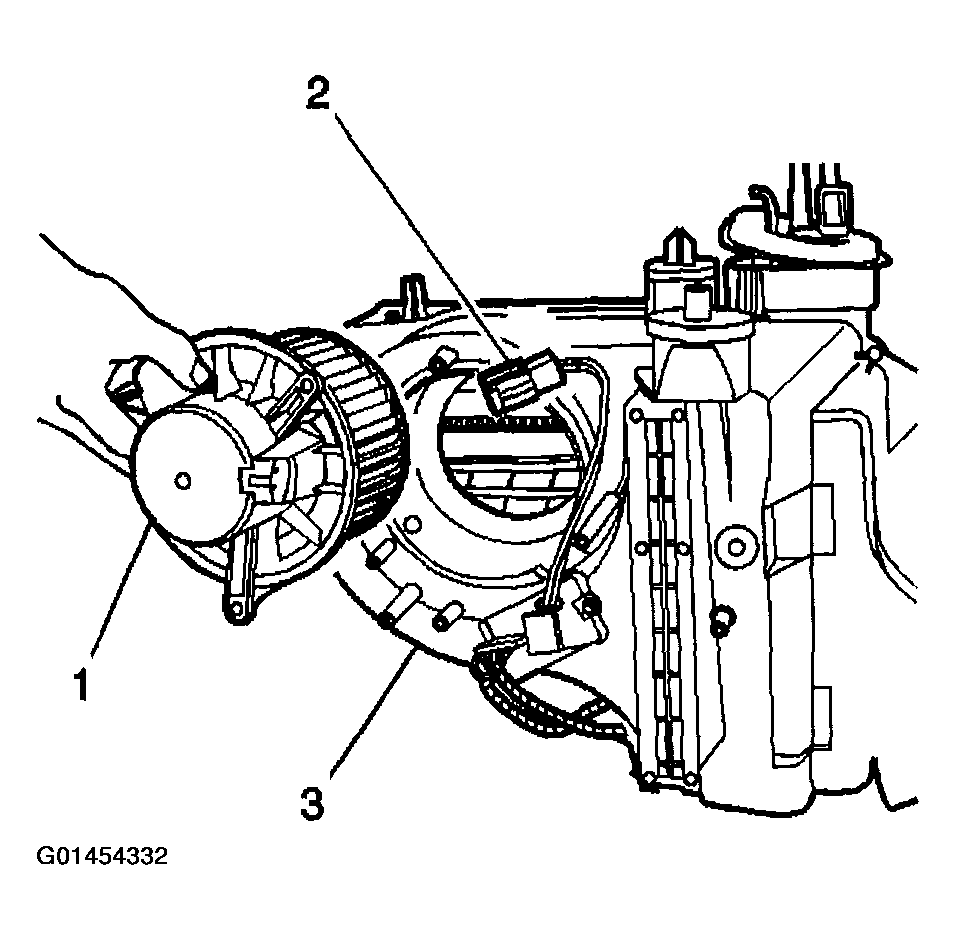

    Fig 1: Removing Blower Motor - Visteon
    G01454332Courtesy of GENERAL MOTORS CORP.
