Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor wheel to the blower motor (1).
  2. Install the New retainer to the blower motor wheel.
  3. Install the blower motor (1) to the HVAC module (3).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the screws to the blower motor (1).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  5. Connect the electrical connector (2) to the blower motor (1).
  6. Install the sound insulator panel. Refer to INSULATOR REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages, and Console.

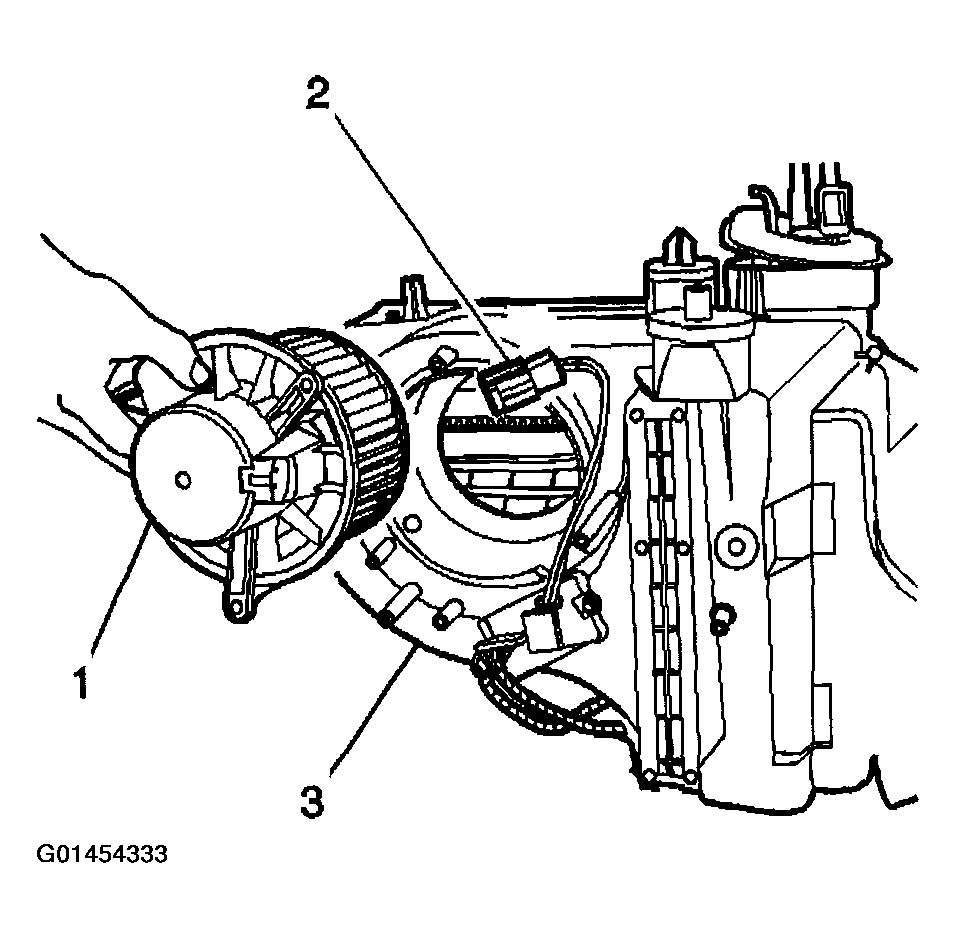

    Fig 1: Installing Blower Motor - Visteon
    G01454333Courtesy of GENERAL MOTORS CORP.
