Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped, remove the sound insulator panel. Refer to INSULATOR REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages, and Console.
  2. Remove the blower motor insulating cover screws.
  3. Disconnect the electrical connector from the blower motor.
  4. Remove the blower motor insulating cover.

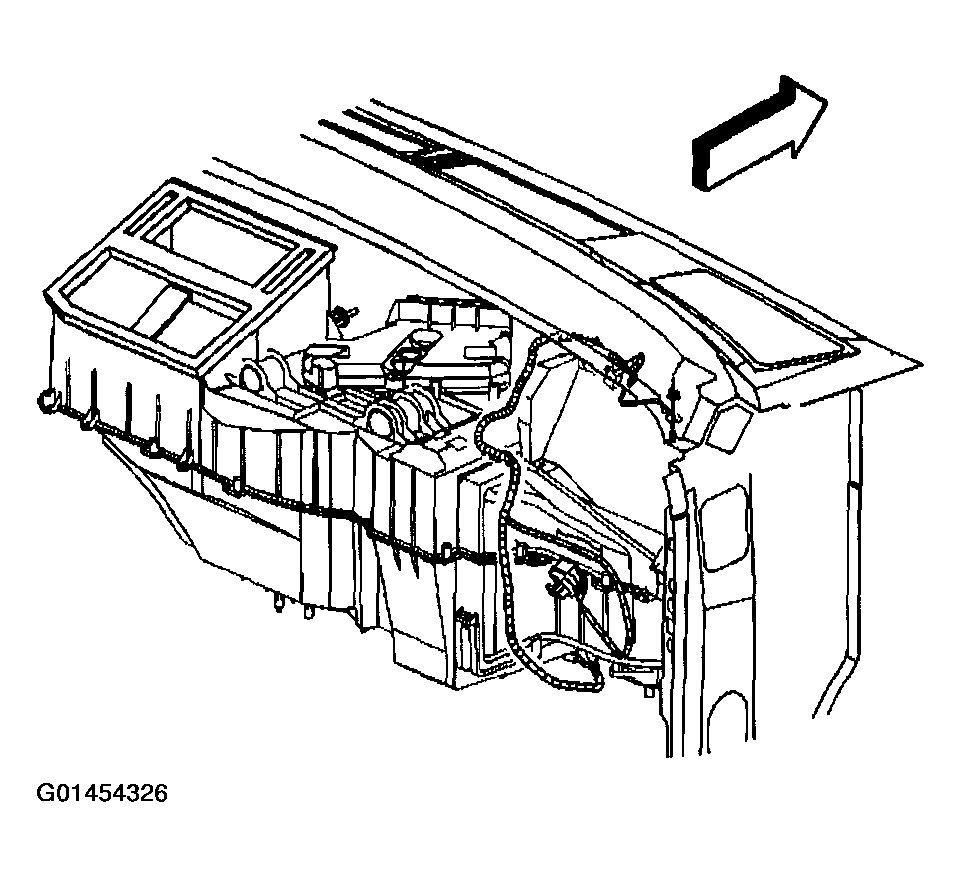

    Fig 1: Disconnecting Electrical Connection From Blower Motor
    G01454326Courtesy of GENERAL MOTORS CORP.
  5. Pull the retaining tab down while turning the blower motor counterclockwise in order to disengage the blower motor from the heater/ventilation module.

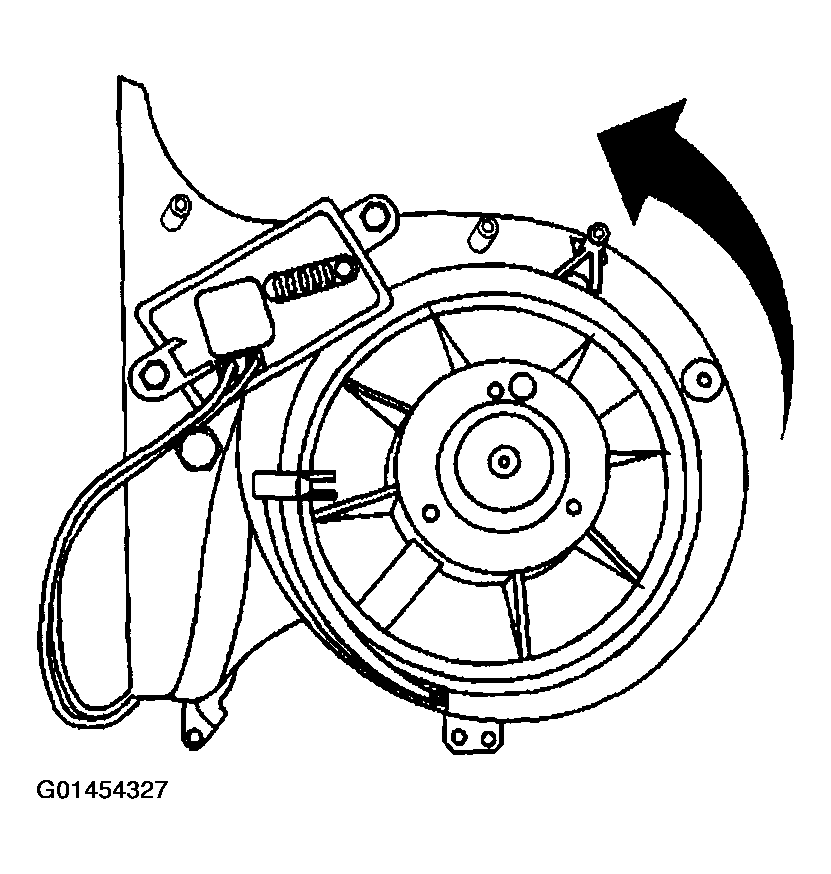

    Fig 2: Turning Blower Motor Counterclockwise
    G01454327Courtesy of GENERAL MOTORS CORP.
  6. Remove the blower motor.

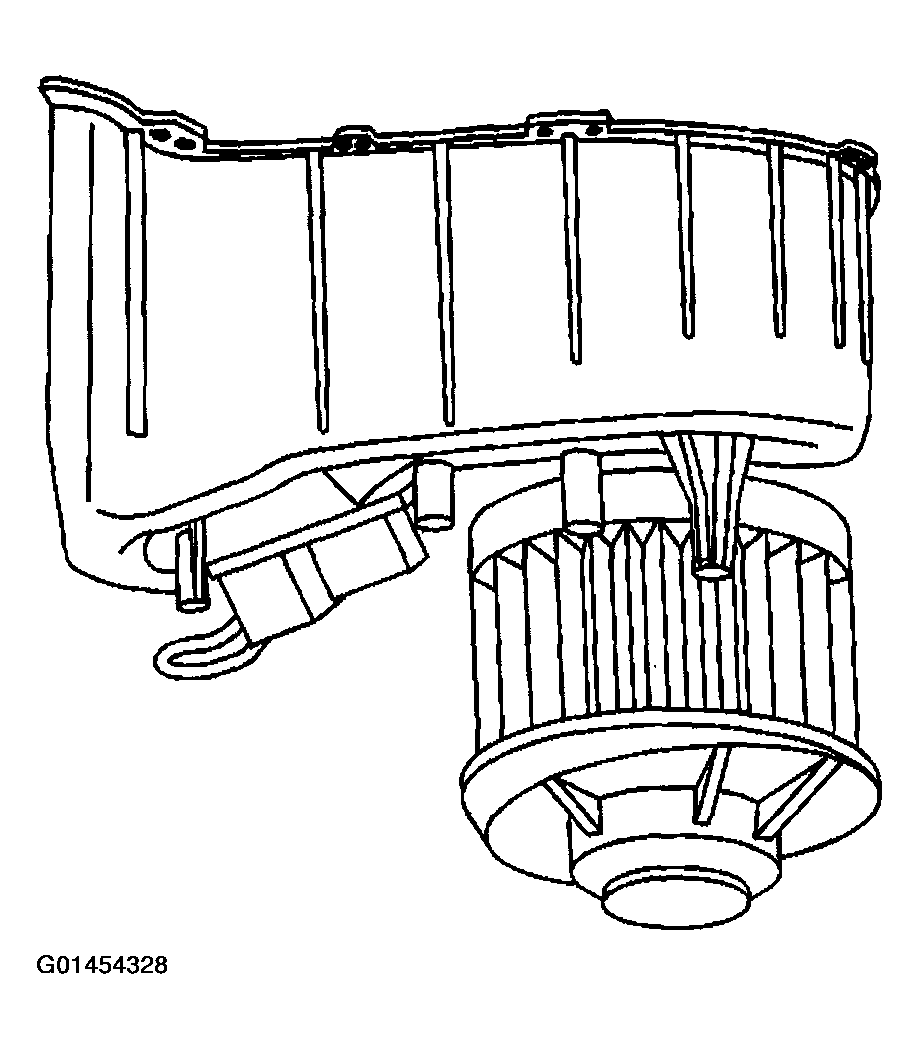

    Fig 3: Removing Blower Motor
    G01454328Courtesy of GENERAL MOTORS CORP.
