Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor.

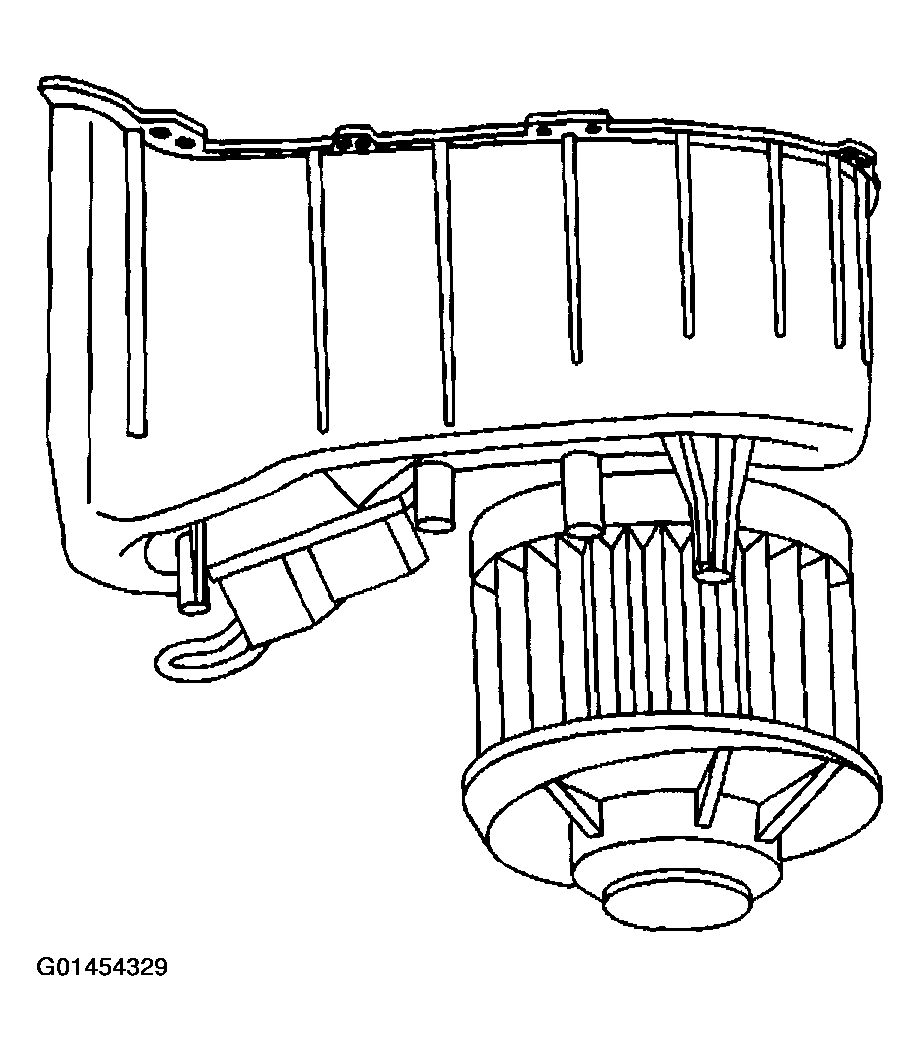

    Fig 1: Installing Blower Motor
    G01454329Courtesy of GENERAL MOTORS CORP.
  2. Install the blower motor to the heater/ventilation module. Turn the blower assembly clockwise until the retaining tab locks into place.
  3. Install the blower motor insulating cover.

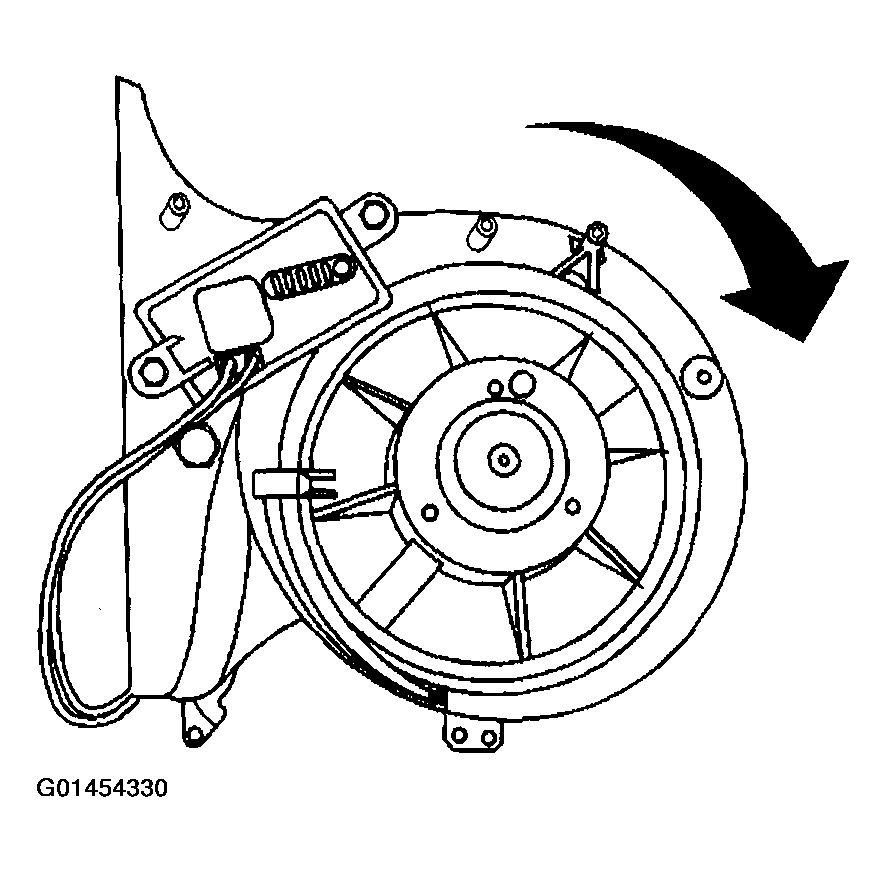

    Fig 2: Turning Blower Motor Clockwise
    G01454330Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the blower motor.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the blower motor insulating cover screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  6. If equipped, install the sound insulator panel. Refer to INSULATOR REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gages, and Console.

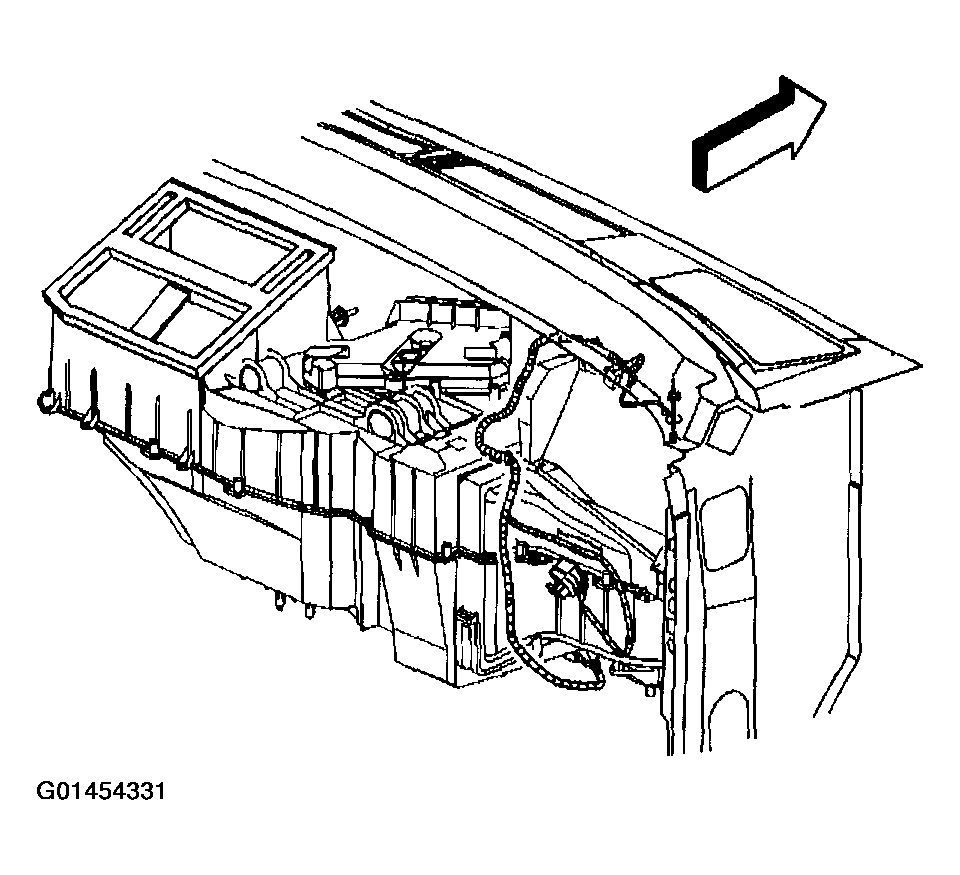

    Fig 3: Connecting Electrical Connection To Blower Motor
    G01454331Courtesy of GENERAL MOTORS CORP.
