Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right temperature door (2) to the upper HVAC module case (1).

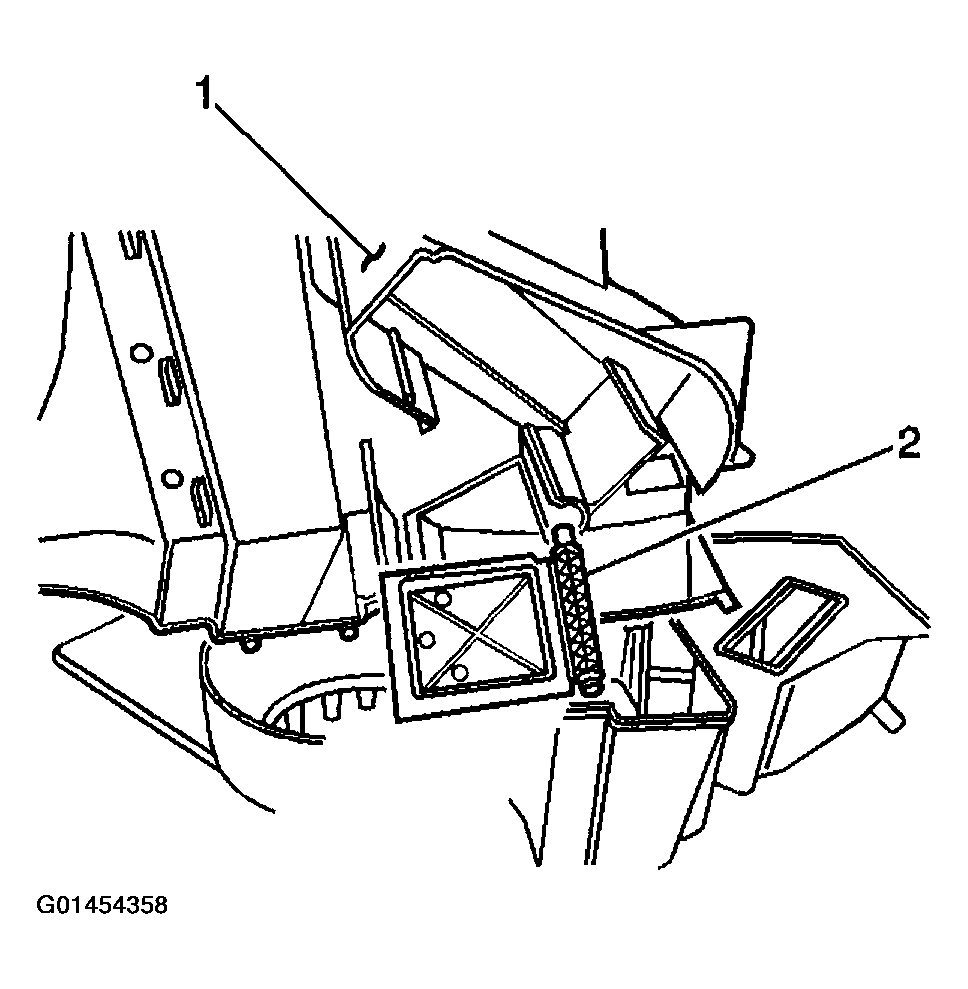

    Fig 1: Installing Right Temperature Door To Upper HVAC Module Case
    G01454358Courtesy of GENERAL MOTORS CORP.
  2. Install the upper HVAC module case (1) to the lower HVAC module case (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws to the HVAC module.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the wiring harness to the HVAC module.

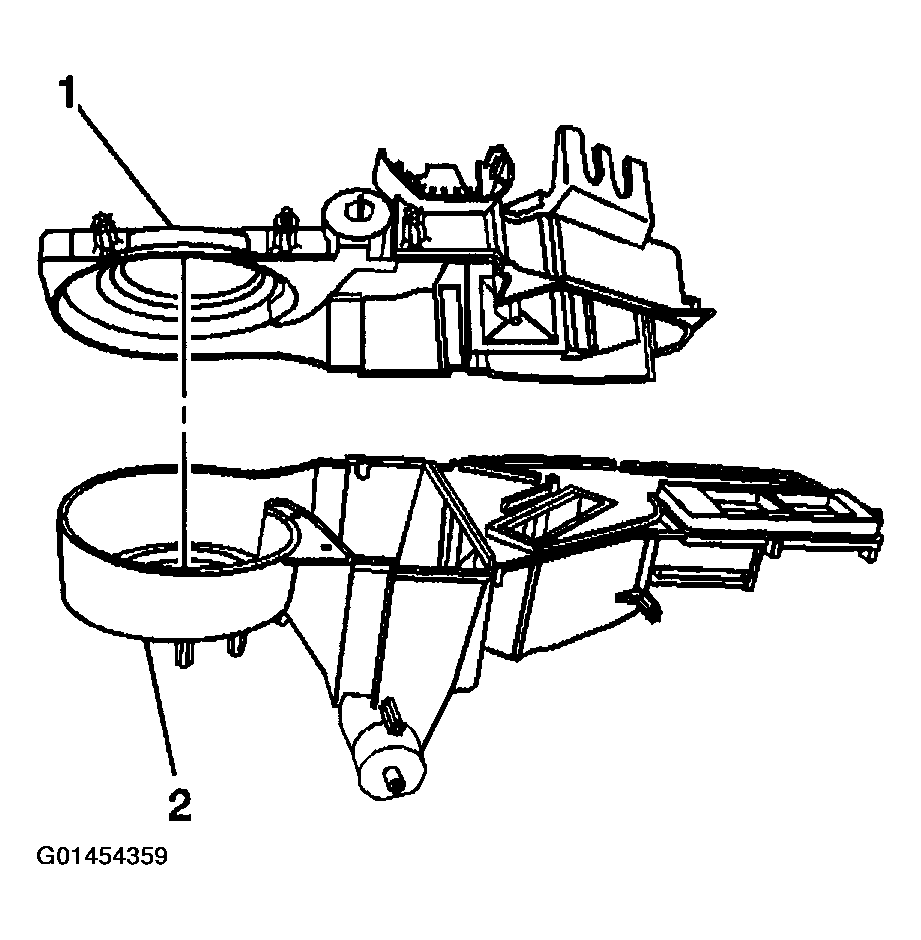

    Fig 2: Installing Upper HVAC Module Case To Lower HVAC Module Case
    G01454359Courtesy of GENERAL MOTORS CORP.
  5. Install the lower recirculation housing (1) to the HVAC module (2).
  6. Install the screws to the lower recirculation housing (1).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

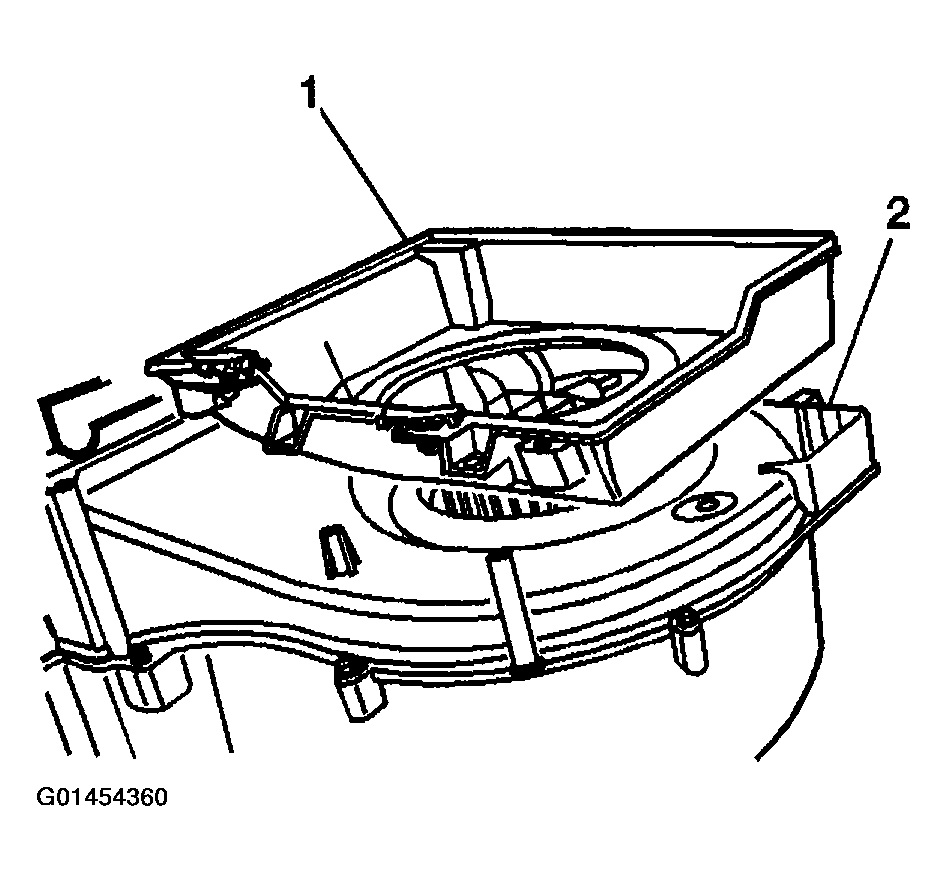

    Fig 3: Installing Lower Recirculation Housing To HVAC Module
    G01454360Courtesy of GENERAL MOTORS CORP.
  7. Install the upper recirculation housing (1) to the HVAC module (2).
  8. Install the screws to the upper recirculation housing (1).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

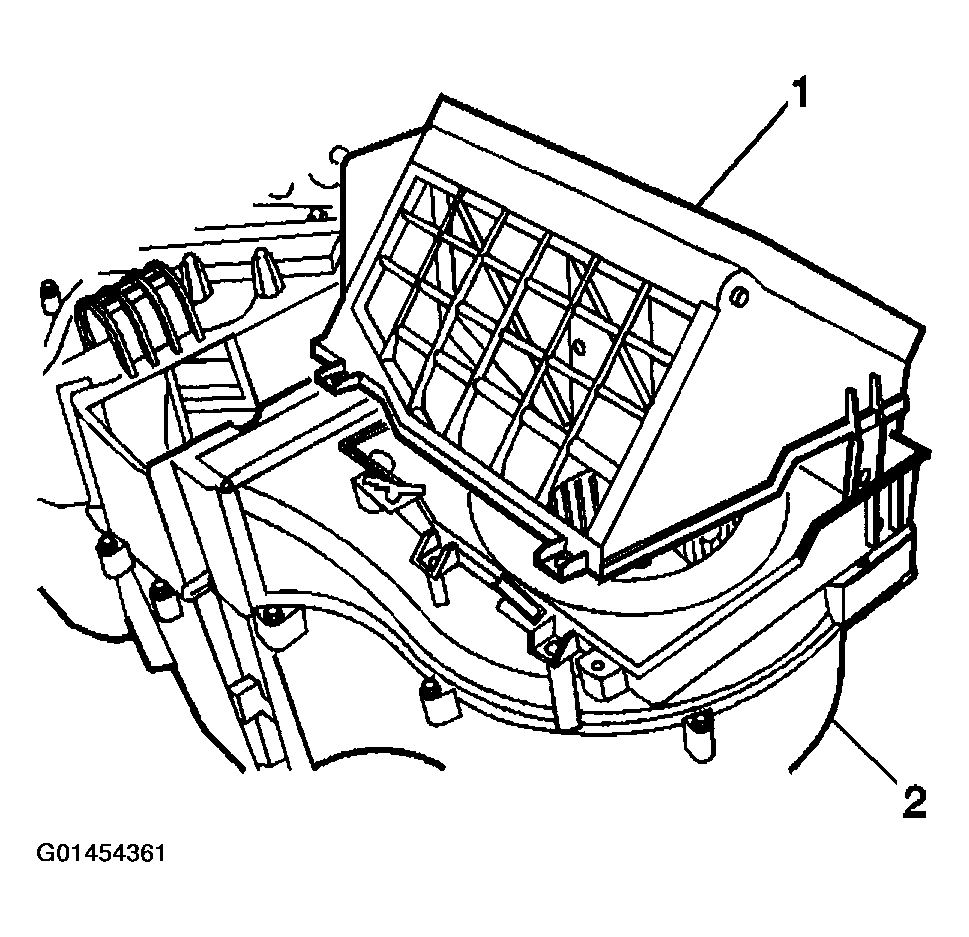

    Fig 4: Installing Upper Recirculation Housing To HVAC Module
    G01454361Courtesy of GENERAL MOTORS CORP.
  9. Install the air distribution housing (1) to the HVAC module (2).
  10. Install the screws to the air distribution housing (1).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  11. Install the wiring harness to the air distribution housing (1).

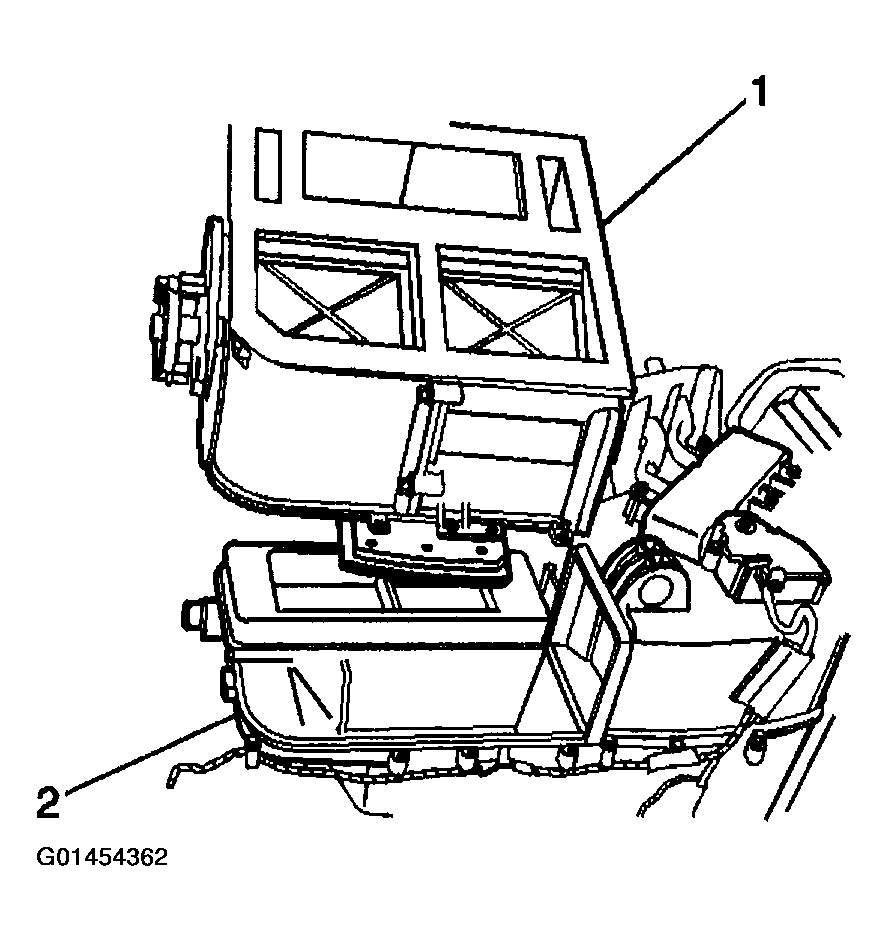

    Fig 5: Installing Air Distribution Housing To HVAC Module
    G01454362Courtesy of GENERAL MOTORS CORP.
  12. Install the mode actuator (4) to the HVAC module (1).
  13. Install the screws to the mode actuator (4).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  14. Connect the electrical connector (3) to the mode actuator (4).
  15. Install the HVAC module. Refer to HVAC MODULE ASSEMBLY REPLACEMENT  .

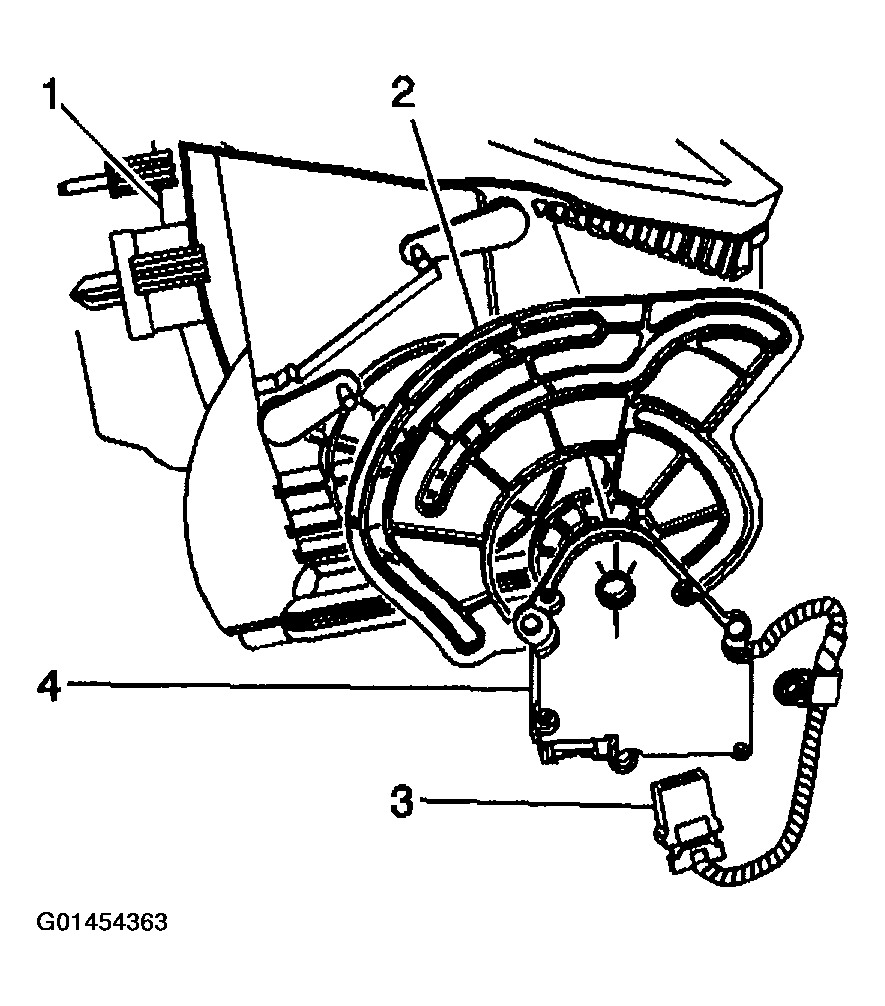

    Fig 6: Connecting Electrical Connector To Mode Actuator
    G01454363Courtesy of GENERAL MOTORS CORP.
