Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left temperature door (11) to the lower HVAC module case (10).
  2. Install the air temperature separator plate (5) to the lower HVAC module case (10).
  3. Install the upper HVAC module case (3) to the lower HVAC module case (10).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

    Important:  For every heat stake removed ensure that you install a screw.

  4. Install the screws to the HVAC module assembly.

    Tighten:

    Tighten the screws to 1.6 N.m (14 lb in).

  5. Install the HVAC module. Refer to HVAC MODULE ASSEMBLY REPLACEMENT  .

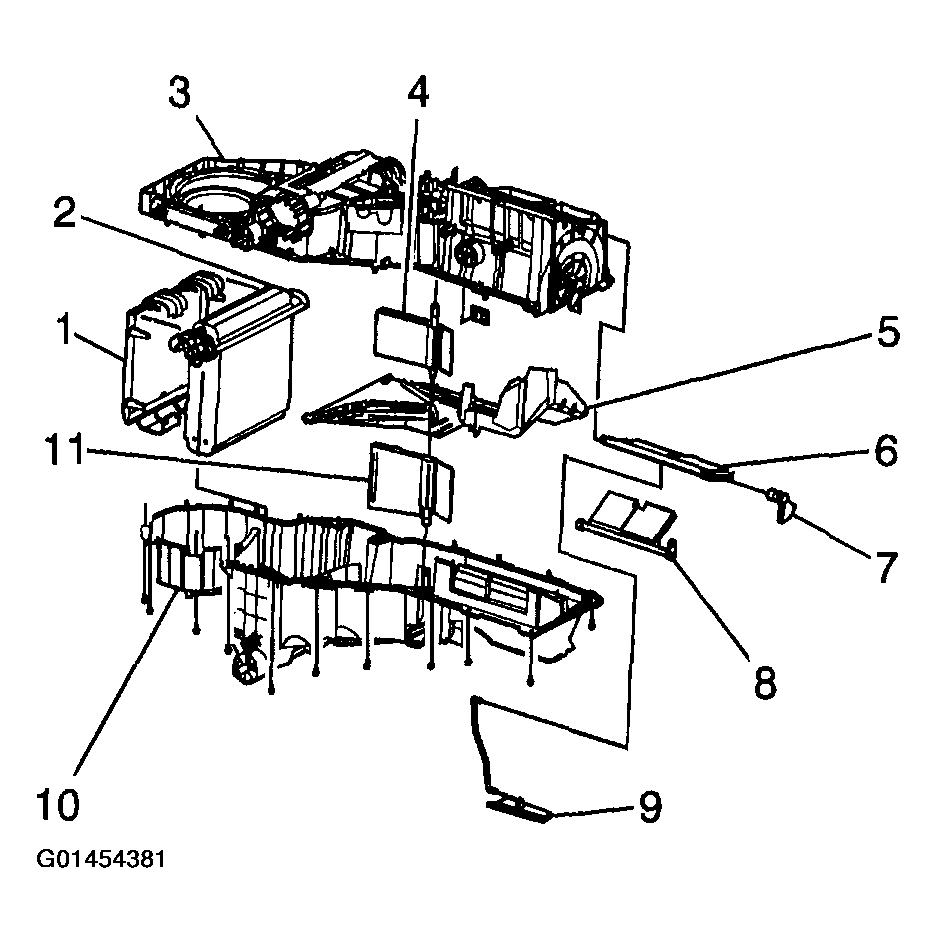

    Fig 1: Installing Air Temperature Door - Left - Delphi
    G01454381Courtesy of GENERAL MOTORS CORP.
