Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor console. Refer to CONSOLE REPLACEMENT (WITH CONSOLE MOUNTING BRACKET) or CONSOLE REPLACEMENT (W/O CONSOLE MOUNTING BRACKET) in Instrument Panel, Gages, and Console.
  2. Remove the seats. Refer to SEAT REPLACEMENT - CENTER in Seats.
  3. Remove the HVAC module assembly. Refer to HVAC MODULE ASSEMBLY REPLACEMENT  .
  4. Roll the carpeting back to expose the rear floor air ducts.
  5. Remove the rear floor ducts from the floor studs.
    Fig 1: Removing Rear Floor Ducts From Floor Studs
    G01454344Courtesy of GENERAL MOTORS CORP.
  6. Remove the rear floor duct.

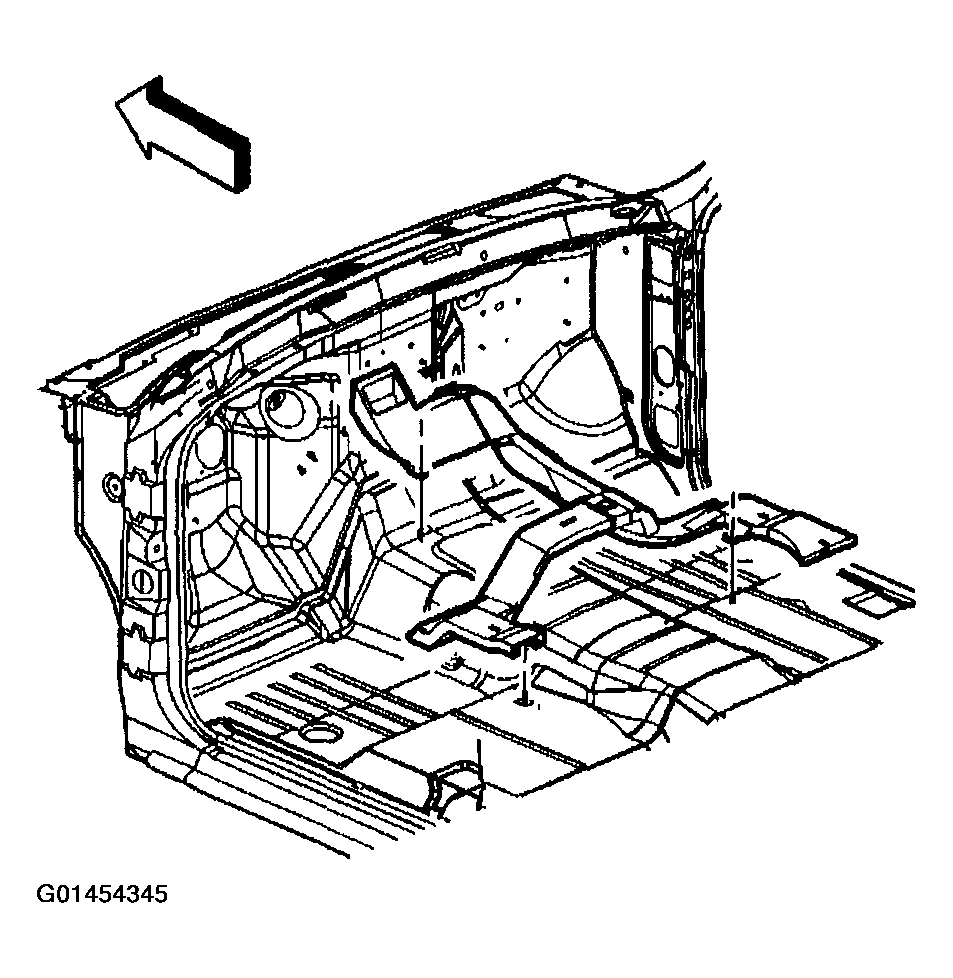

    Fig 2: Removing Rear Floor Duct
    G01454345Courtesy of GENERAL MOTORS CORP.
