Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear floor air duct.

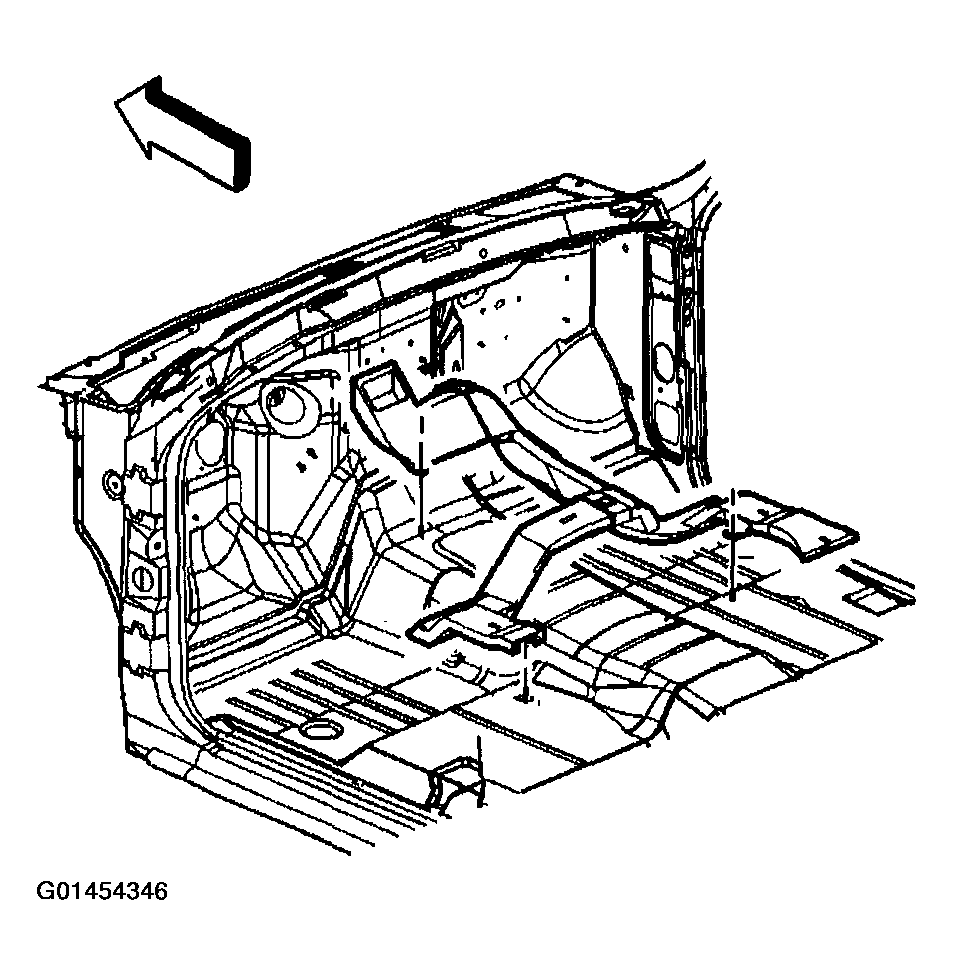

    Fig 1: Installing Rear Floor Duct
    G01454346Courtesy of GENERAL MOTORS CORP.
  2. Install the rear floor ducts from the floor studs.
  3. Position the carpeting back into place.
  4. Install the HVAC module assembly. Refer to HVAC MODULE ASSEMBLY REPLACEMENT  .
  5. Install the seats. Refer to SEAT REPLACEMENT - CENTER in Seats.
  6. Install the floor console. Refer to CONSOLE REPLACEMENT (WITH CONSOLE MOUNTING BRACKET) or CONSOLE REPLACEMENT (W/O CONSOLE MOUNTING BRACKET) in Instrument Panel, Gages, and Console.
    Fig 2: Installing Rear Floor Ducts To Floor Studs
    G01454347Courtesy of GENERAL MOTORS CORP.
