Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the left floor air outlet duct (1) to the HVAC module (2).
  2. Install the push pin (2) to the left floor air outlet duct.

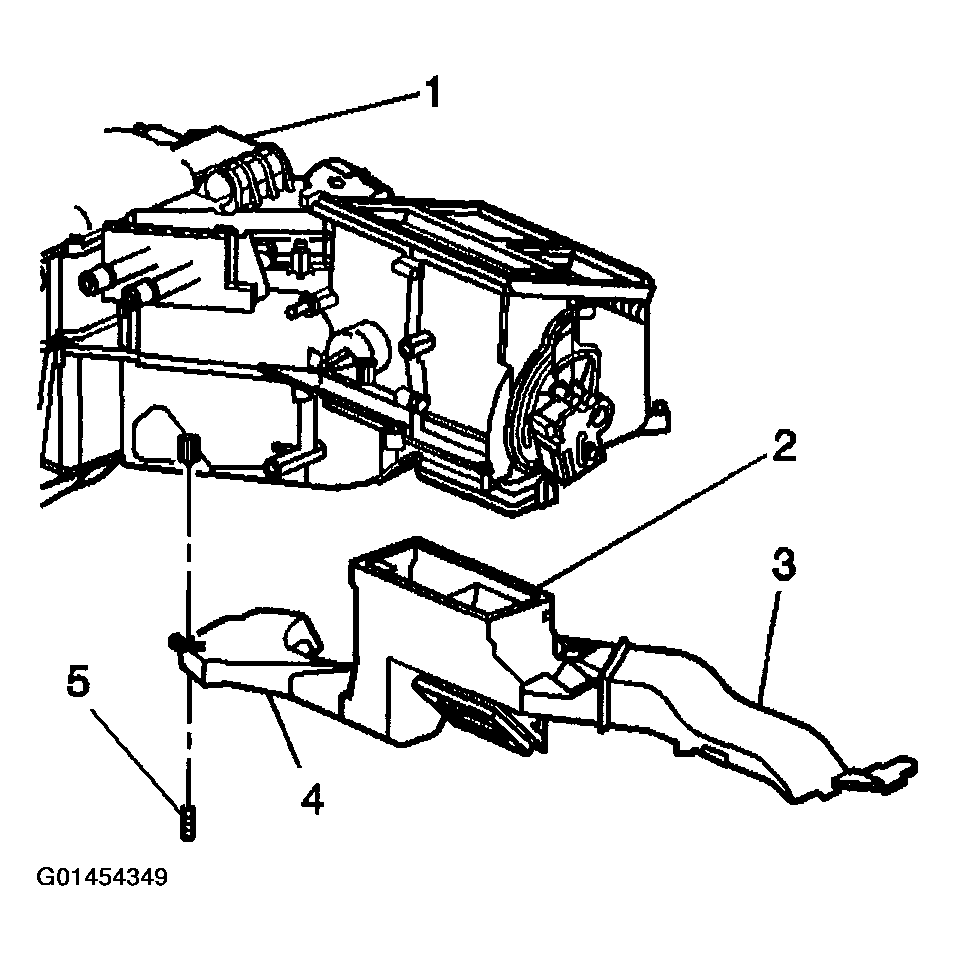

    Fig 1: Installing Air Outlet Duct - Floor, LH
    G01454349Courtesy of GENERAL MOTORS CORP.
