Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages, and Console.
  2. Remove the screws (3) from the air distribution duct (1).
  3. Remove the air distribution duct (1) from the I/P trim panel (2).

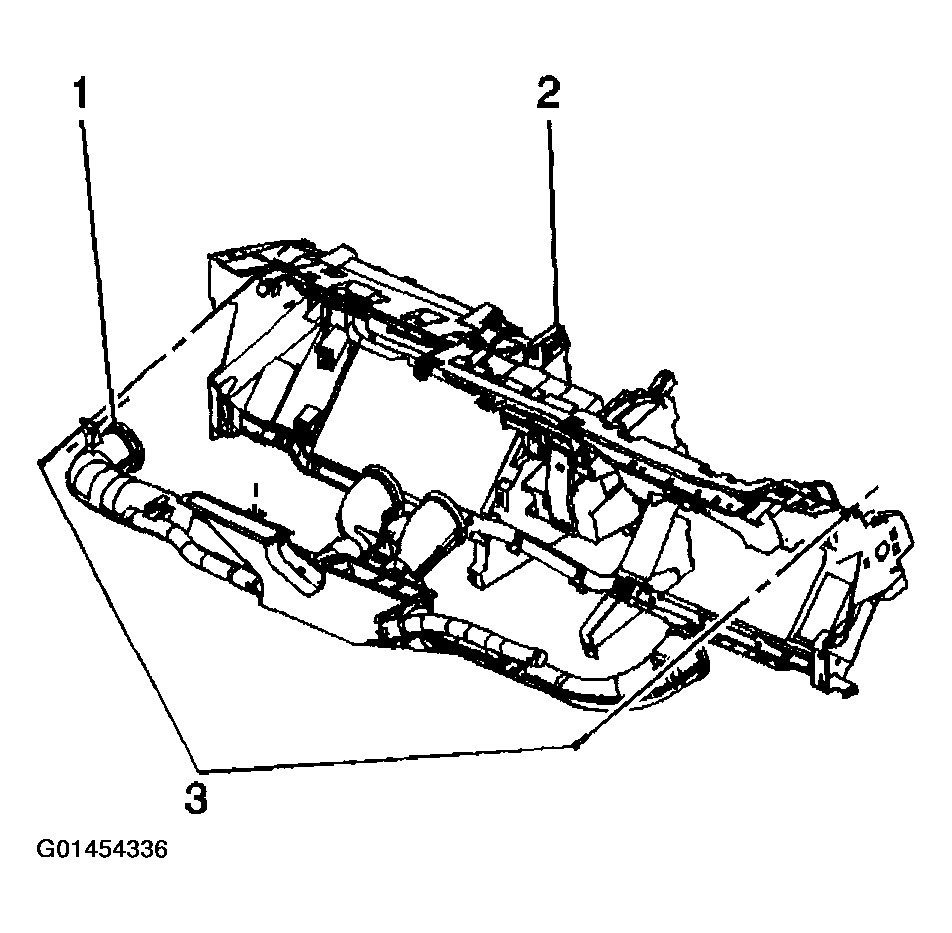

    Fig 1: Removing Air Distributor Duct
    G01454336Courtesy of GENERAL MOTORS CORP.
