Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air distribution duct (1) to the I/P trim panel (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screws (3) to the air distribution duct (1).

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the I/P trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages, and Console.

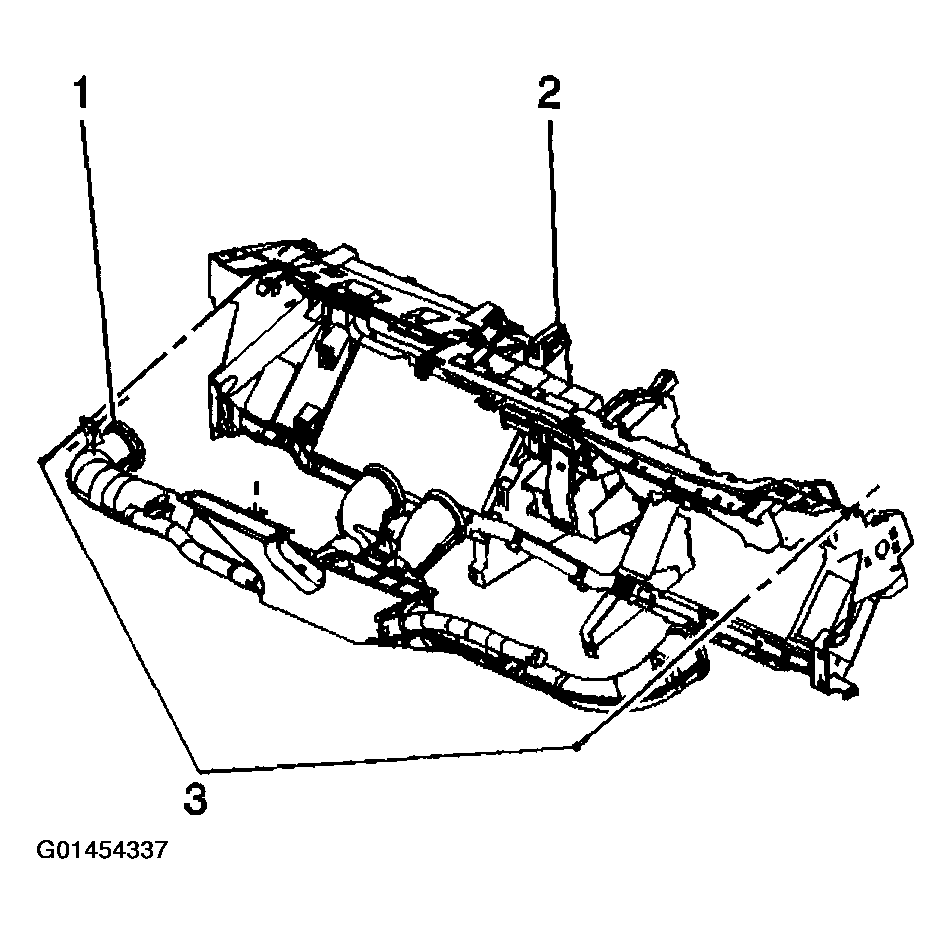

    Fig 1: Installing Air Distributor Duct
    G01454337Courtesy of GENERAL MOTORS CORP.
