Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the duct (6) to the vehicle.
  2. Install the upper air duct fastener (5).
  3. Install the upper air temperature sensor, if equipped.
  4. Install the right rear quarter trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (UTILITY) or TRIM PANEL REPLACEMENT - REAR QUARTER - RIGHT (SUBURBAN) in Interior Trim.

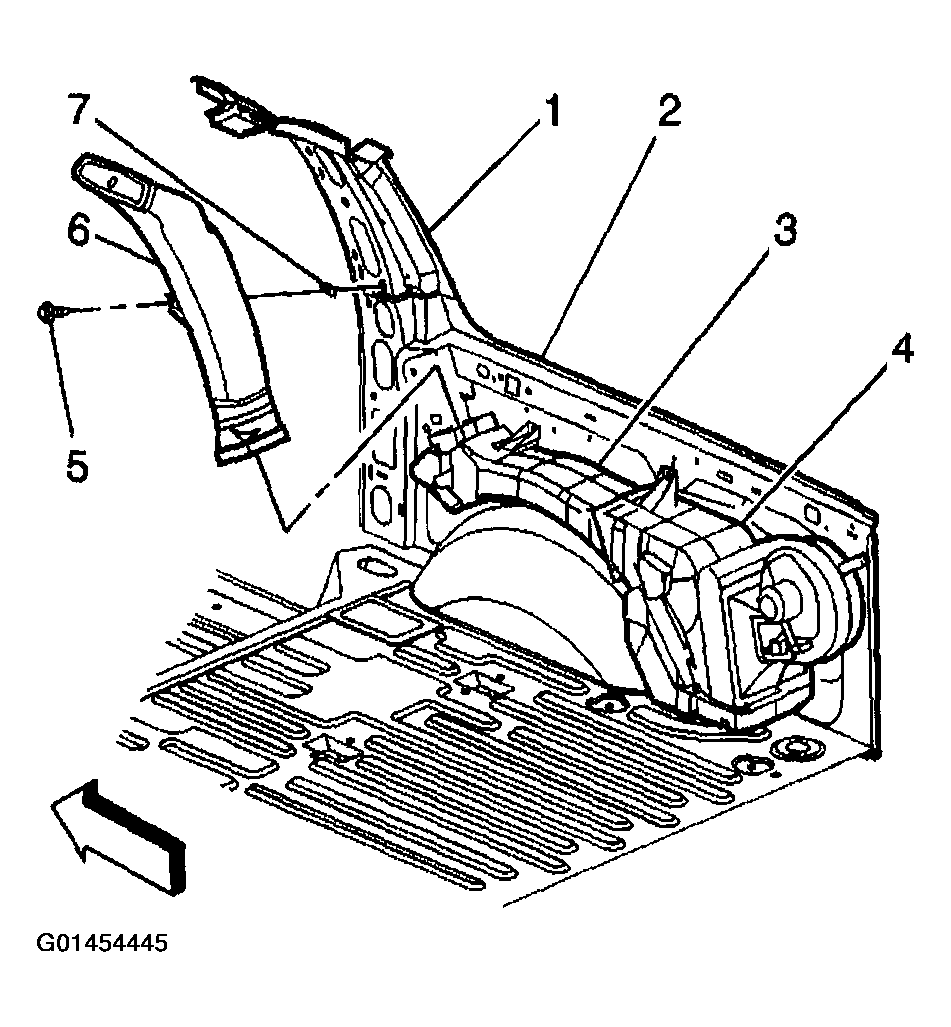

    Fig 1: Installing Air Distribution Ducts - Auxiliary - Upper
    G01454445Courtesy of GENERAL MOTORS CORP.
