Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the A/C high pressure recirculation switch.

    Tighten

    Tighten the switch to 6 N.m (53 lb in).

  2. Connect the electrical connector to the A/C high pressure recirculation switch.
  3. Leak test the fittings of the components using the J 39400-A  .
  4. Lower the vehicle.

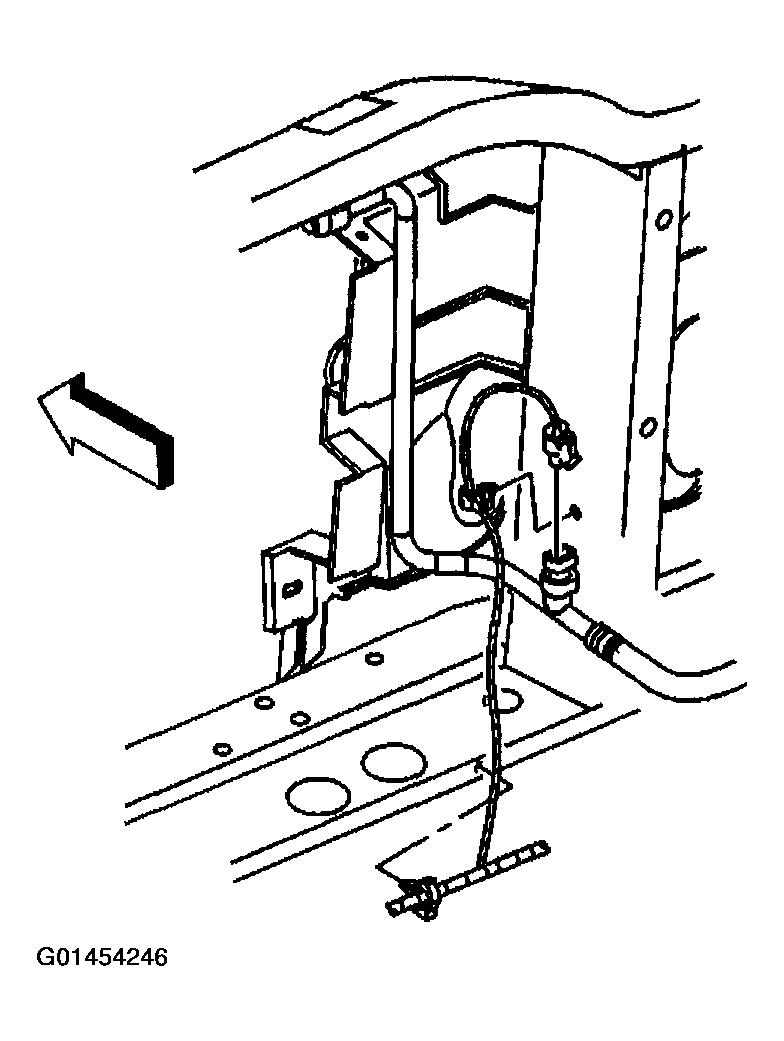

    Fig 1: Installing Air Conditioning Refrigerant Pressure Sensor
    G01454246Courtesy of GENERAL MOTORS CORP.
