Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new O-ring seal to the switch. Refer to O-RING REPLACEMENT
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the A/C low pressure switch to the accumulator.

    Tighten

    Tighten the switch to 6 N.m (53 lb in).

  3. Connect the electrical connector to the A/C low pressure switch.
  4. Leak test the fittings of the components using the J 39400-A  .

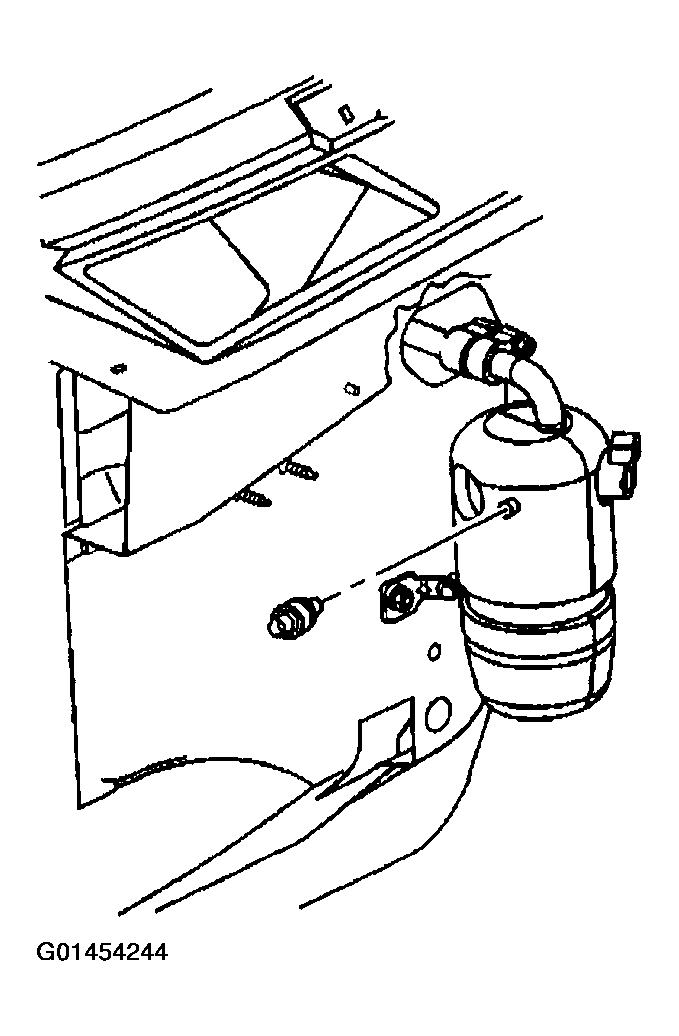

    Fig 1: Installing Air Conditioning Low Pressure Switch
    G01454244Courtesy of GENERAL MOTORS CORP.
