Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. This step determines if the A/C system has at least the minimum refrigerant charge required to operate the system without damage.
  2. This step measures the performance of the A/C system.
  3. This step is to allow for vehicle variations as well as high ambient air temperatures.

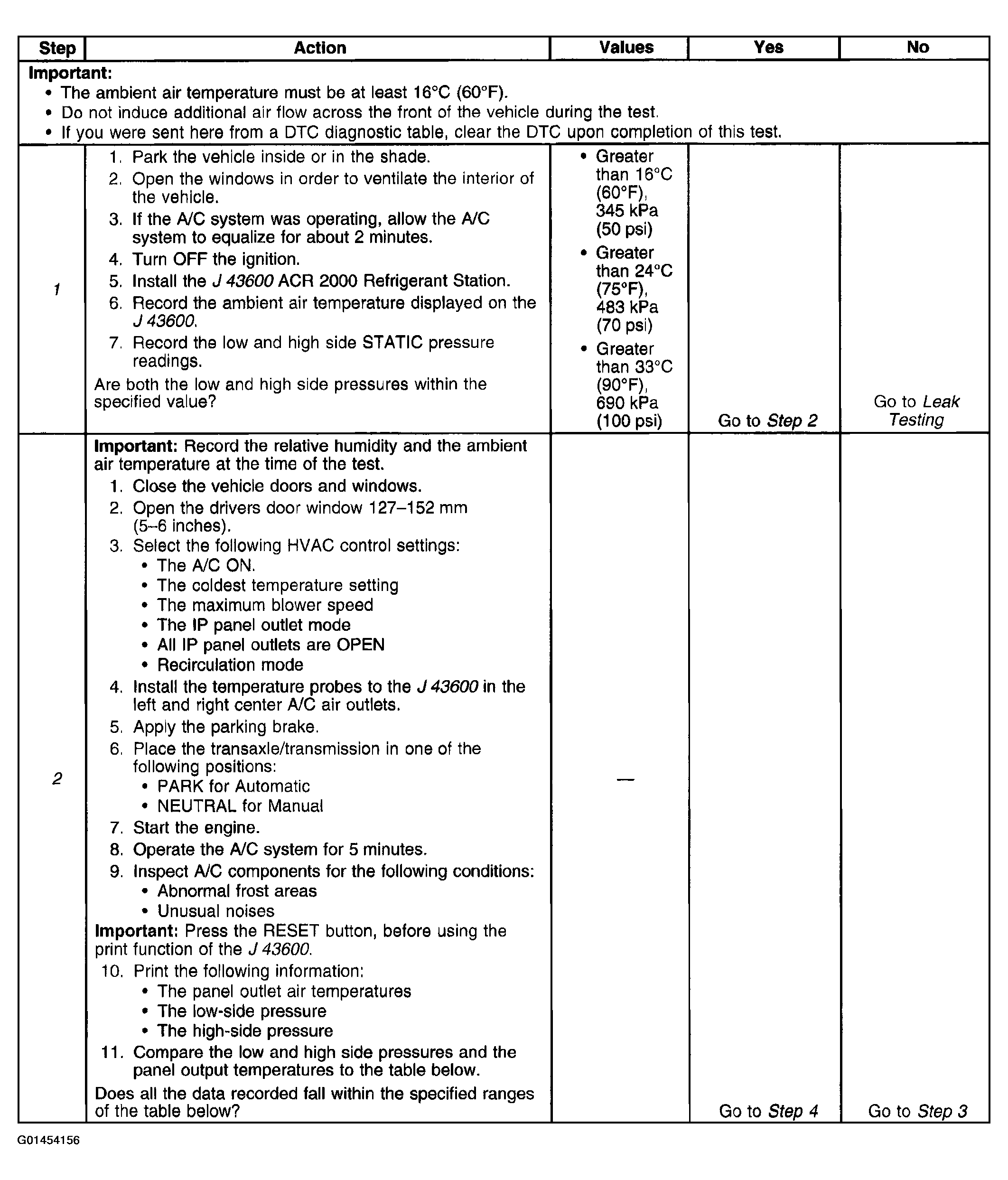

Fig 1: Air Conditioning System Performance Test Chart (Step 1 To 2)
G01454156Courtesy of GENERAL MOTORS CORP.

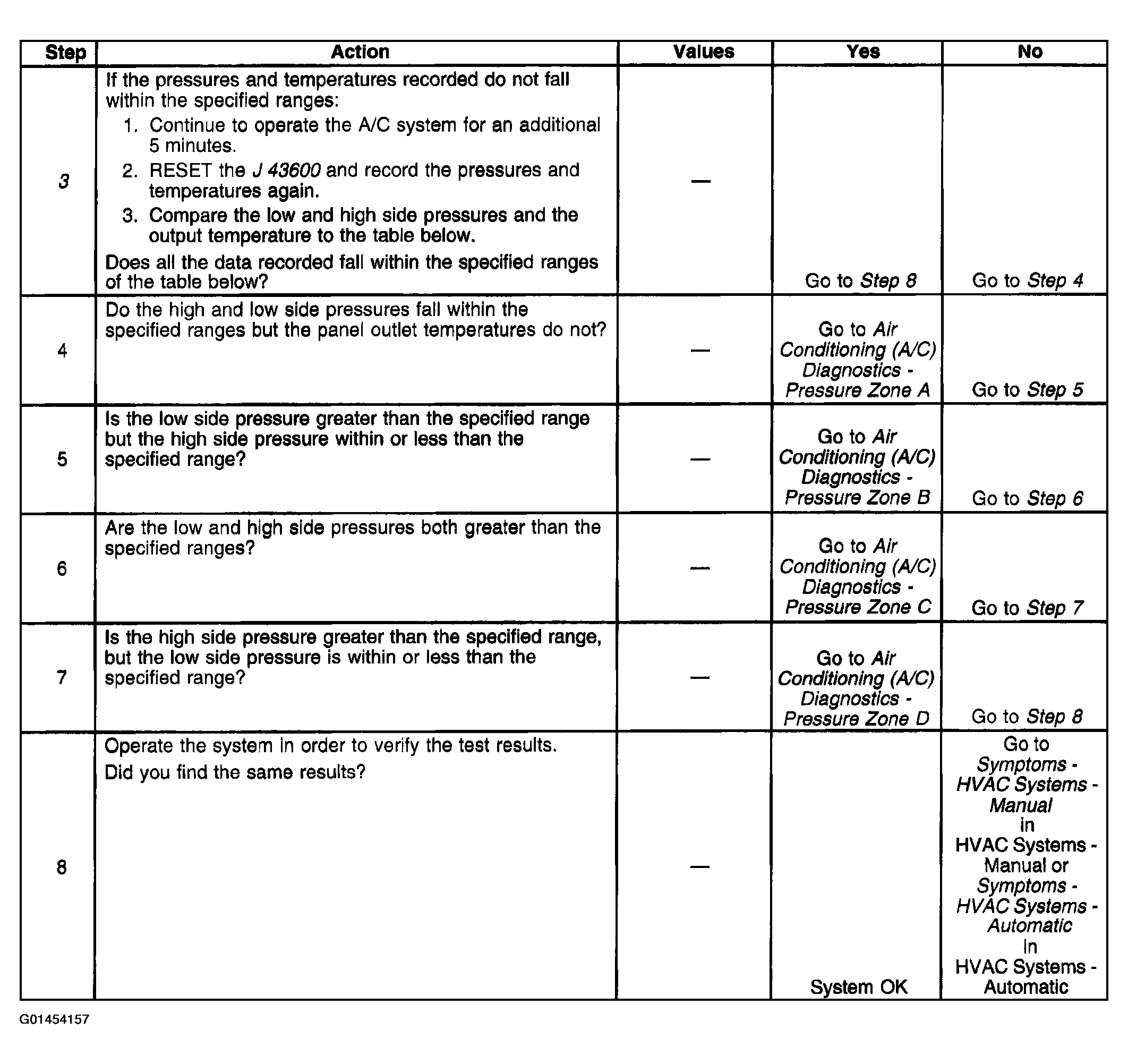

Fig 2: Air Conditioning System Performance Test Chart (Step 3 To 8)
G01454157Courtesy of GENERAL MOTORS CORP.
