A/C System Pressure - Zone Classification

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

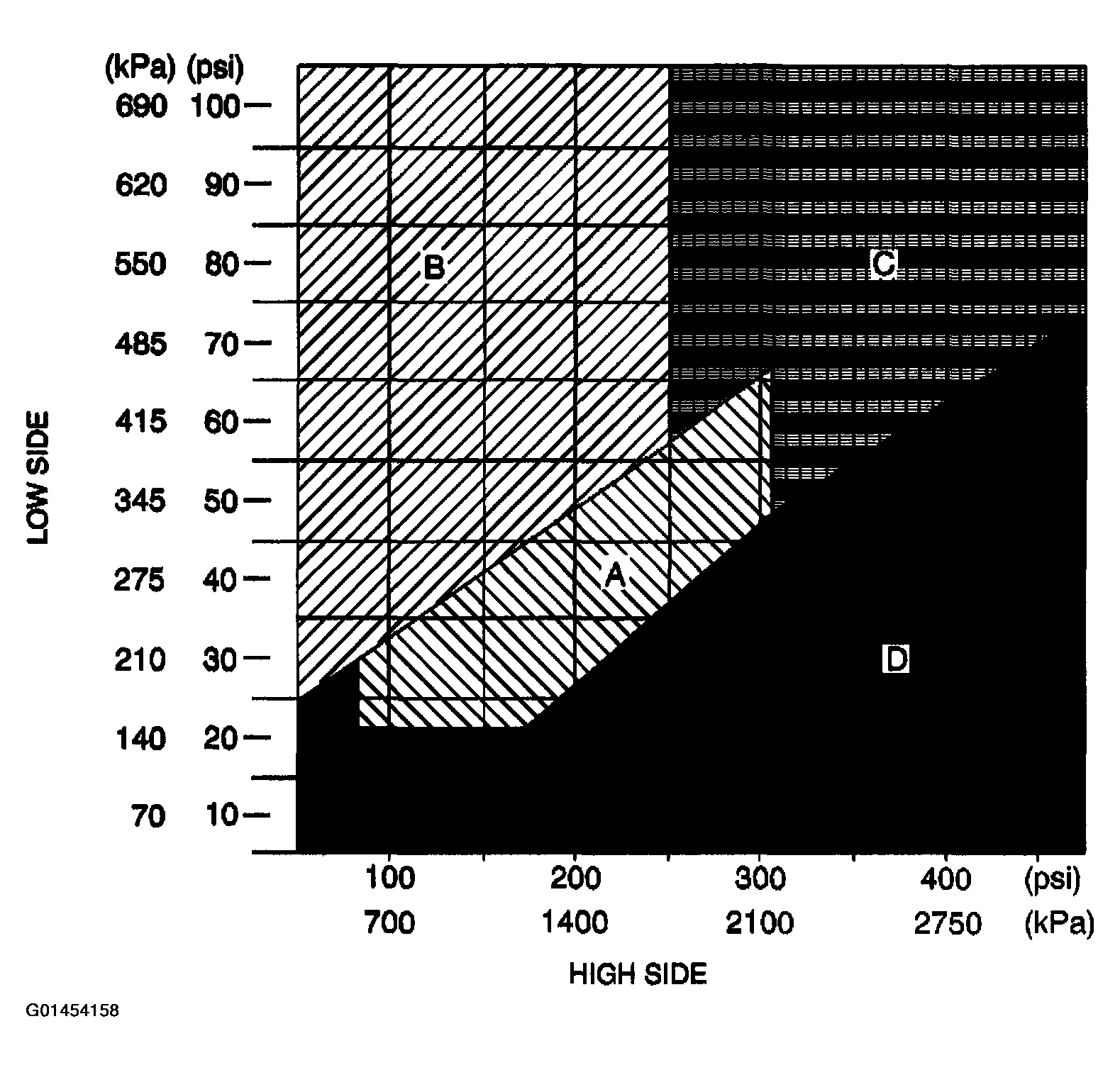

Fig 1: A/C System Pressure - Zone Classification
G01454158Courtesy of GENERAL MOTORS CORP.

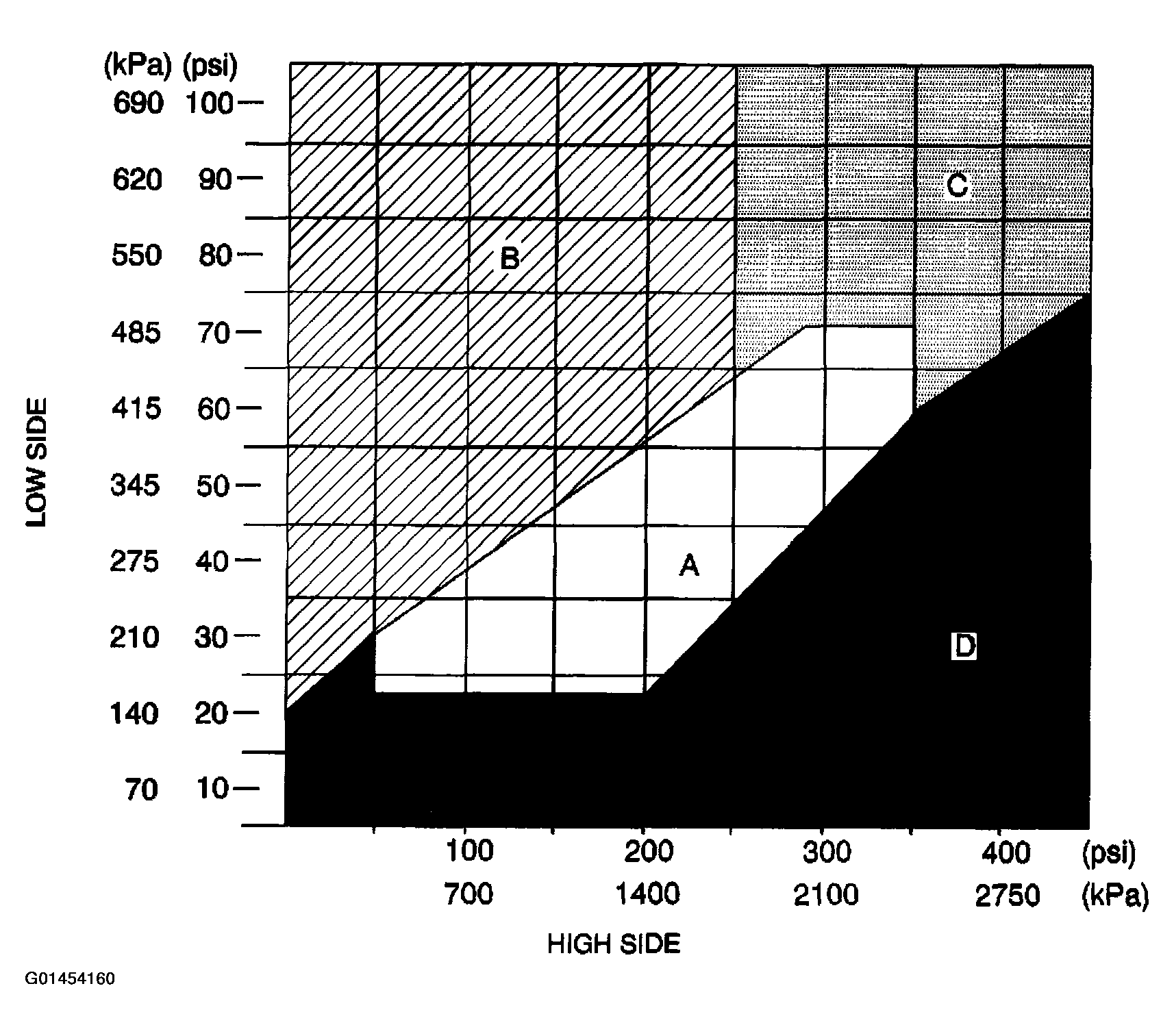

Fig 1: A/C System Pressure - Zone Classification
G01454160Courtesy of GENERAL MOTORS CORP.
