Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 2 or SEAT REPLACEMENT - REAR NO. 2 - 50-50 in SEAT SYSTEM .
  2. In order to release the seat back, manually rotate the center latch. Rotate the latch until the seat back releases the seat back.
  3. Remove the latch cover (1) from the seat.

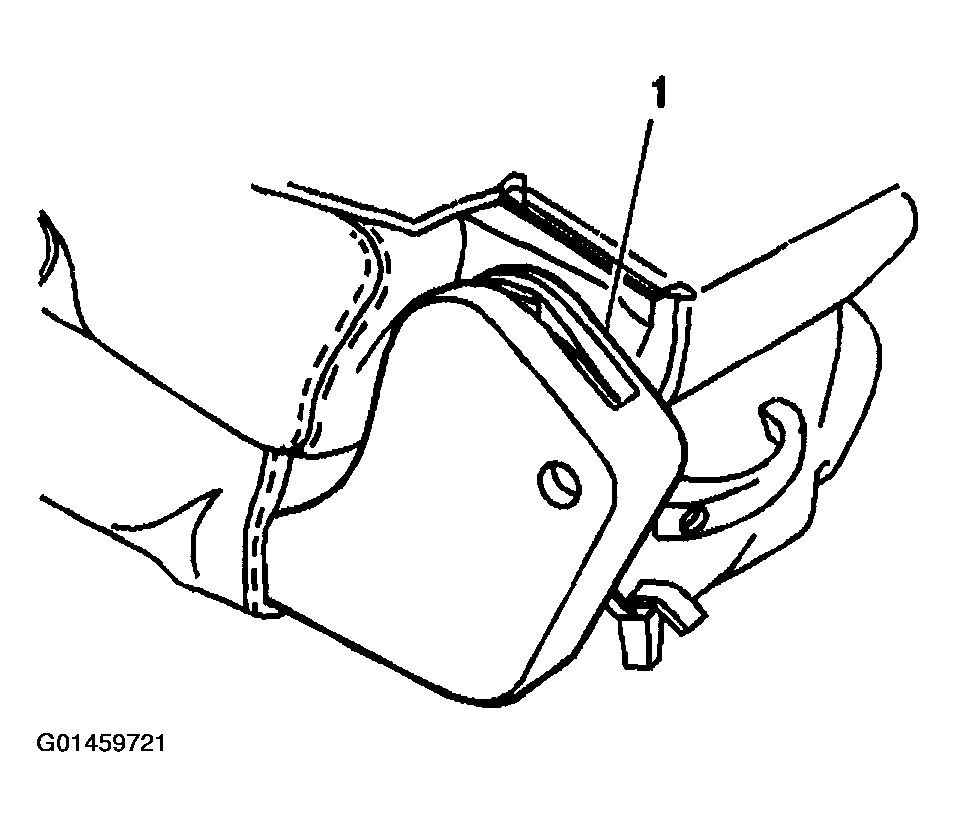

    Fig 1: Removing Latch Cover From Seat
    G01459721Courtesy of GENERAL MOTORS CORP.
  4. Remove the seat belt anchor bolt (1) from the cushion frame.
  5. Remove the head rests. Refer to HEAD RESTRAINT REPLACEMENT (CADILLAC) or HEAD RESTRAINT REPLACEMENT (NON-CADILLAC) or HEAD RESTRAINT REPLACEMENT (FOLDING) in SEAT SYSTEM .
  6. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR (50/50 SPLIT - 60/40 SPLIT) or SEAT BACK COVER AND PAD REPLACEMENT - REAR (BENCH) .
  7. Remove the seat back frame. Refer to SEAT BACK FRAME REPLACEMENT - REAR (60/40 SPLIT - 50/50 SPLIT) or SEAT BACK FRAME REPLACEMENT - REAR (BENCH) in SEAT SYSTEM .
    Fig 2: Removing Seat Belt Anchor Bolt From Cushion Frame
    G01459722Courtesy of GENERAL MOTORS CORP.
  8. Remove the seatbelt retractor bolt cover (1).
  9. Remove the retractor mounting bolts (2).
    Fig 3: Removing Retractor Mounting Bolts
    G01459723Courtesy of GENERAL MOTORS CORP.
  10. Remove the handle mounting screws (1).
  11. Partially remove the seat cushion cover by separating the cushion trim J-strips.
    Fig 4: Removing Handle Mounting Screws
    G01459724Courtesy of GENERAL MOTORS CORP.
  12. Remove the bolts attaching the buckle to the seat cushion frame.
  13. Remove the buckle and the latch from the seat frame.
    Fig 5: Removing Buckle And Latch From Seat Frame
    G01459725Courtesy of GENERAL MOTORS CORP.
