Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat cushion cover. Refer to SEAT CUSHION COVER AND PAD REPLACEMENT - REAR (60/40 SPLIT - 50/50 SPLIT) or SEAT CUSHION COVER AND PAD REPLACEMENT - REAR (BENCH) in SEAT SYSTEM .
  2. Remove the bolt (1) from the buckle assembly.
  3. Remove the buckles from the seat frame.

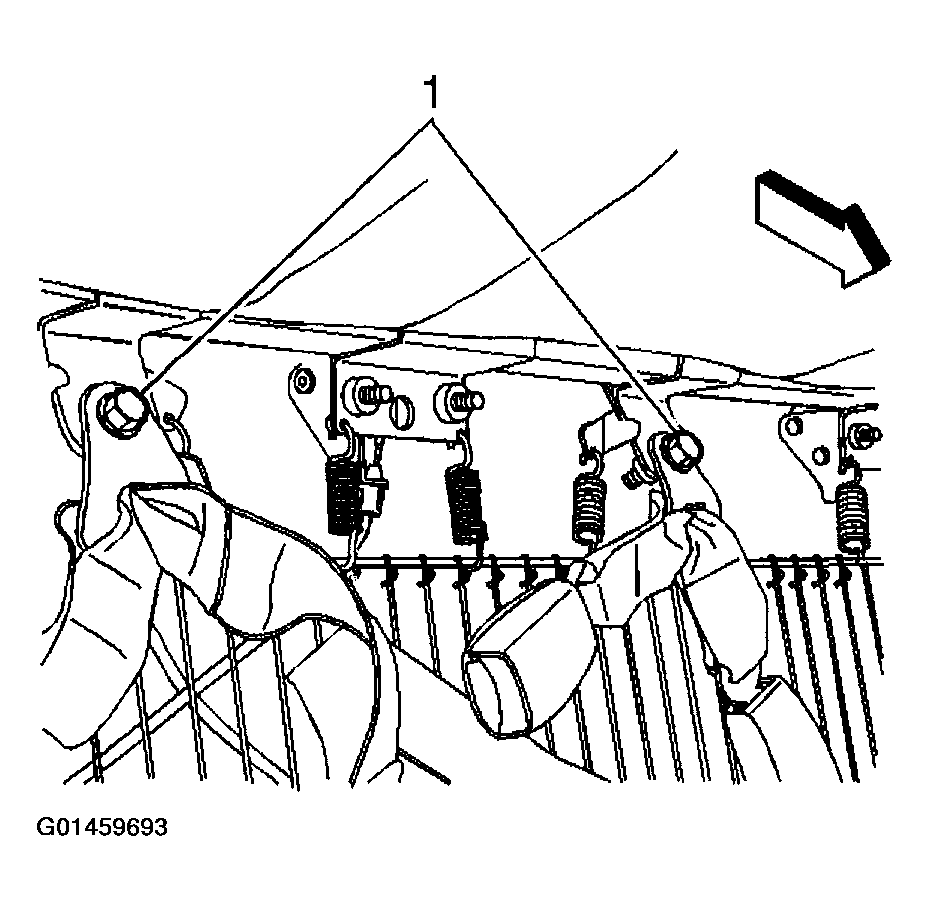

    Fig 1: Removing Bolt From Buckle Assembly
    G01459693Courtesy of GENERAL MOTORS CORP.
