Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the handle mounting screws (1).
  2. Partially Remove the seat cushion cover by separating the cushion trim J-strips.

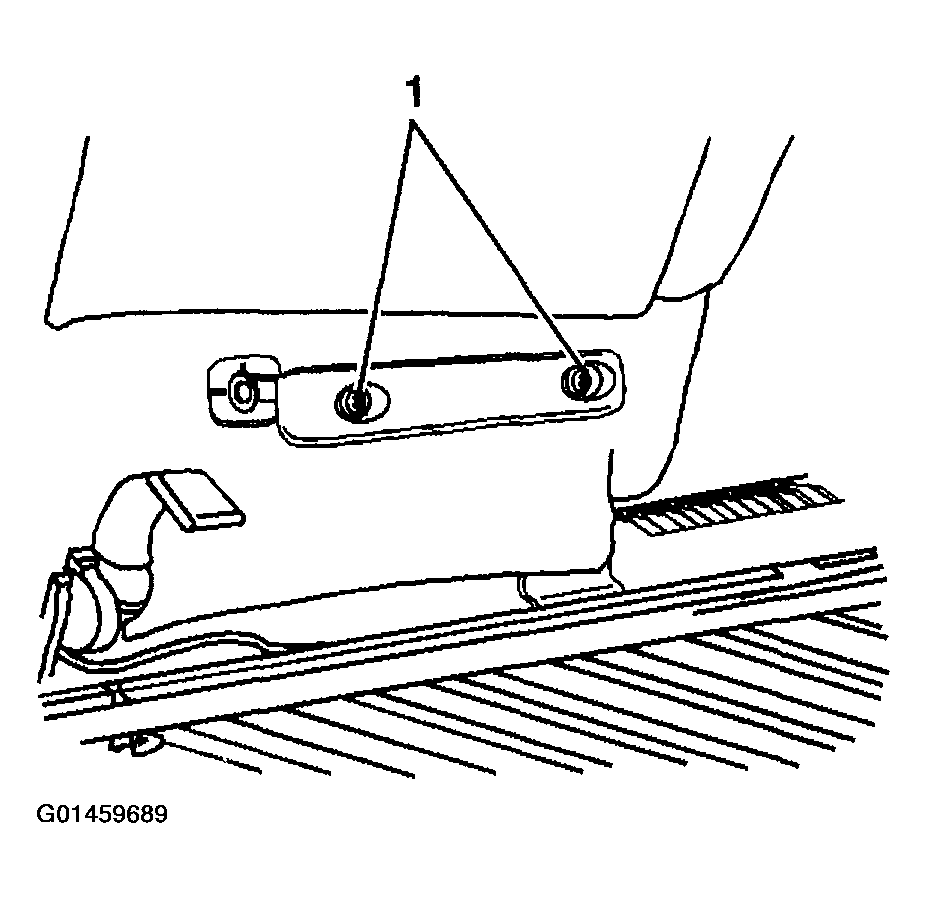

    Fig 1: Removing Handle Mounting Screws
    G01459689Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts attaching the buckle to the seat cushion frame.
  4. Remove the buckle from the seat frame.

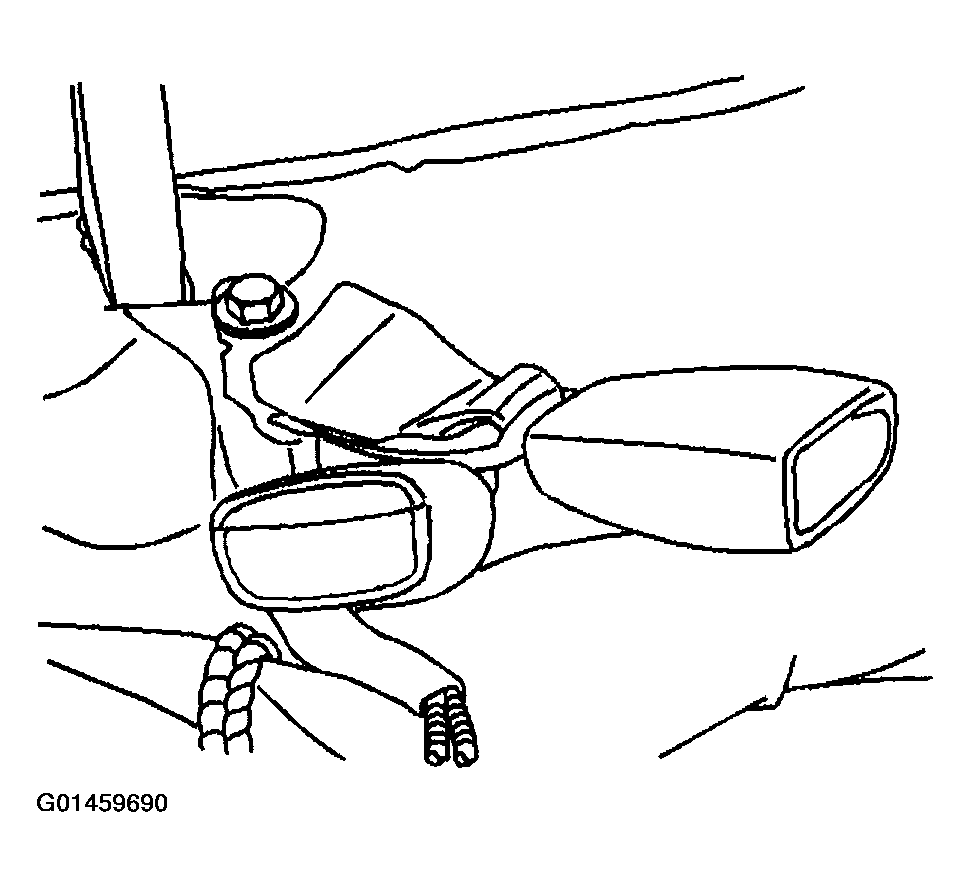

    Fig 2: Removing Buckle From Seat Frame
    G01459690Courtesy of GENERAL MOTORS CORP.
