Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat belt buckle nut (1).

    Disconnect the electrical connection (2). The right seat buckle is shown, the left is similar.

  2. Remove the seat belt buckle from the vehicle.

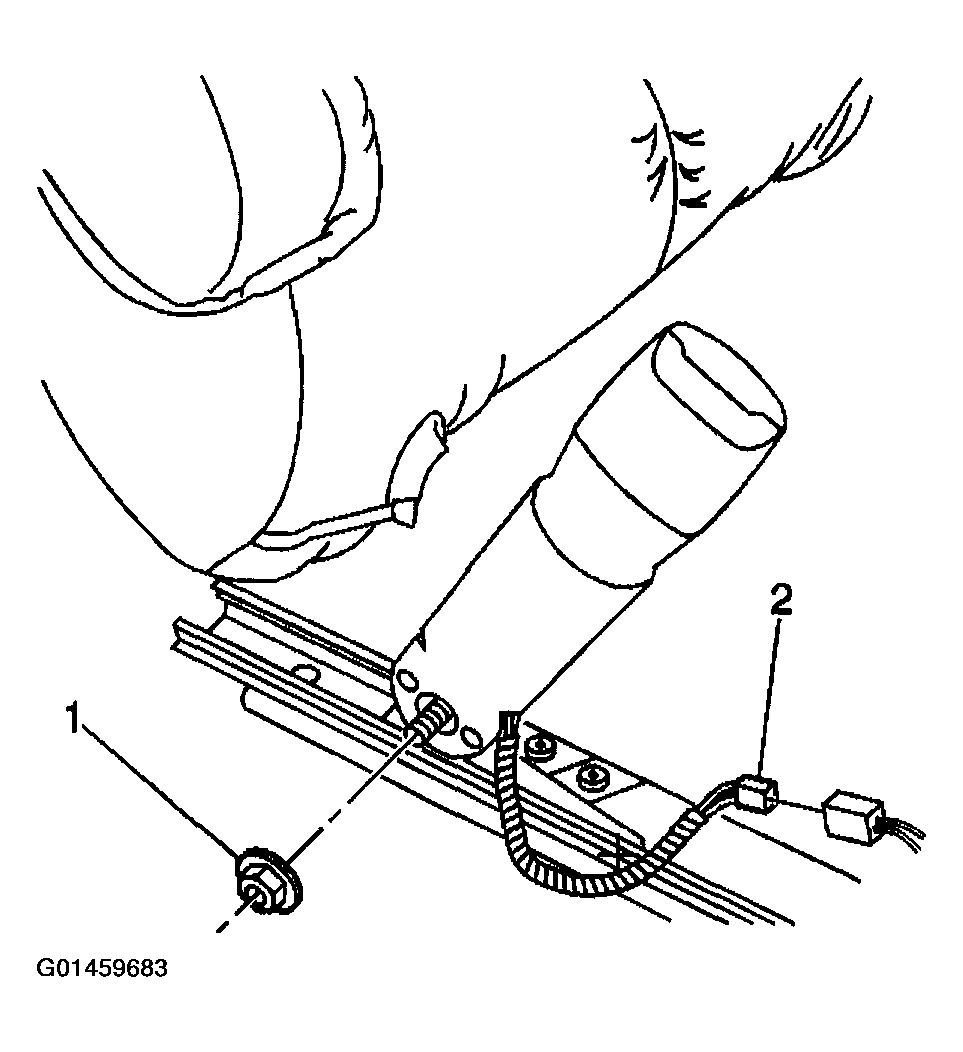

    Fig 1: Removing Front Seat Belt Buckle Nut
    G01459683Courtesy of GENERAL MOTORS CORP.
