Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckle in the vehicle.
  2. Connect the electrical connection (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the front seat belt buckle nut (1).

    Tighten

    1. Tighten the nut to 53 N.m (39 lb ft).

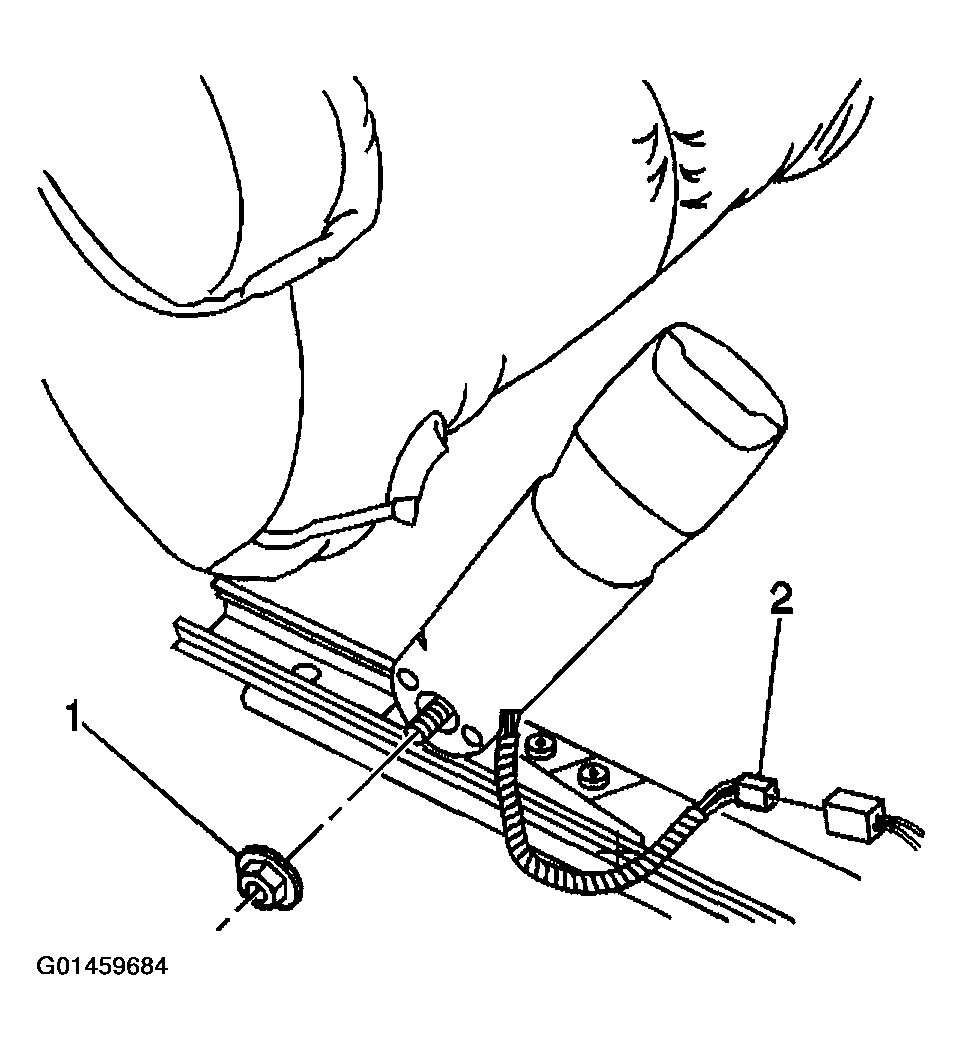

    Fig 1: Installing Front Seat Belt Buckle Nut
    G01459684Courtesy of GENERAL MOTORS CORP.
