Heated Seats Wiring Schematics (Heated Seat Controls - Driver)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

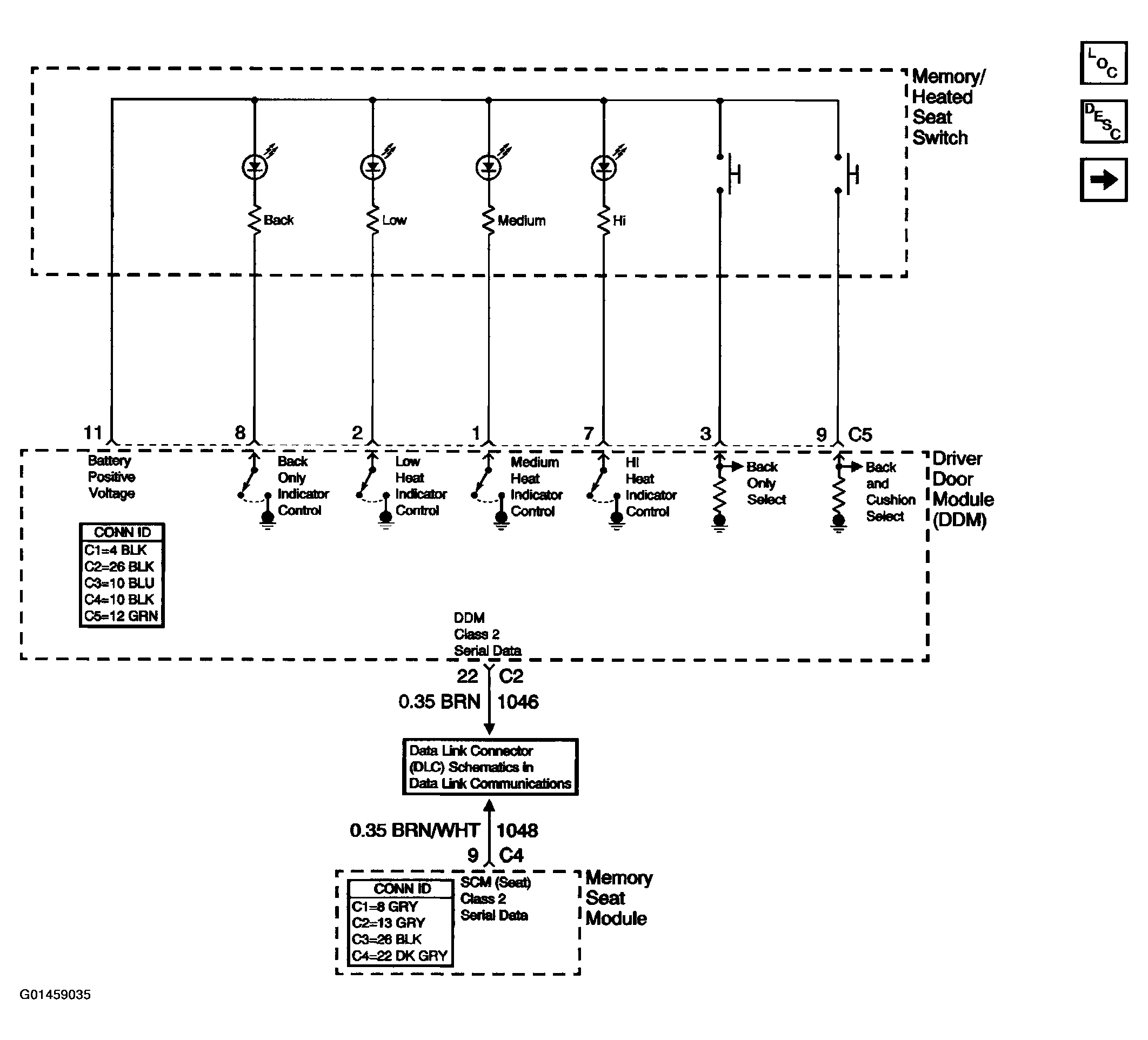

Fig 1: Heated Seats Schematics (Heated Seat Controls - Driver)

G01459035

Courtesy of GENERAL MOTORS CORP.

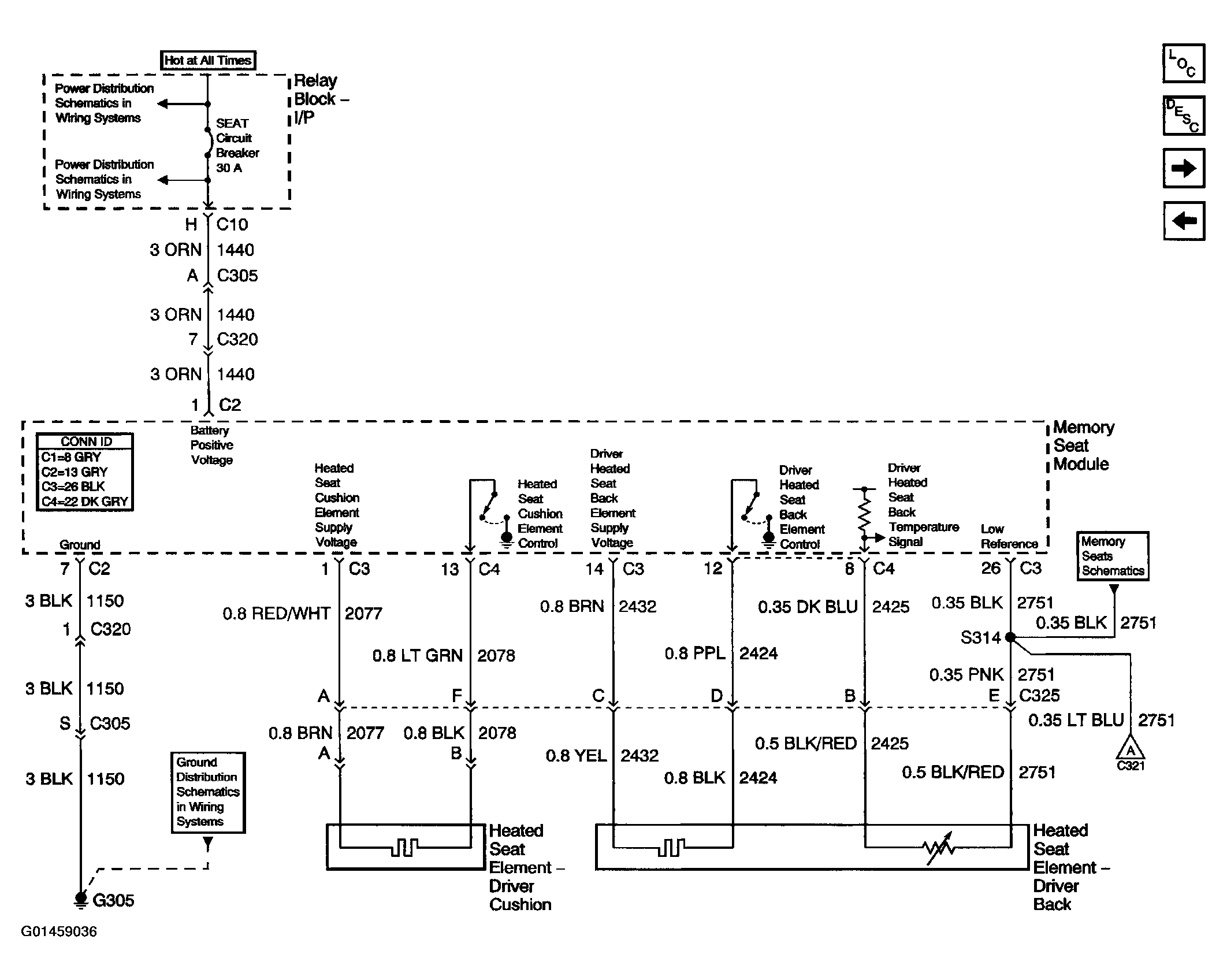

Fig 2: Heated Seats Schematics (Power, Ground, And Driver Heated Seat Elements)

G01459036

Courtesy of GENERAL MOTORS CORP.

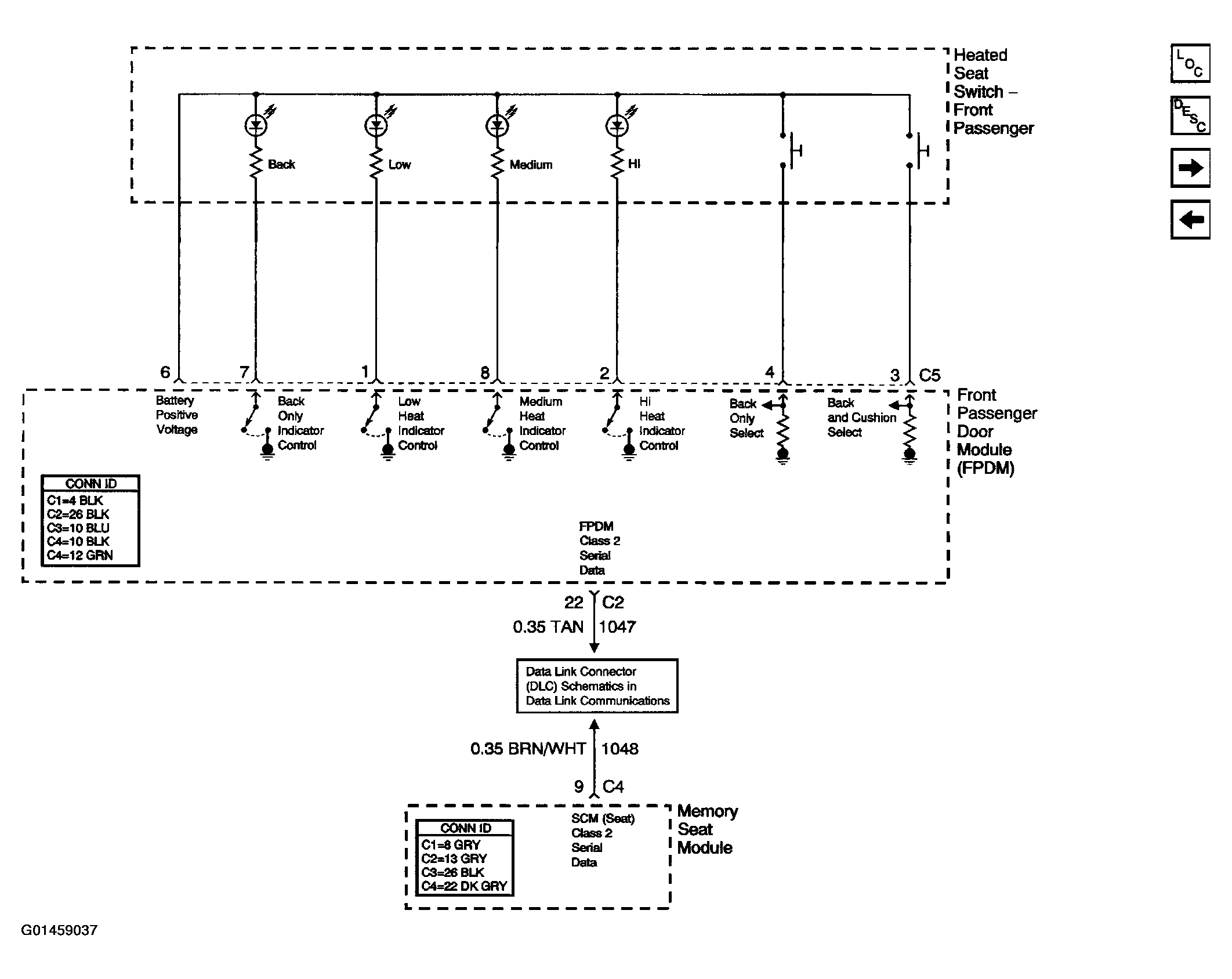

Fig 3: Heated Seats Schematics (Heated Seat Controls - Front Passenger)

G01459037

Courtesy of GENERAL MOTORS CORP.

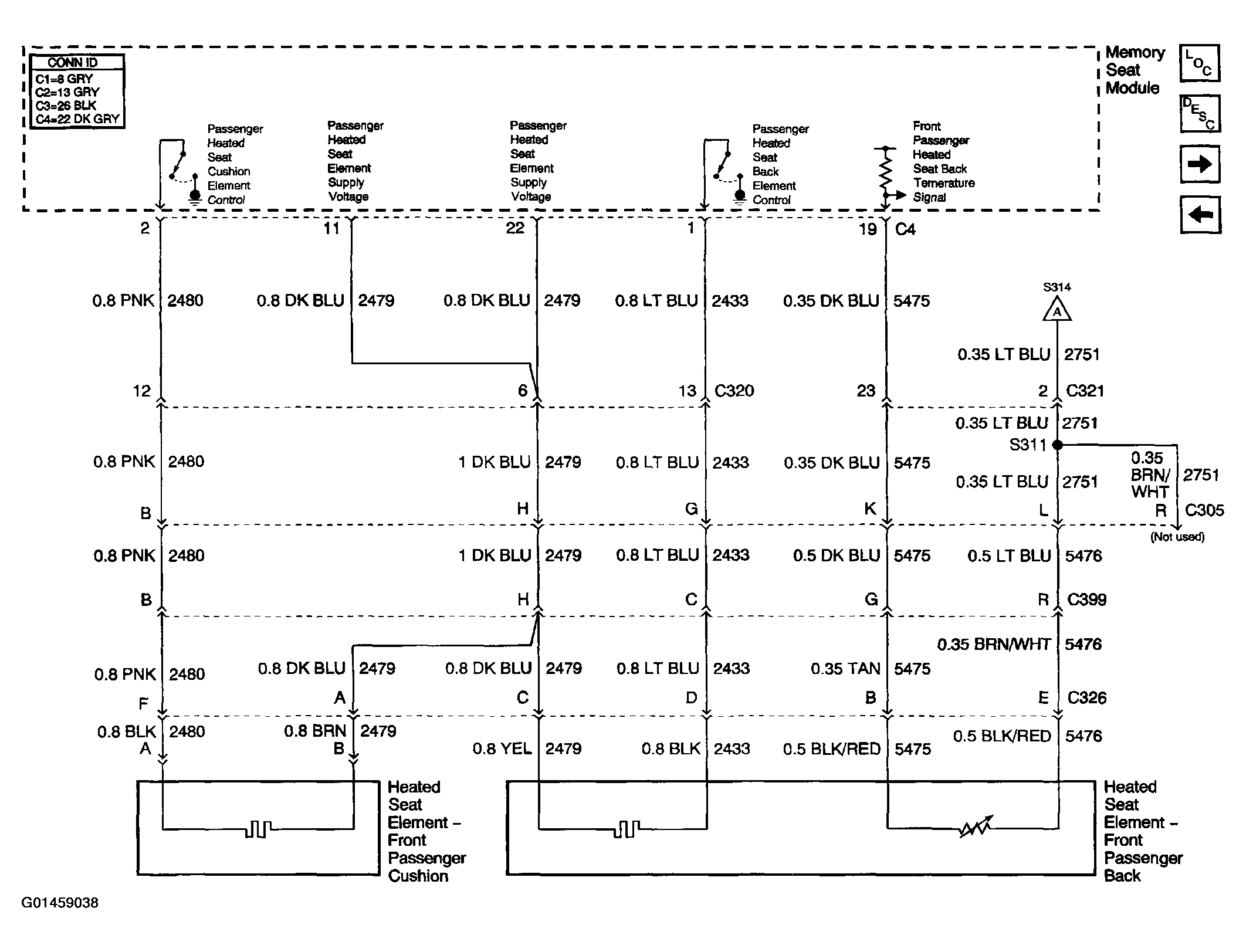

Fig 4: Heated Seats Schematics (Front Passenger Heated Seat Elements)

G01459038

Courtesy of GENERAL MOTORS CORP.

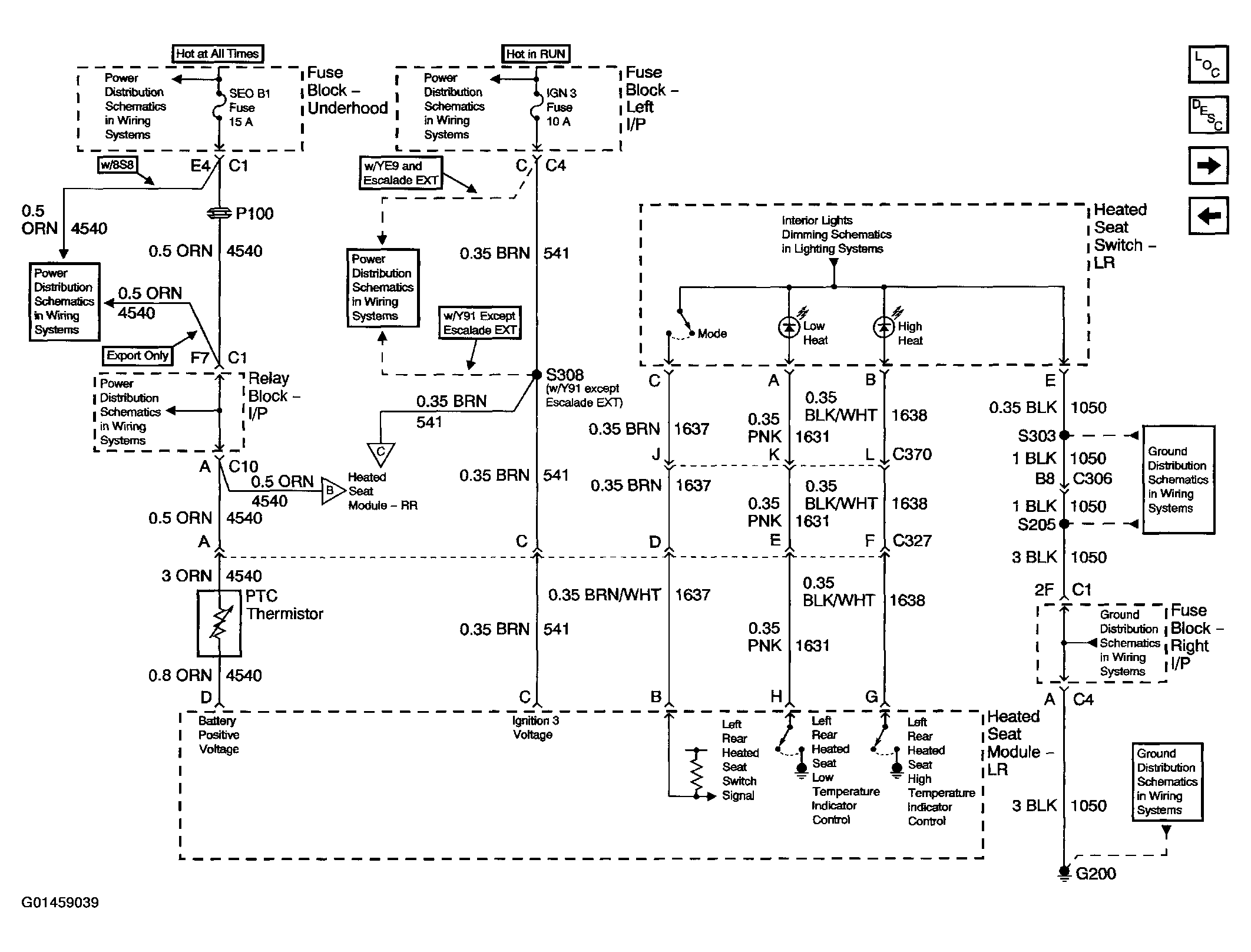

Fig 5: Heated Seats Schematics (Rear Heated Seats (1 Of 3))

G01459039

Courtesy of GENERAL MOTORS CORP.

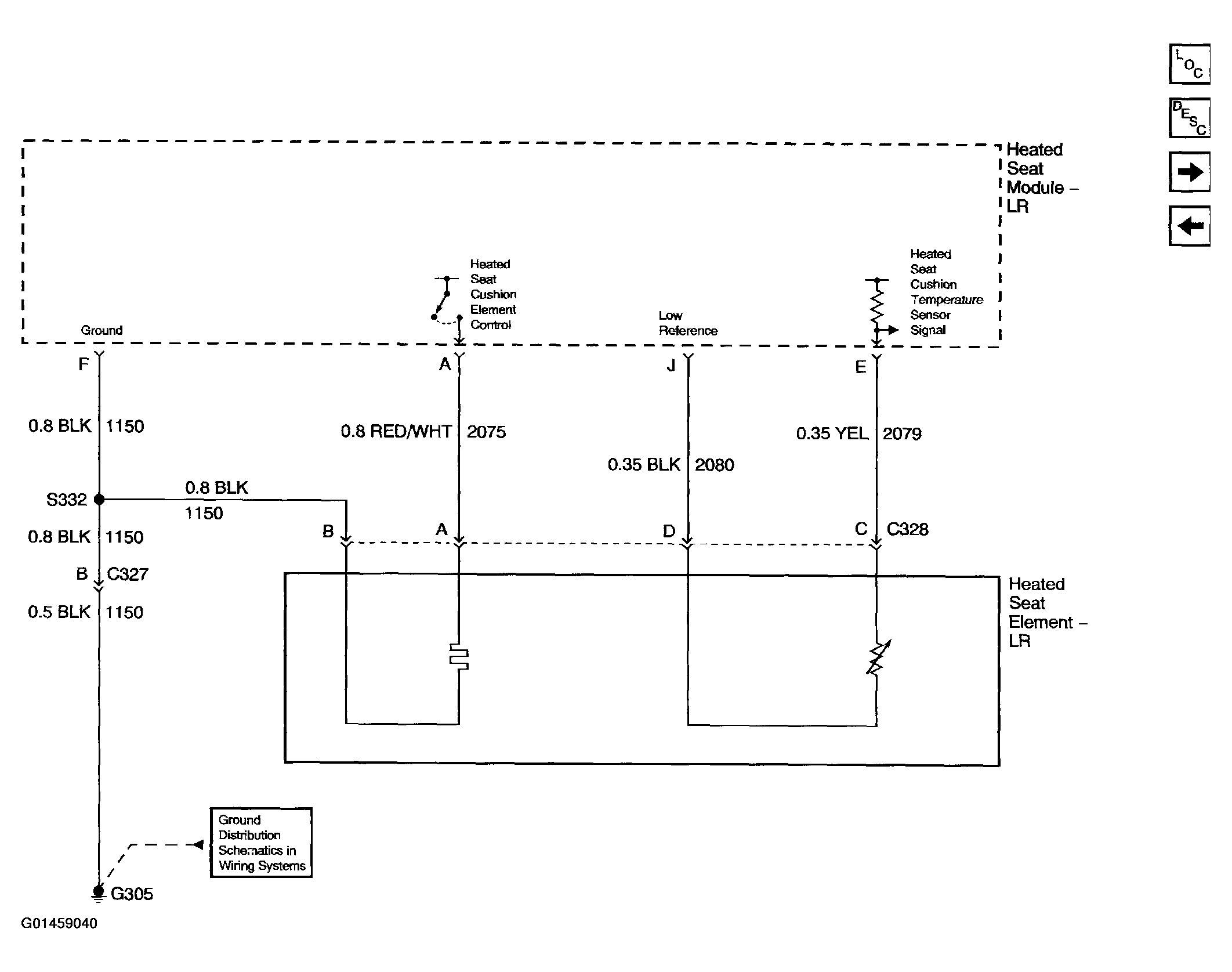

Fig 6: Heated Seats Schematics (Rear Heated Seats (2 Of 3))

G01459040

Courtesy of GENERAL MOTORS CORP.

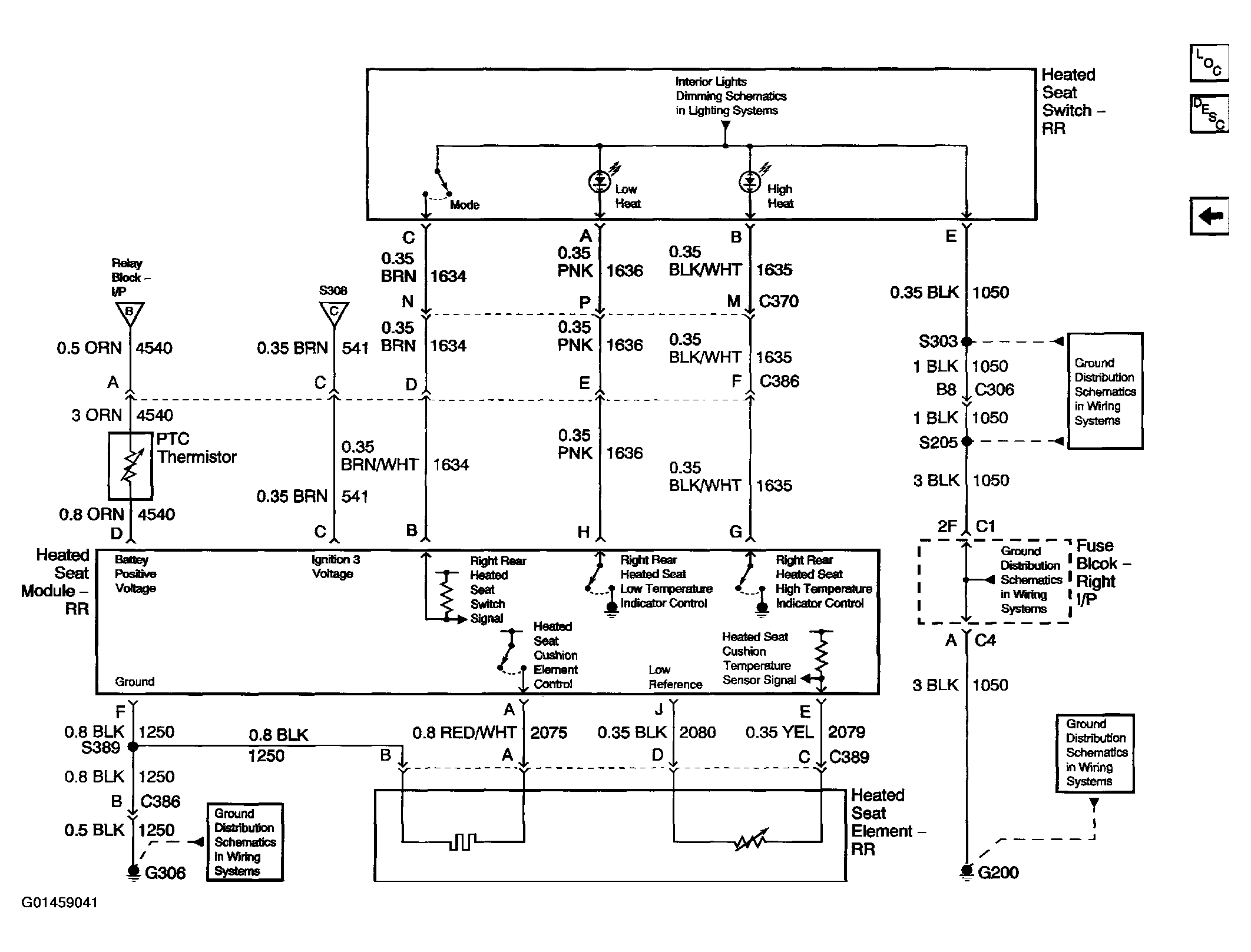

Fig 7: Heated Seats Schematics (Rear Heated Seats (3 Of 3))

G01459041

Courtesy of GENERAL MOTORS CORP.
