Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure the seat is in the full upward position.
  2. Remove the screws retaining the seat back release handle and the seat recliner handle, if equipped.
  3. Remove the trim panel (1) by pulling outward in order to disengage the retaining clip.
  4. Remove the trim panel from the seat.

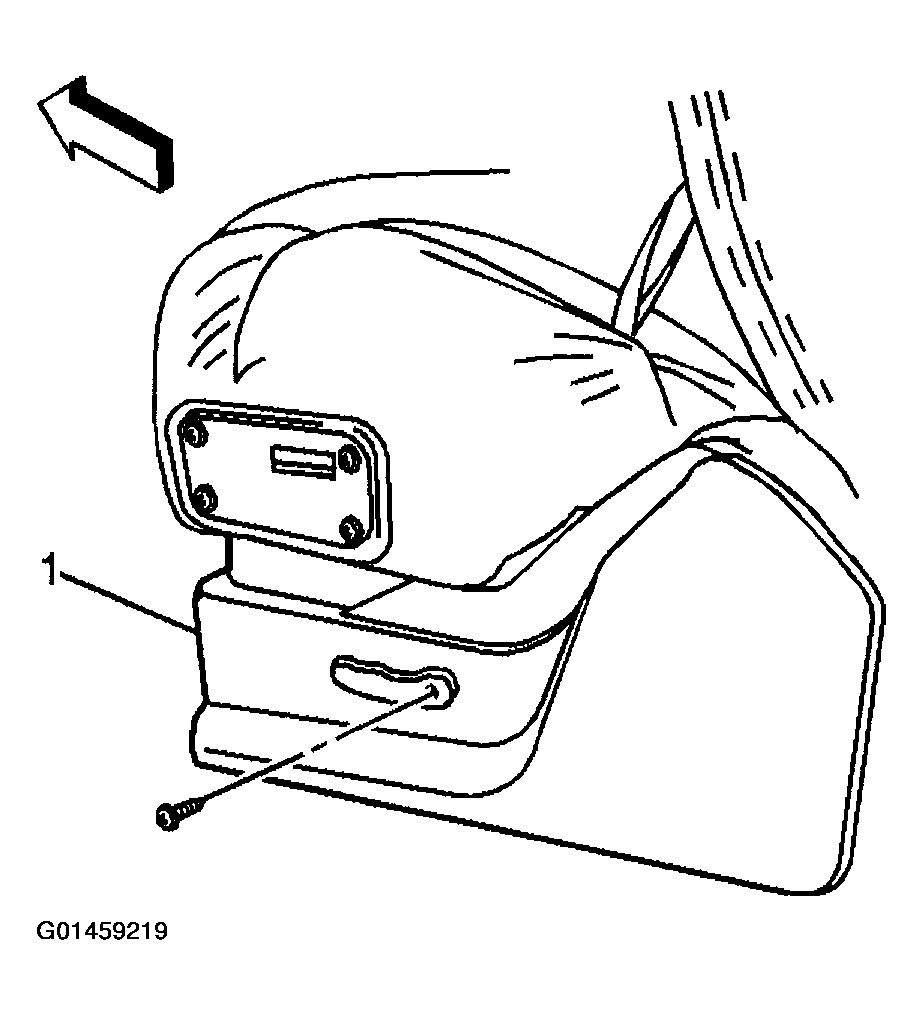

    Fig 1: Removing Screws Retaining Seat Back Release Handle
    G01459219Courtesy of GENERAL MOTORS CORP.
