Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power seat switch bezel from the seat. Refer to SEAT SWITCH BEZEL REPLACEMENT  .

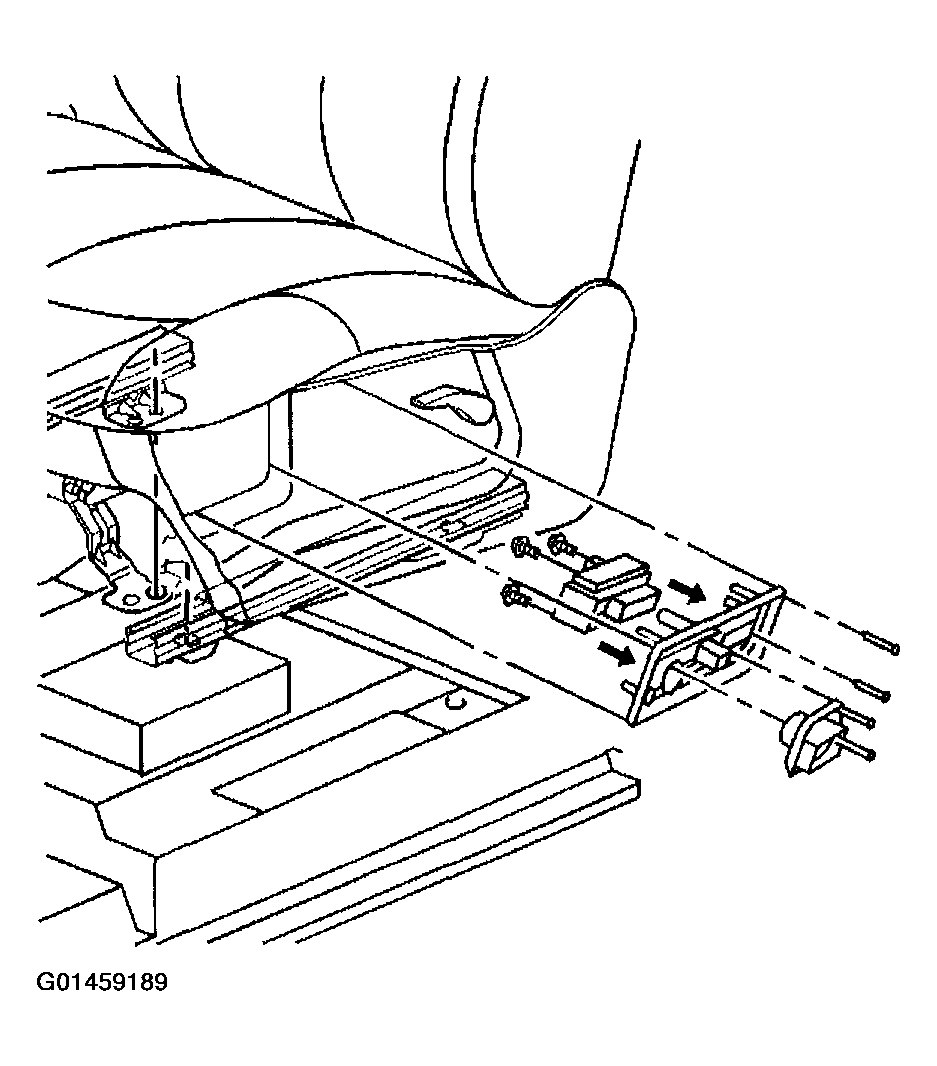

    Fig 1: Removing Power Seat Switch Bezel From Seat
    G01459189Courtesy of GENERAL MOTORS CORP.
  2. Remove the power seat switch to bezel screws.
  3. Remove the power seat switch.

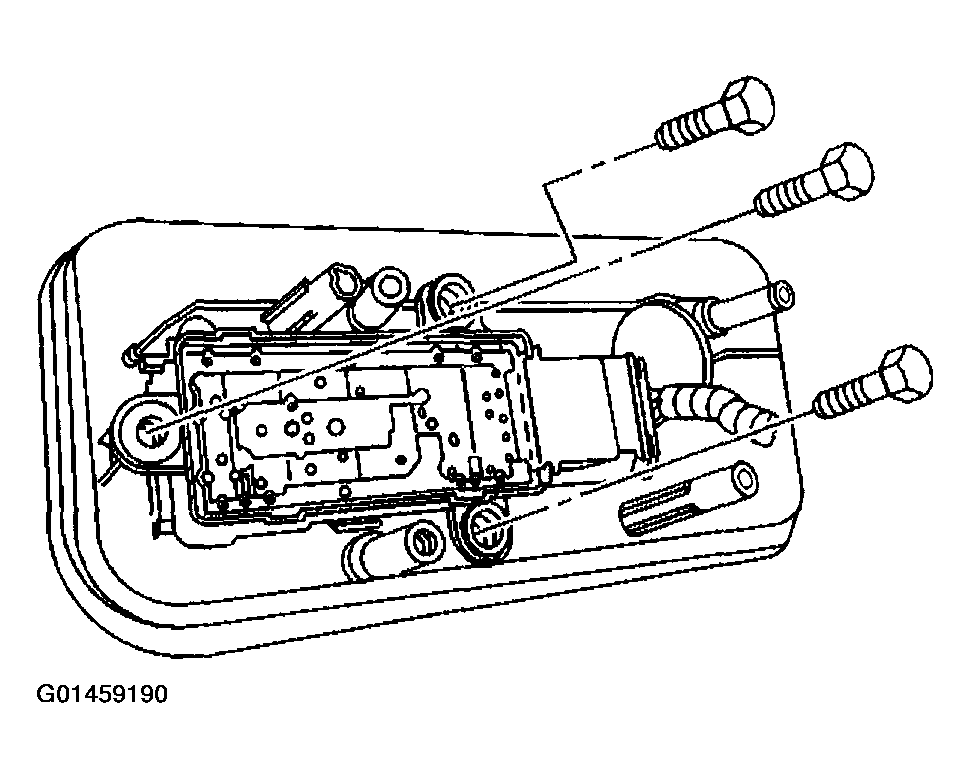

    Fig 2: Removing Power Seat Switch To Bezel Screws
    G01459190Courtesy of GENERAL MOTORS CORP.
