Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the riser assembly to the seat frame.
  2. Connect the cable (3) to the riser assembly.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the bolts (1) that retain the rear riser assembly (2) to the cushion frame.

    Tighten

    1. Tighten the bolts to 53 N.m (39 lb ft).
  4. Engage the J-Clips on the back of the seat cushion frame.

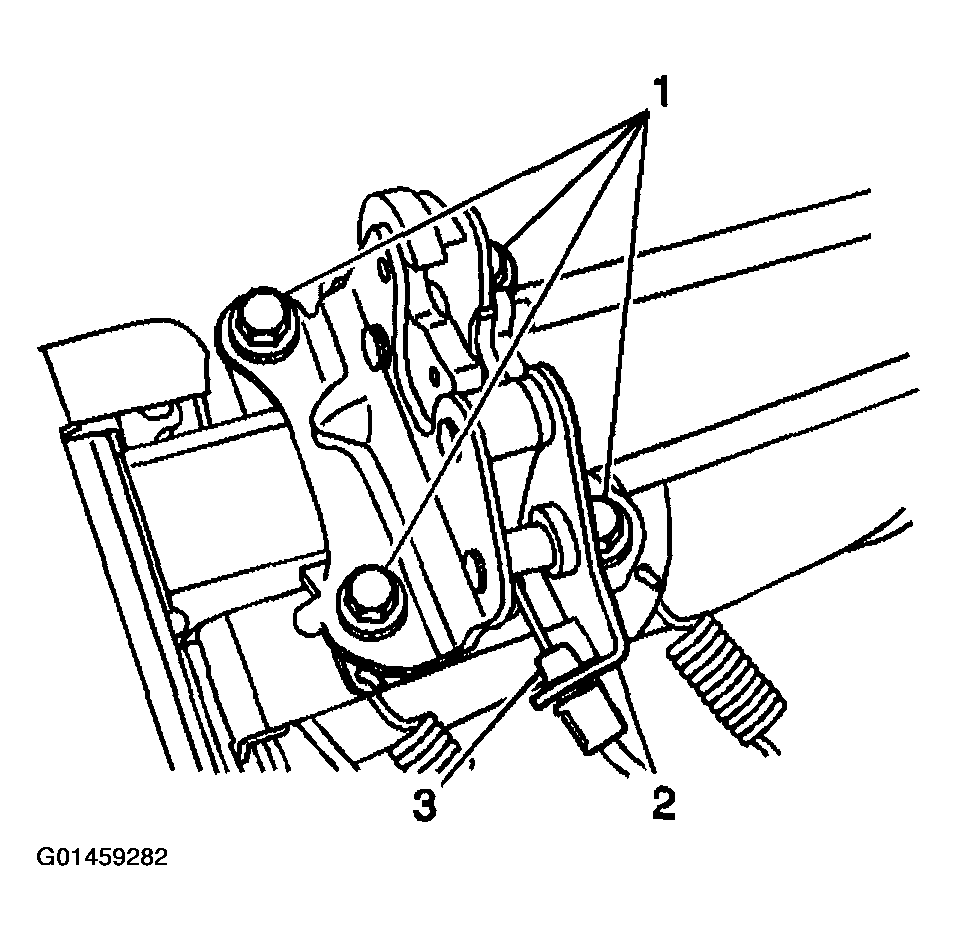

    Fig 1: Installing Bolts That Retain Rear Riser Assembly To Cushion Frame
    G01459282Courtesy of GENERAL MOTORS CORP.
