Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

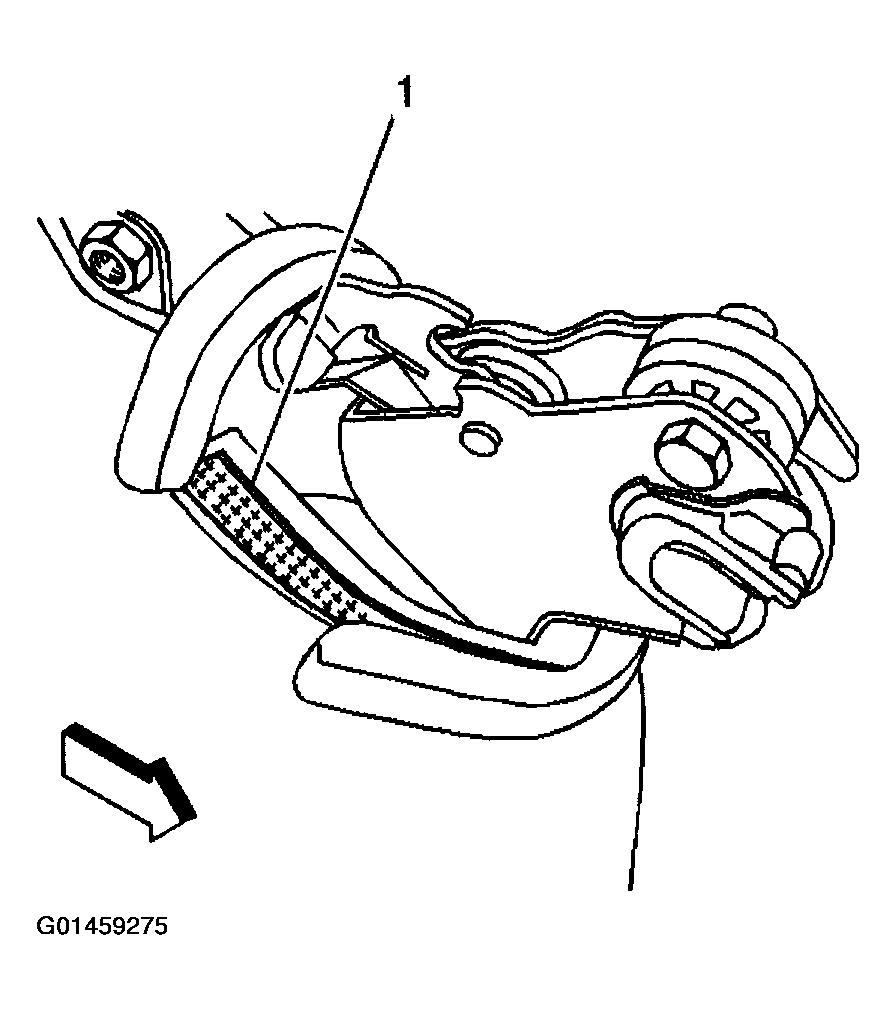

Disengage the velcro strips (1) to gain access to the riser bolts

Fig 1: Disengaging Velcro Strips To Gain Access To Riser Bolts
Courtesy of GENERAL MOTORS CORP.

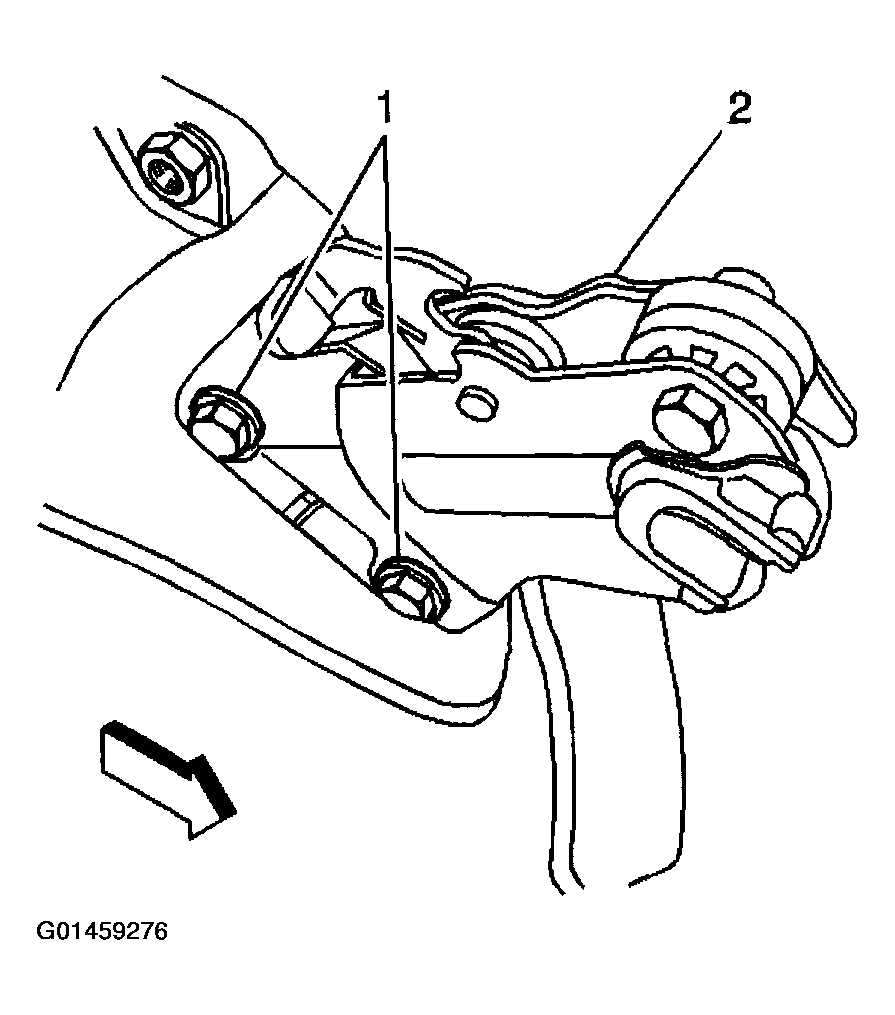

Remove the bolts (1) that retain the front riser (2) to the cushion frame.

Fig 2: Removing Bolts That Retain Front Riser To Cushion Frame
Courtesy of GENERAL MOTORS CORP.

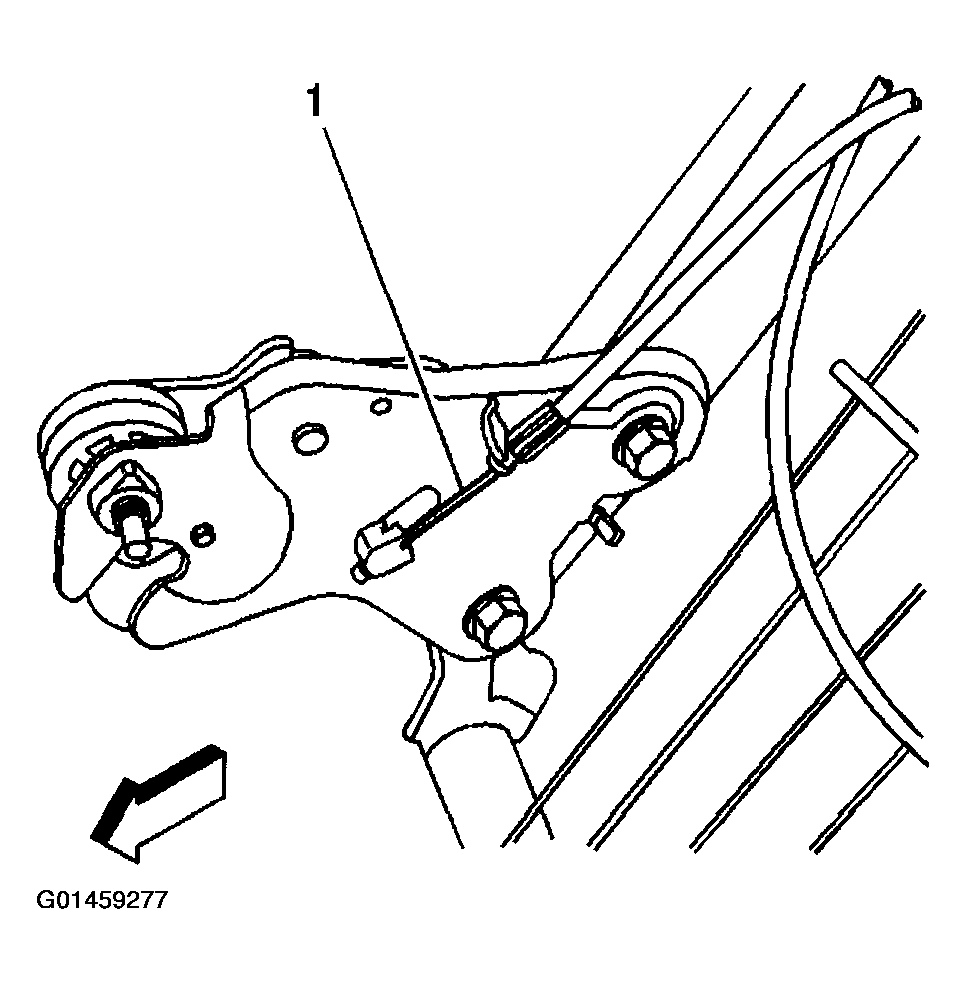

Disconnect the cable (1) from the riser assembly.
Remove the riser assembly from the seat frame.

Fig 3: Disconnecting Cable From Riser Assembly
Courtesy of GENERAL MOTORS CORP.
