Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the riser assembly to the seat frame.
  2. Connect the cable (1) to the riser assembly.

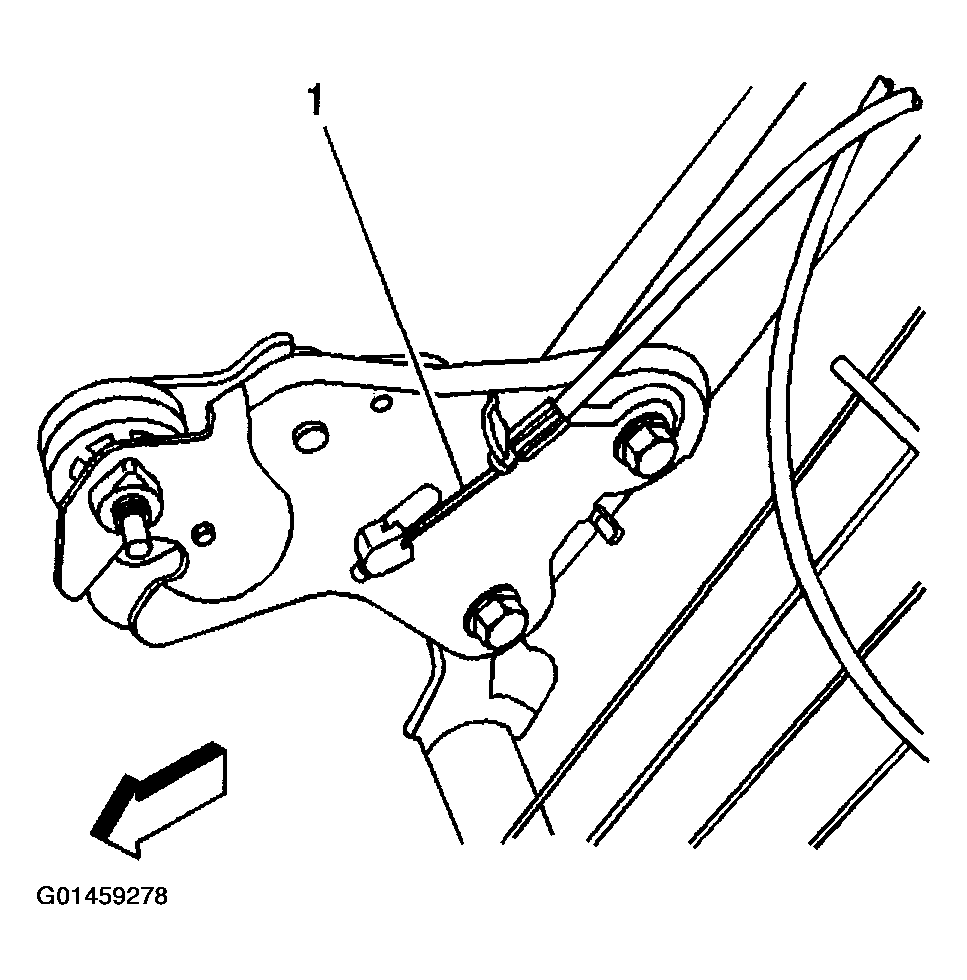

    Fig 1: Connecting Cable To Riser Assembly
    G01459278Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the bolts (1) that retain the front riser (2) to the cushion frame.

    Tighten

    1. Tighten the bolts to 53 N.m (39 lb ft).

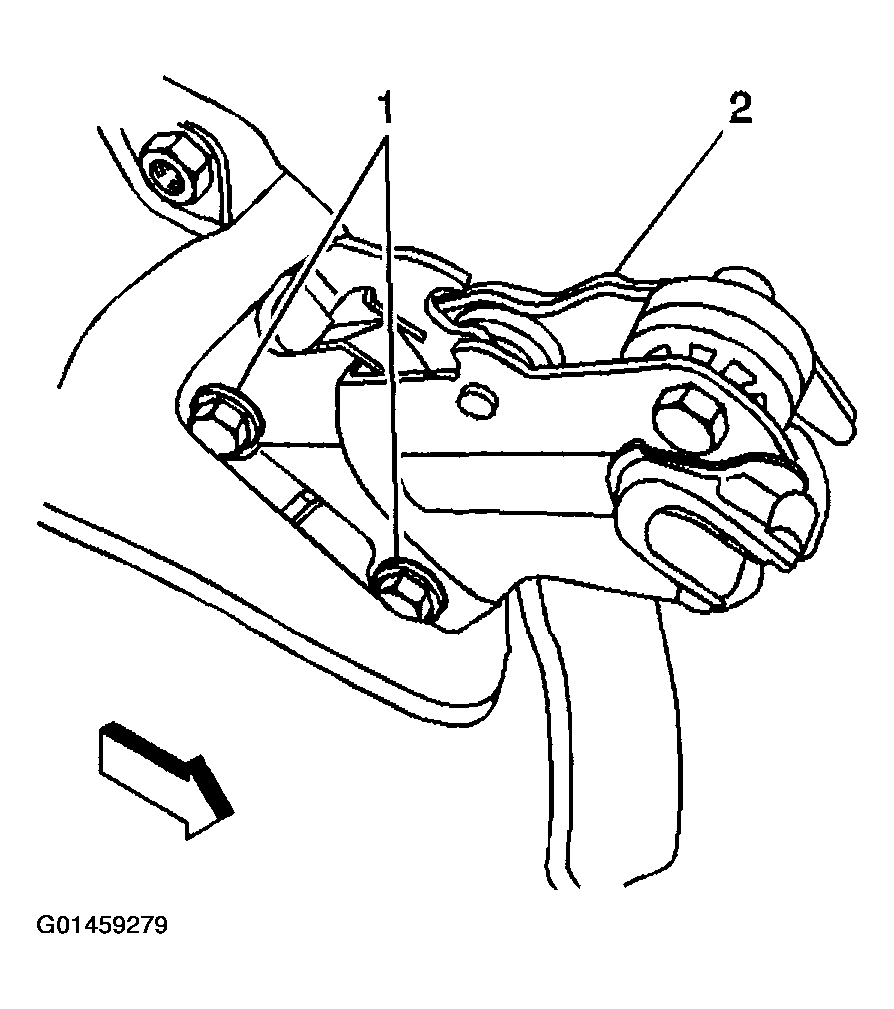

    Fig 2: Installing Bolts That Retain Front Riser To Cushion Frame
    G01459279Courtesy of GENERAL MOTORS CORP.
  4. Engage the velcro strips (1).

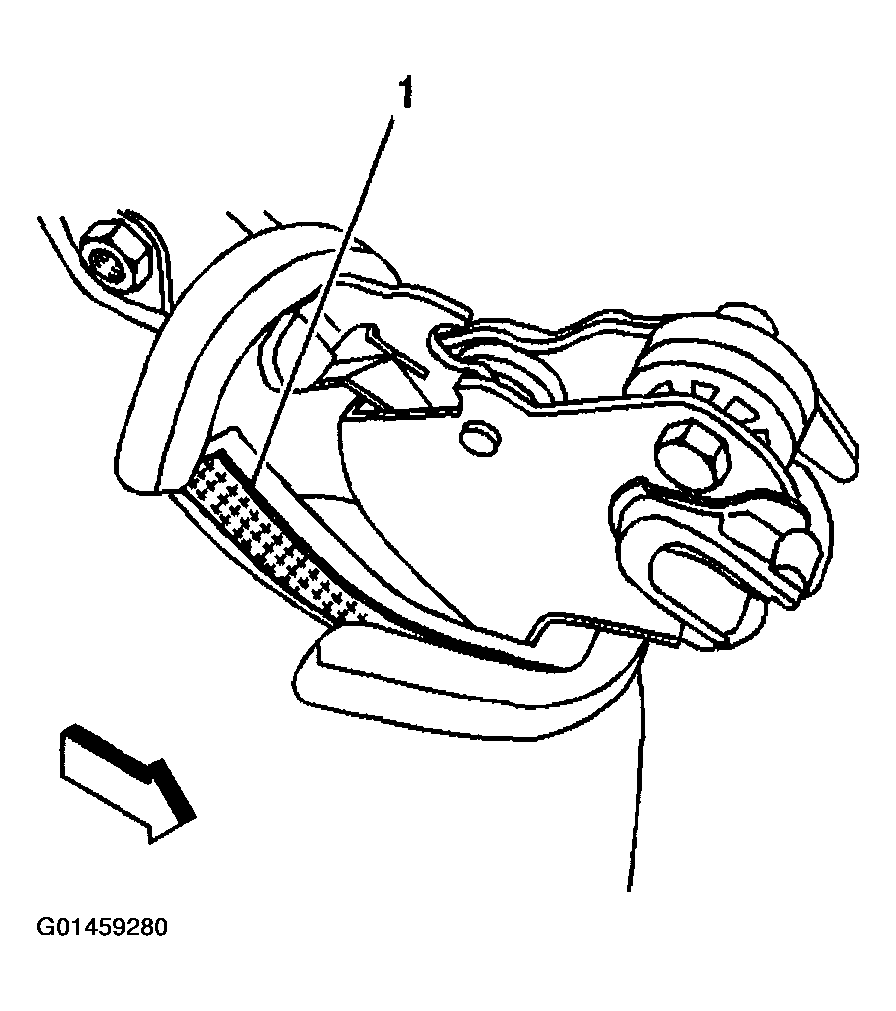

    Fig 3: Engaging Velcro Strips
    G01459280Courtesy of GENERAL MOTORS CORP.
