Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat into the vehicle.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the seat retaining bolts.

    Tighten

    1. Tighten the bolts to 55 N.m (41 lb ft).
  3. Connect the electrical connectors, if equipped.
  4. Install the covers to the seat bolts.
  5. Install the front and the rear leg trim covers.

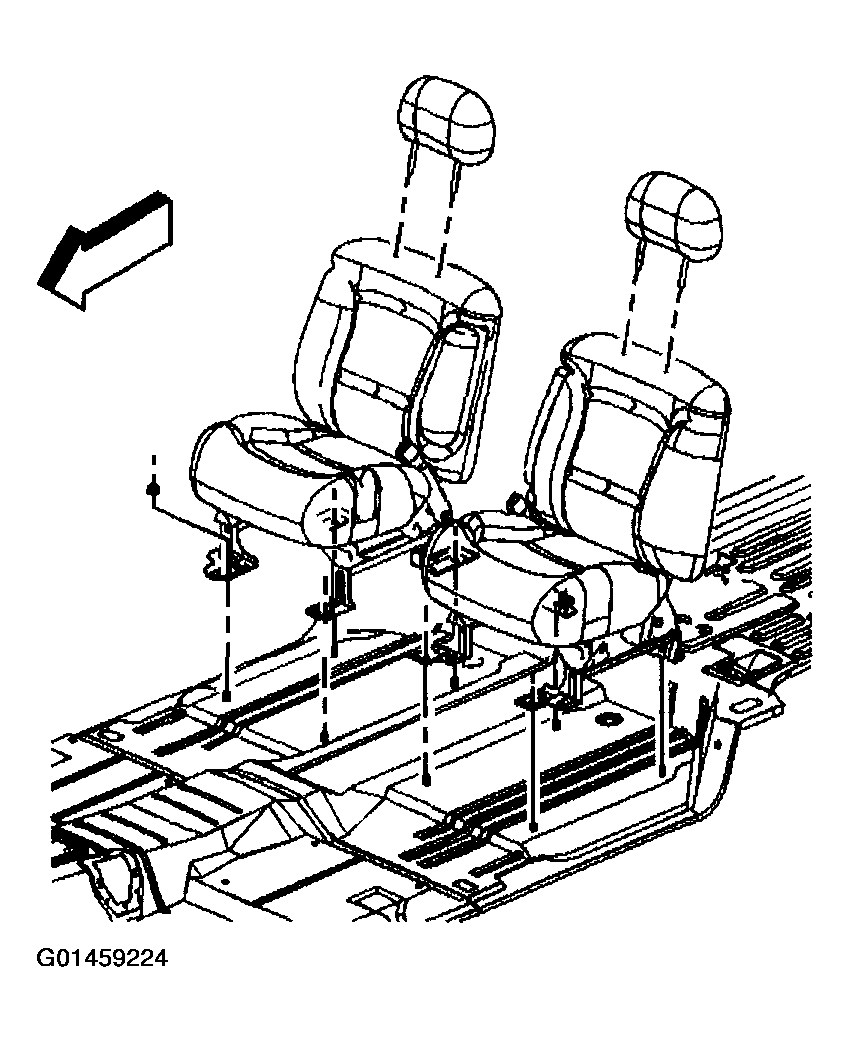

    Fig 1: Installing Seat Retaining Bolts
    G01459224Courtesy of GENERAL MOTORS CORP.
