Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR Caution in Cautions and Notices.
  1. If equipped with side air bags, disable the SIR system. Refer to SIR Disabling and Enabling Zone 7 and SIR Disabling and Enabling Zone 9 in SIR.
  2. Move the seat to the full rearward position. Remove the front seat nut cover (3), if equipped.
  3. Remove the seat retaining front nuts (2).
  4. Move the seat to the full forward position in order to remove the seat retaining rear bolts (1).
  5. Disconnect the electrical harness, if equipped.
  6. Remove the seat from the vehicle.

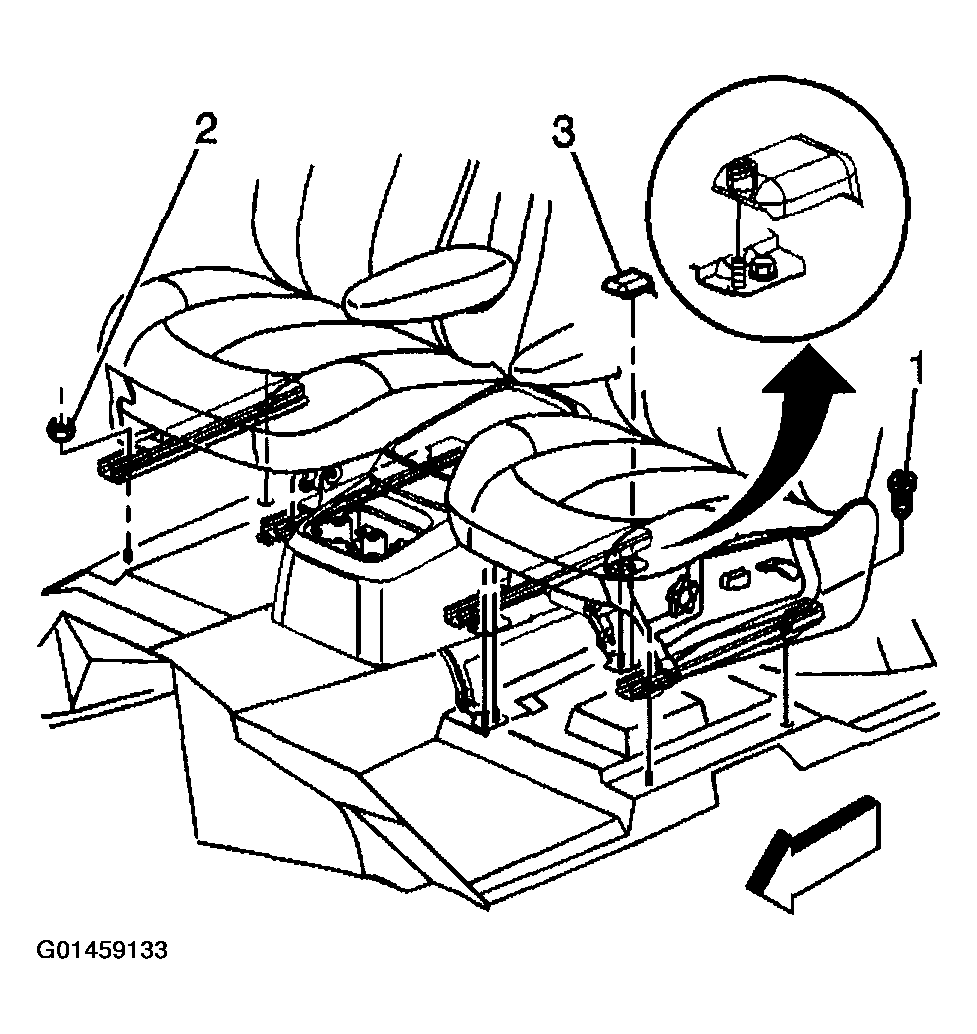

Fig 1: Removing Front Seat Nut Cover
G01459133Courtesy of GENERAL MOTORS CORP.
