Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front nuts (2) on the underside of the seat cushion.
  2. Remove the front seat trim panel. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .

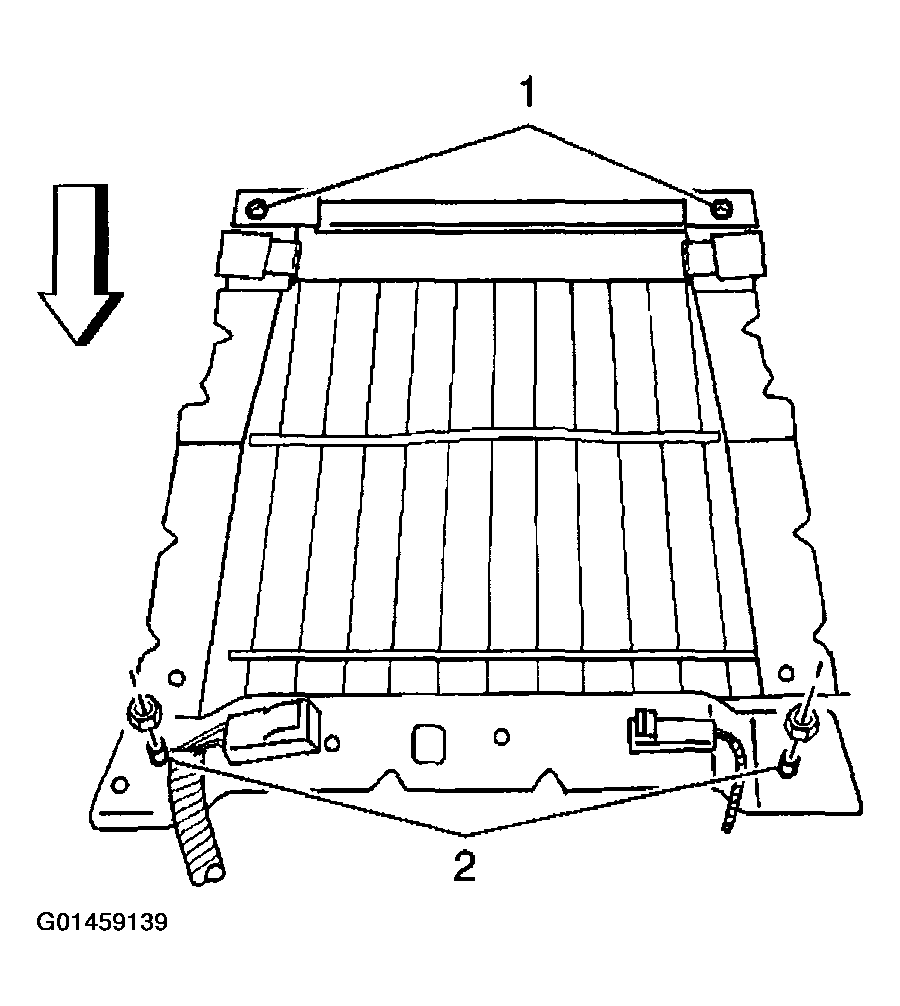

    Fig 1: Removing Front Nuts On Underside Of Seat Cushion
    G01459139Courtesy of GENERAL MOTORS CORP.
  3. Unsnap the lumbar cable (6). Disconnect the lumbar wire harness if equipped with power lumbar.
  4. Disconnect the electrical connectors.

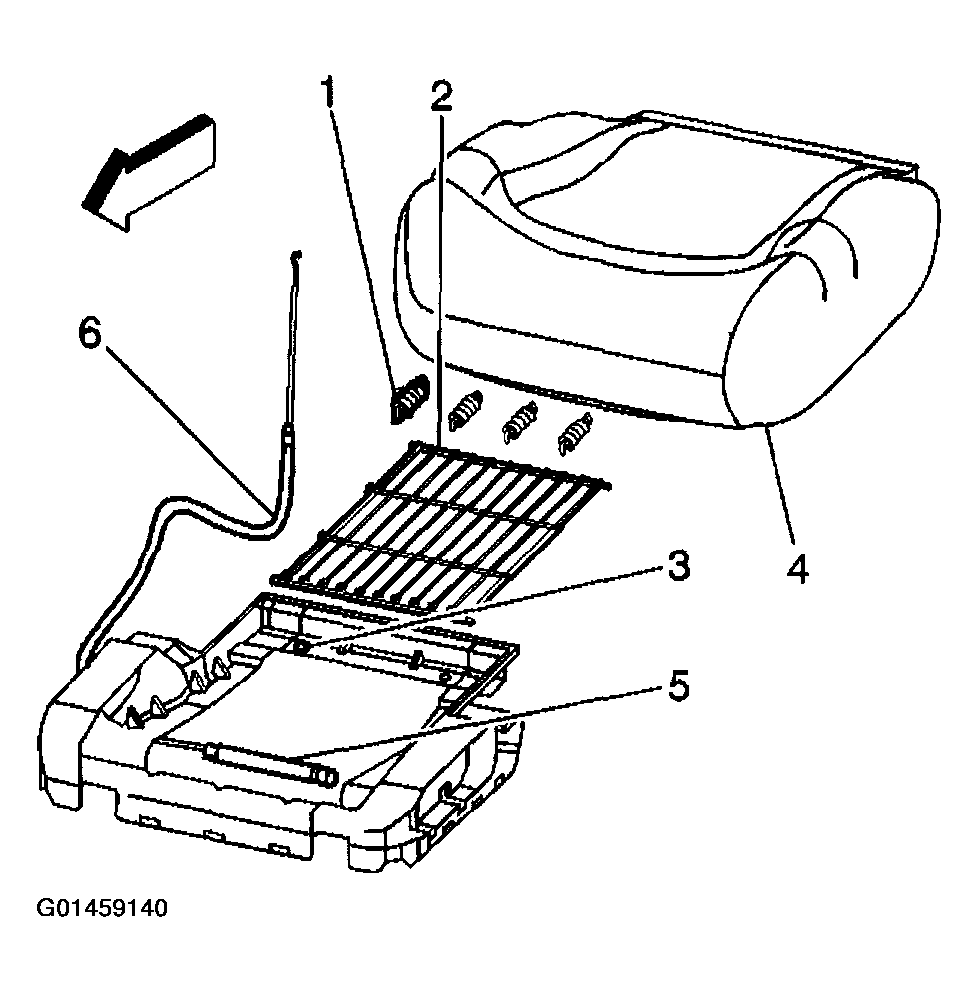

    Fig 2: Disconnecting Electrical Connectors
    G01459140Courtesy of GENERAL MOTORS CORP.
  5. Remove the pressure sensor (2) from the front passenger seat frame, if equipped with the Inflatable Restraint Passenger Presence System.

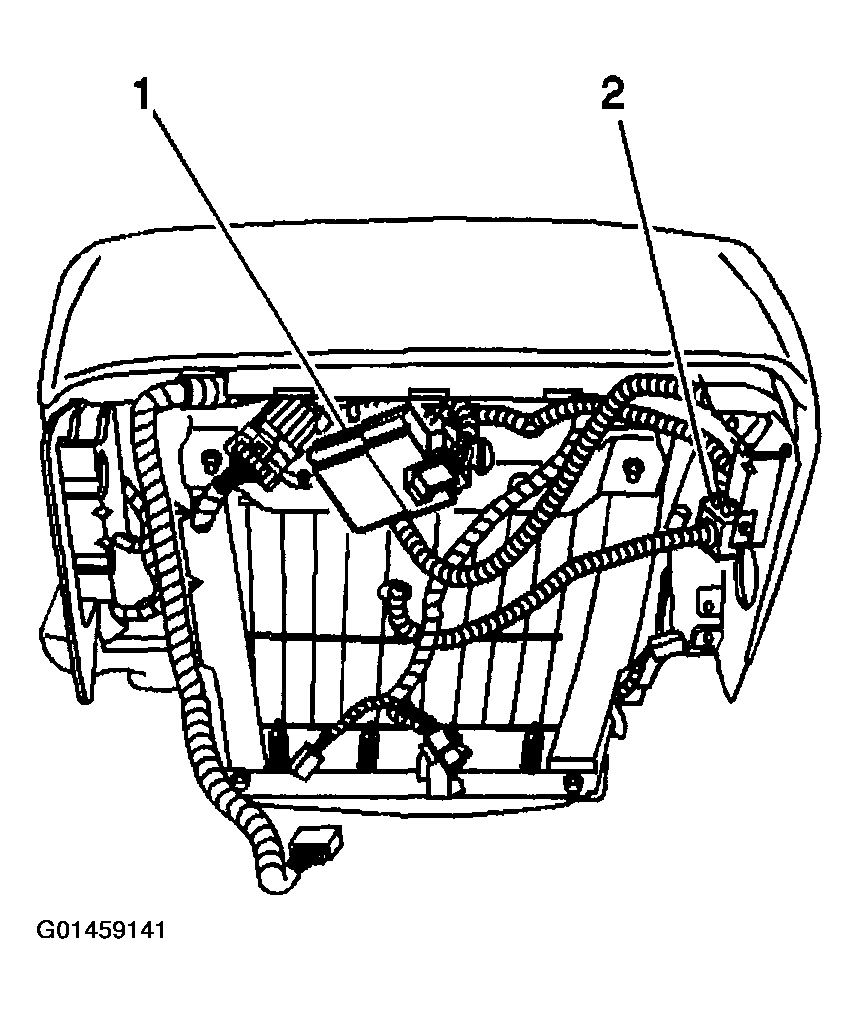

    Fig 3: Removing Pressure Sensor From Front Passenger Seat Frame
    G01459141Courtesy of GENERAL MOTORS CORP.
  6. Lift the seat cushion up off the rear plastic holders (1) on the underside of the seat cushion, and pull forward.
  7. Remove the seat switch bezel. Refer to SEAT SWITCH BEZEL REPLACEMENT  .

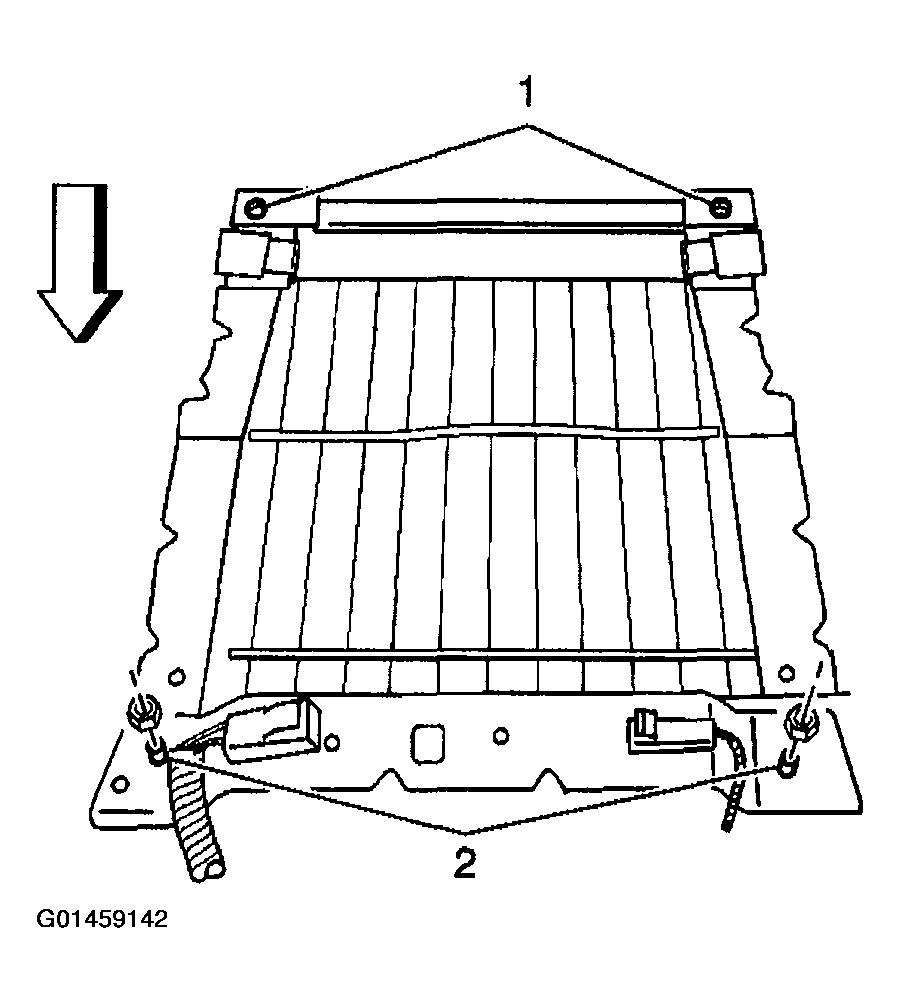

    Fig 4: Lifting Seat Cushion Up Off Rear Plastic Holders On Underside Of Seat Cushion
    G01459142Courtesy of GENERAL MOTORS CORP.
  8. Remove the lumbar actuator (5).

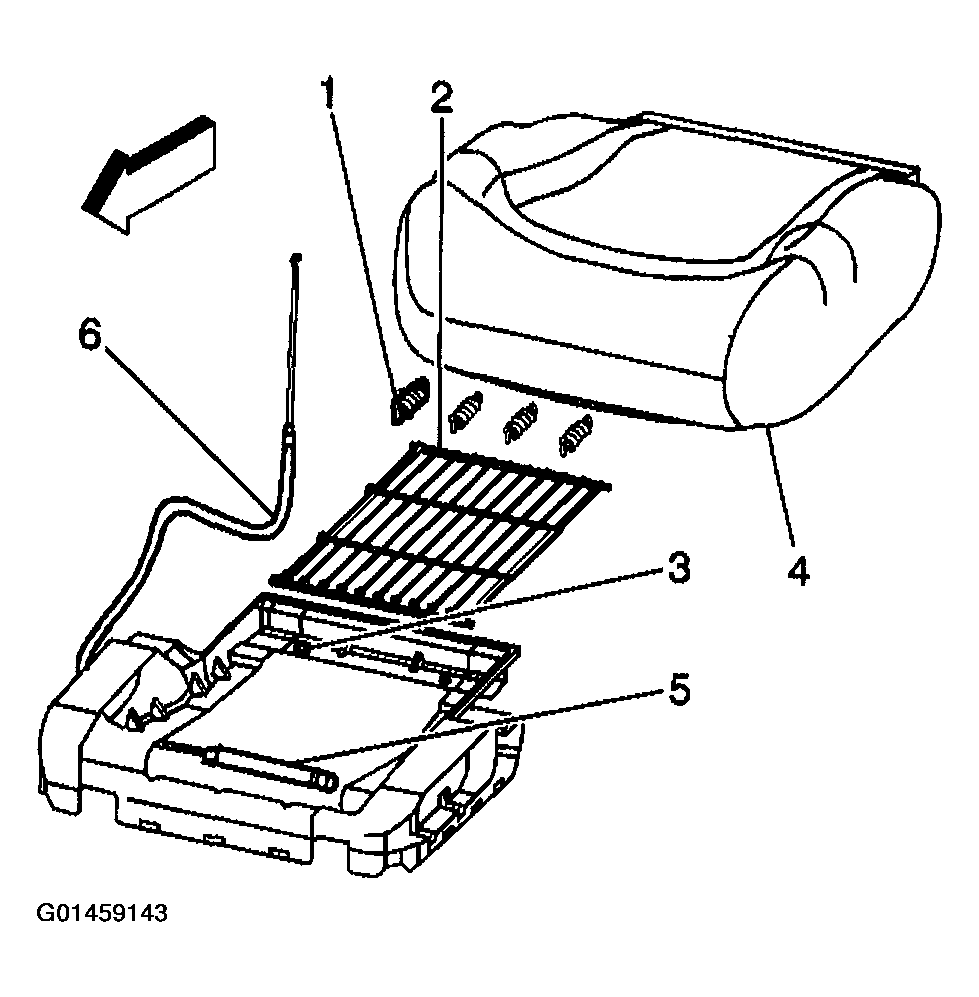

    Fig 5: Removing Lumbar Actuator
    G01459143Courtesy of GENERAL MOTORS CORP.
  9. Unclip the seat trim cover from the seat cushion frame.

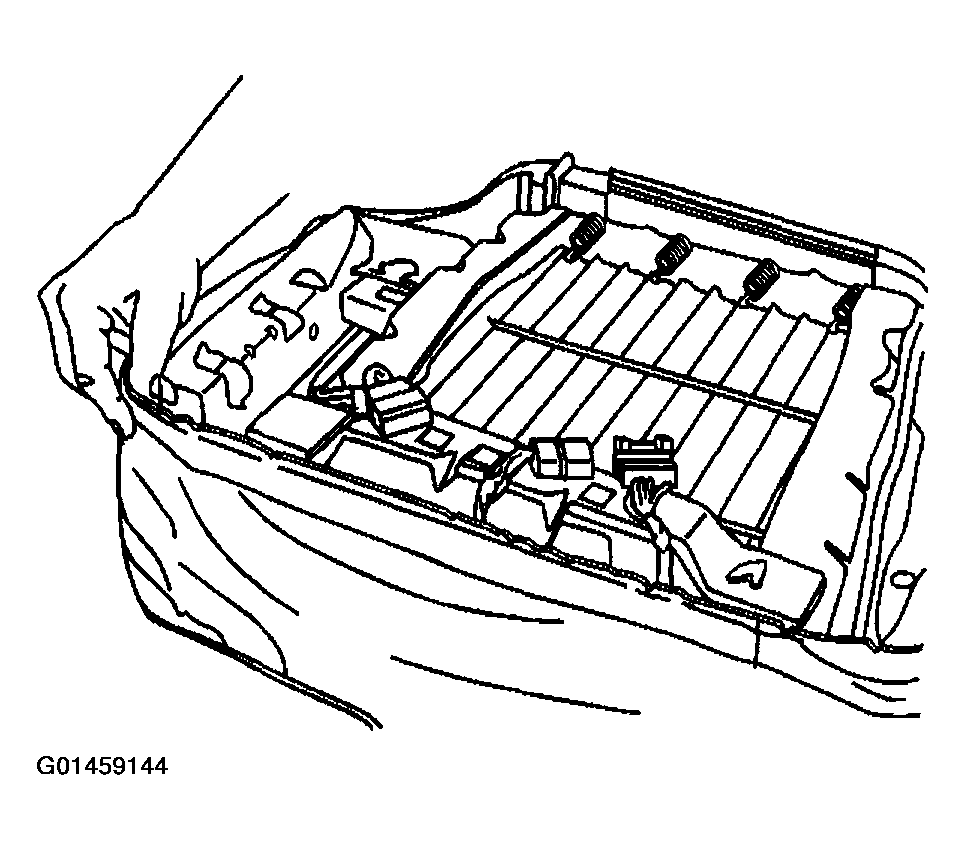

    Fig 6: Uncliping Seat Trim Cover From Seat Cushion Frame
    G01459144Courtesy of GENERAL MOTORS CORP.
  10. Using a side motion, carefully separate the seat cushion trim cover from the seat cushion pad.
    CAUTION: Replace the passenger presence system as a complete assembly to prevent possible injury to the occupant. The bladder, the pressure sensor, the seat cushion, and the control module are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the passenger presence system to operate improperly.
  11. If replacing the front passenger seat cushion you must also replace the Inflatable Restraint Passenger Presence System. Refer to Inflatable Restraint Passenger Presence System Replacement - Front in SIR.
  12. Remove the pad from the seat cushion frame.
  13. Remove the seat cushion heater element, if equipped. Refer to SEAT CUSHION HEATER ELEMENT REPLACEMENT - FRONT  .

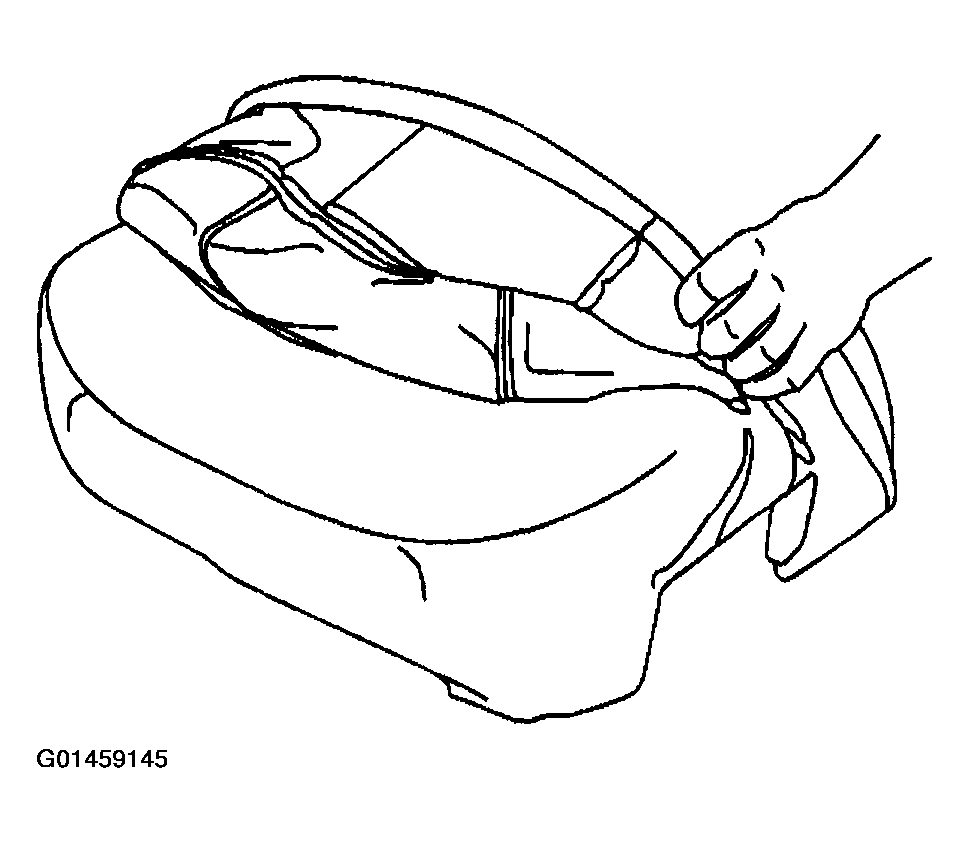

    Fig 7: Removing Pad From Seat Cushion Frame
    G01459145Courtesy of GENERAL MOTORS CORP.
