Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cushion heater element, if equipped. Refer to SEAT CUSHION HEATER ELEMENT REPLACEMENT - FRONT  .
  2. Install the Inflatable Restraint Passenger Presence System. Refer to Inflatable Restraint Passenger Presence System Replacement - Front in the SIR.
  3. Install the seat cushion pad to the seat cushion frame.
  4. Using a side motion, carefully pull the seat cushion cover onto the frame pad.

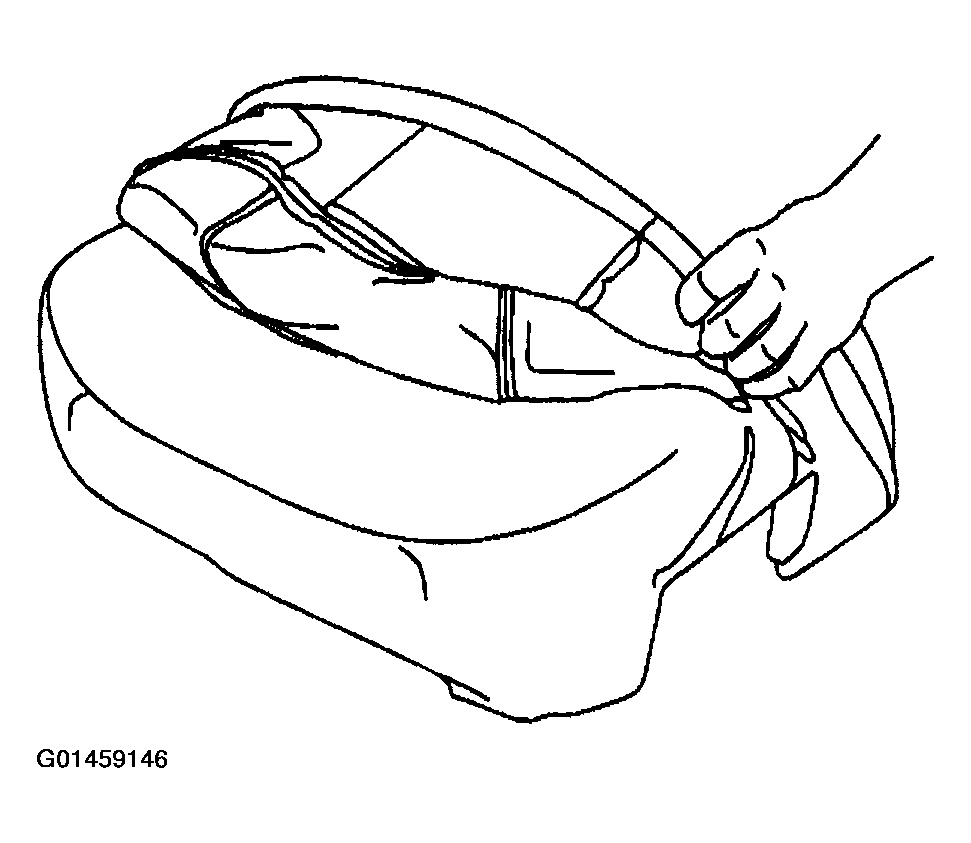

    Fig 1: Installing Seat Cushion Pad To Seat Cushion Frame
    G01459146Courtesy of GENERAL MOTORS CORP.
  5. Attach the seat trim cover to the seat cushion frame.

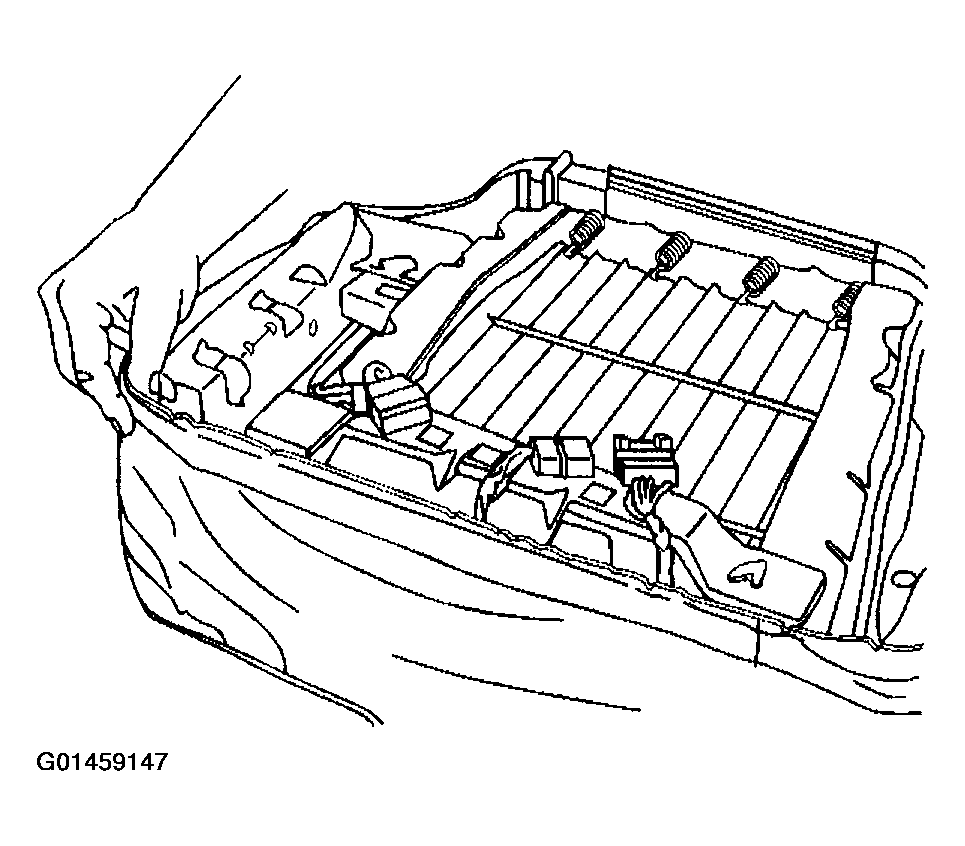

    Fig 2: Attaching Seat Trim Cover To Seat Cushion Frame
    G01459147Courtesy of GENERAL MOTORS CORP.
  6. Install the lumbar actuator (5).
  7. Install the seat switch bezel. Refer to SEAT SWITCH BEZEL REPLACEMENT  .

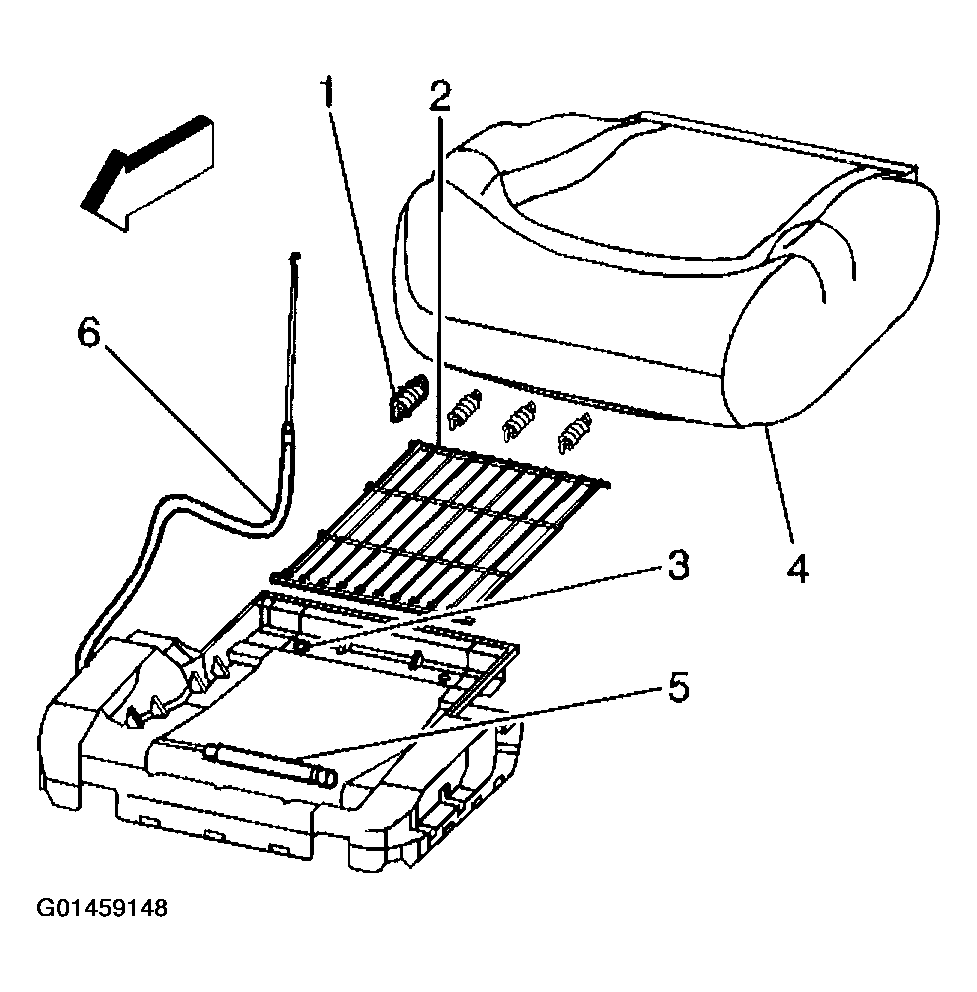

    Fig 3: Installing Lumbar Actuator
    G01459148Courtesy of GENERAL MOTORS CORP.
  8. Place the cushion on the rear plastic holders (1) on the underside of the seat cushion, and push rearward.

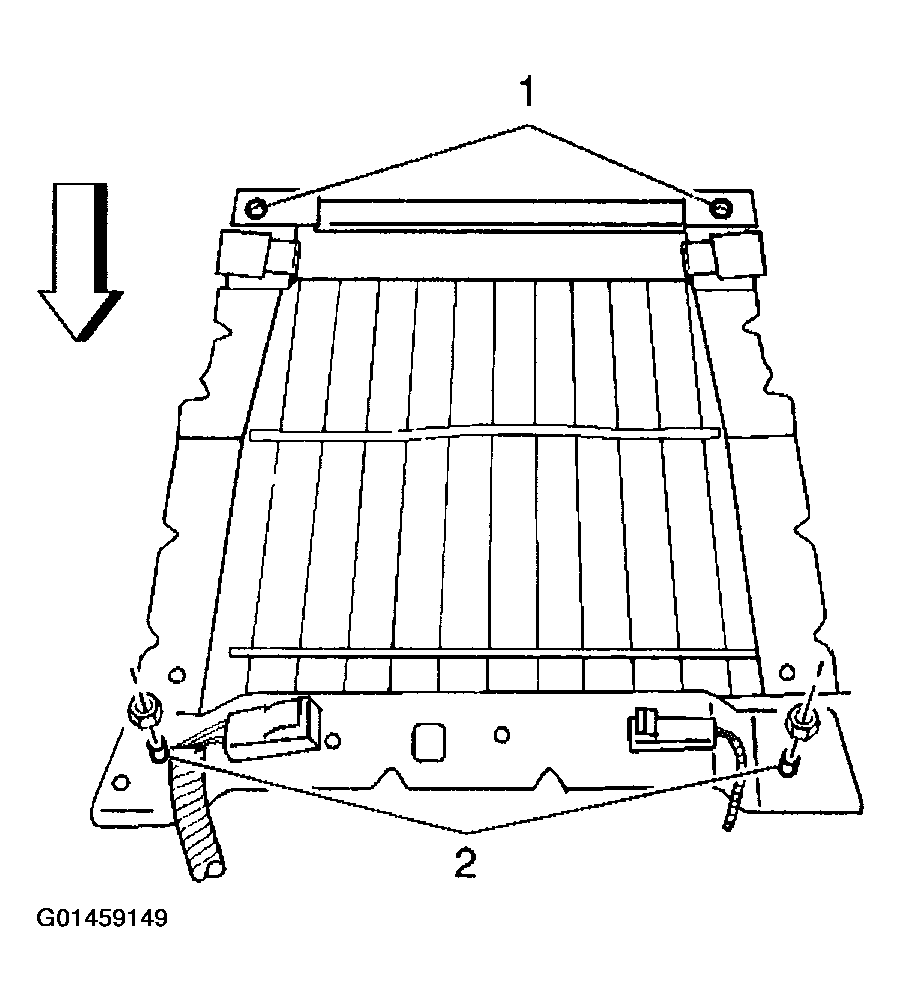

    Fig 4: Placing Cushion On Rear Plastic Holders On Underside Of Seat Cushion
    G01459149Courtesy of GENERAL MOTORS CORP.
  9. Connect the lumbar cable to the underside of the seat cushion (6). Connect the lumbar wire harness, if equipped with power lumbar.

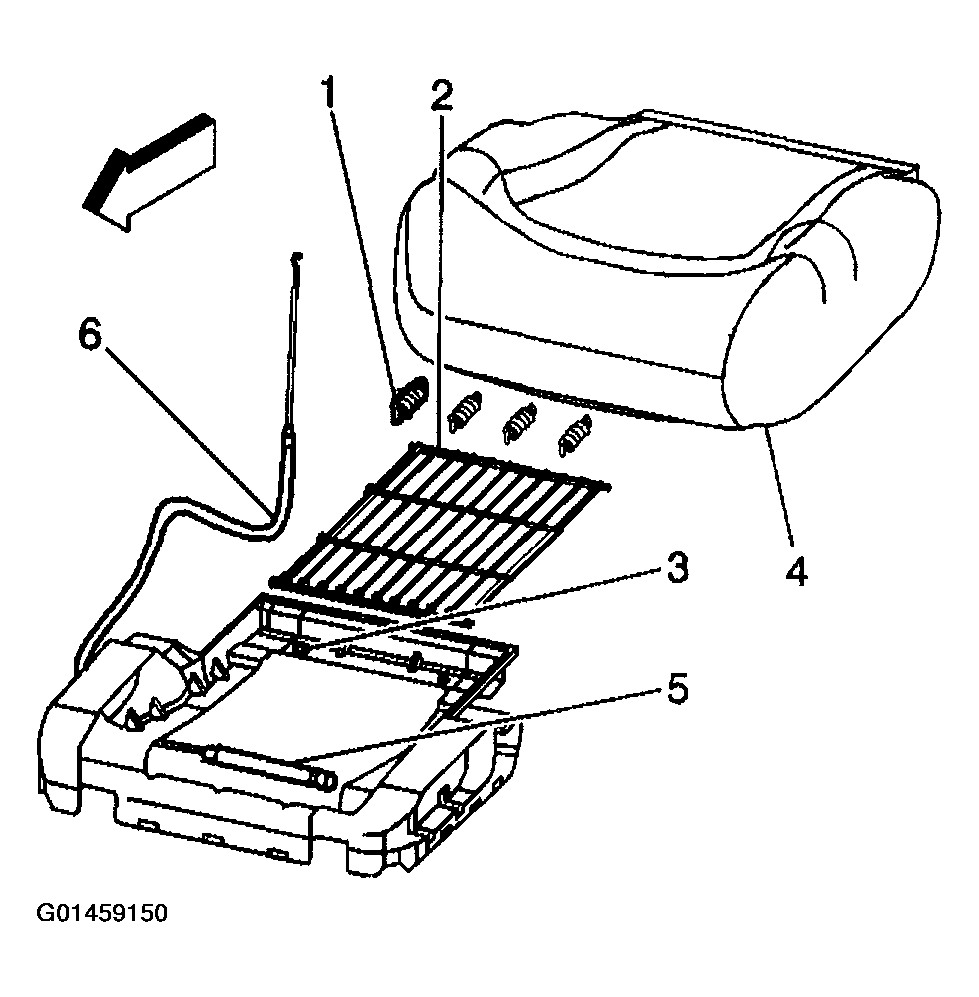

    Fig 5: Connecting Lumbar Cable To Underside Of Seat Cushion
    G01459150Courtesy of GENERAL MOTORS CORP.
  10. Install the pressure sensor (2) to the front passenger seat frame, if equipped with the Inflatable Restraint Passenger Presence System.
  11. Connect the electrical connectors.

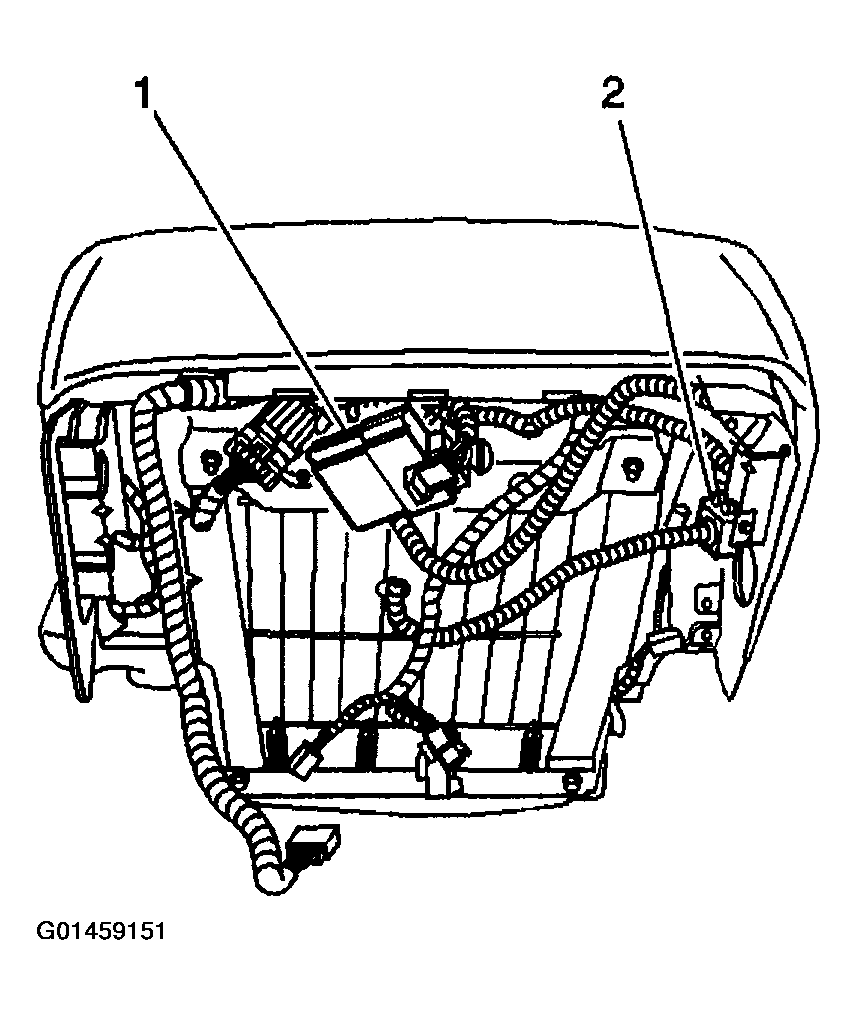

    Fig 6: Installing Pressure Sensor To Front Passenger Seat Frame
    G01459151Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  12. Install the front nuts (2) onto the studs on the underside of the cushion.

    Tighten

    1. Tighten the nuts to 21 N.m (15 lb ft).
  13. Install the front seat trim panel. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .
  14. Re-zero the Inflatable Restraint Passenger Presence System. Refer to Passenger Presence System Rezeroing Procedure in SIR.

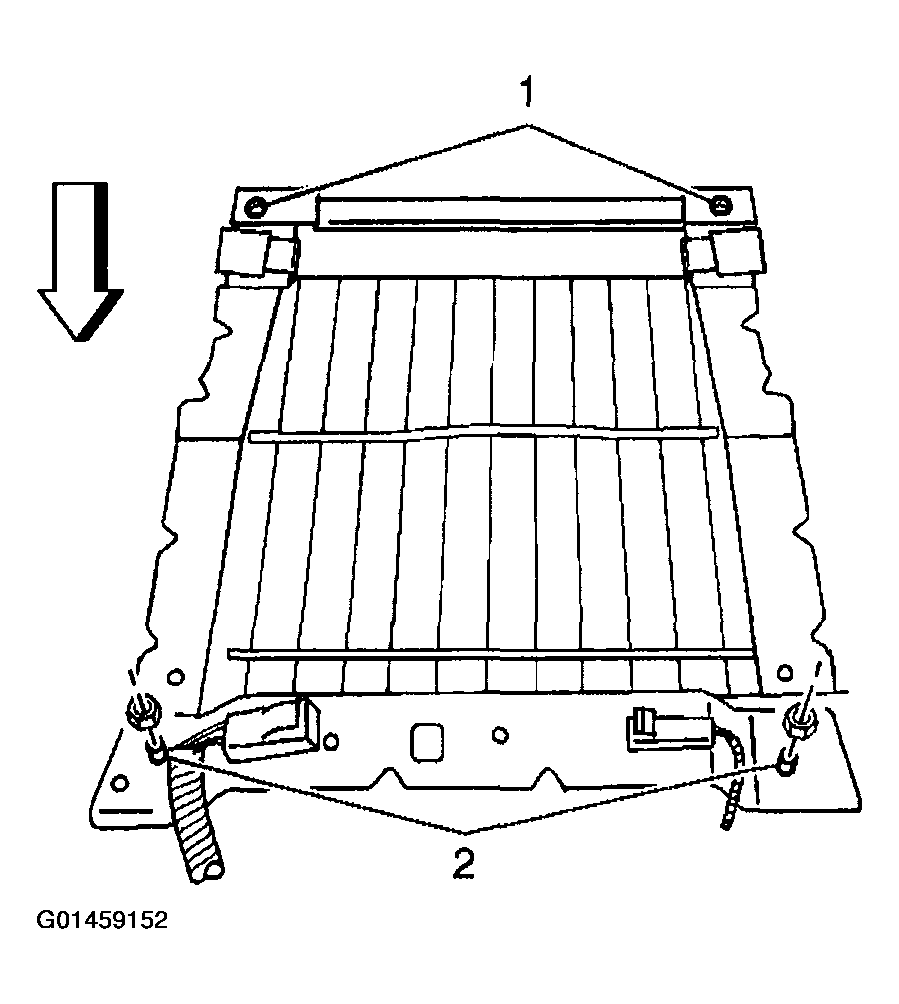

    Fig 7: Installing Front Nuts Onto Studs On Underside Of Cushion
    G01459152Courtesy of GENERAL MOTORS CORP.
