Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace the inflatable restraint passenger presence system if the passenger seat cushion foam is damaged. Refer to Inflatable Restraint Passenger Presence System Replacement - Front in SIR.
  2. Connect the cushion heater wiring harness.
  3. Install the seat cushion heater.
  4. Install the seat cushion trim cover. Refer to SEAT CUSHION TRIM COVER AND PAD REPLACEMENT  .
  5. Install the seat trim panel. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .
  6. Re-zero the inflatable restraint passenger presence system for the front passenger seat. Refer to Passenger Presence System Rezeroing Procedure in SIR.

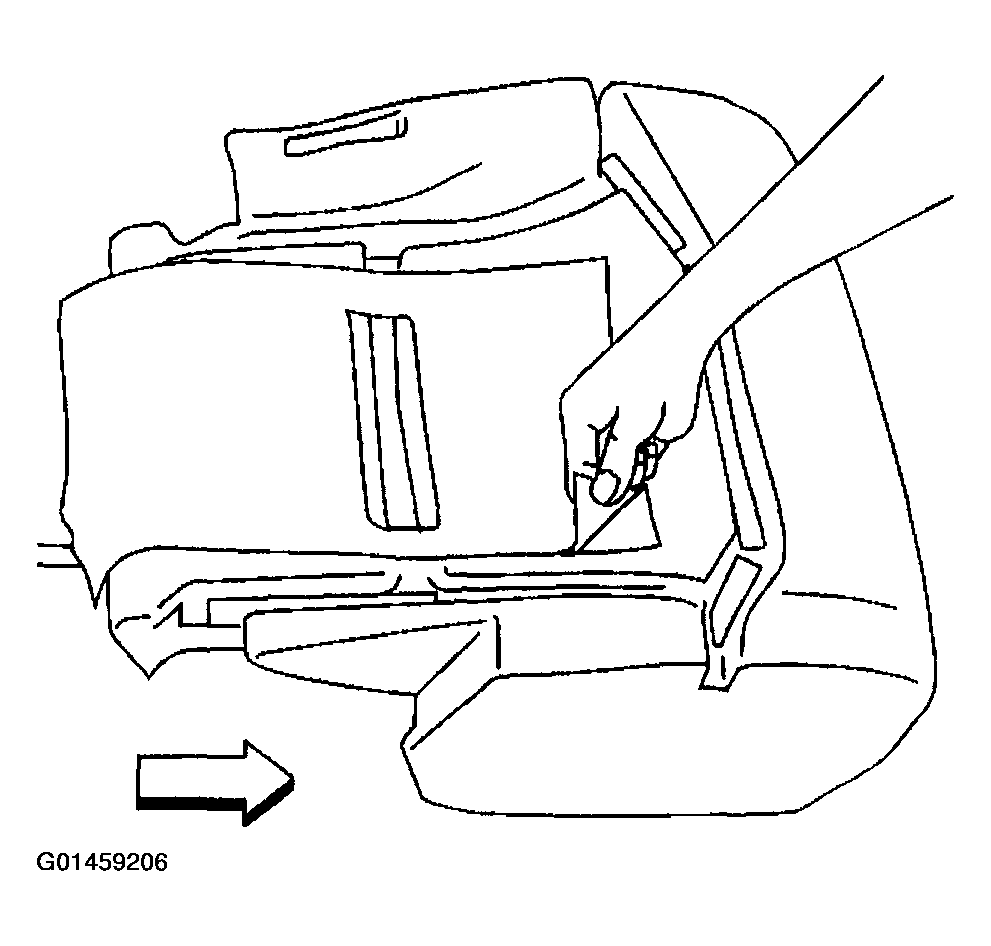

    Fig 1: Installing Seat Cushion Trim Cover
    G01459206Courtesy of GENERAL MOTORS CORP.
