Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat cushion and cover. Refer to SEAT CUSHION COVER AND PAD REPLACEMENT - REAR (60/40 SPLIT - 50/50 SPLIT)  or SEAT CUSHION COVER AND PAD REPLACEMENT - REAR (BENCH)  .
  2. Remove the bolt (1) from the seat belt anchor.
  3. Remove the bolt (2) from the hinge assembly.
  4. Remove the seat cushion frame.
  5. Transfer all necessary parts over to the new cushion frame.

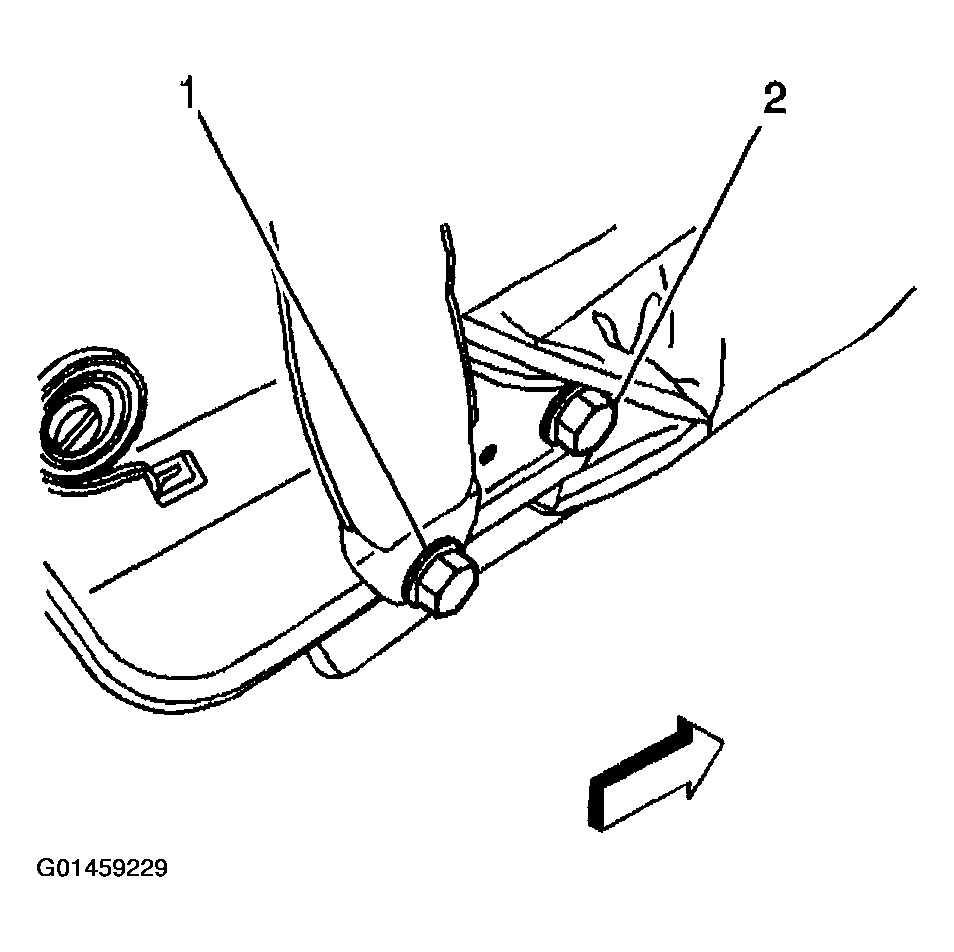

    Fig 1: Removing Bolt From Hinge Assembly
    G01459229Courtesy of GENERAL MOTORS CORP.
