Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Install the seat cushion frame.NOTE: Refer to Fastener Notice in Cautions and Notices.

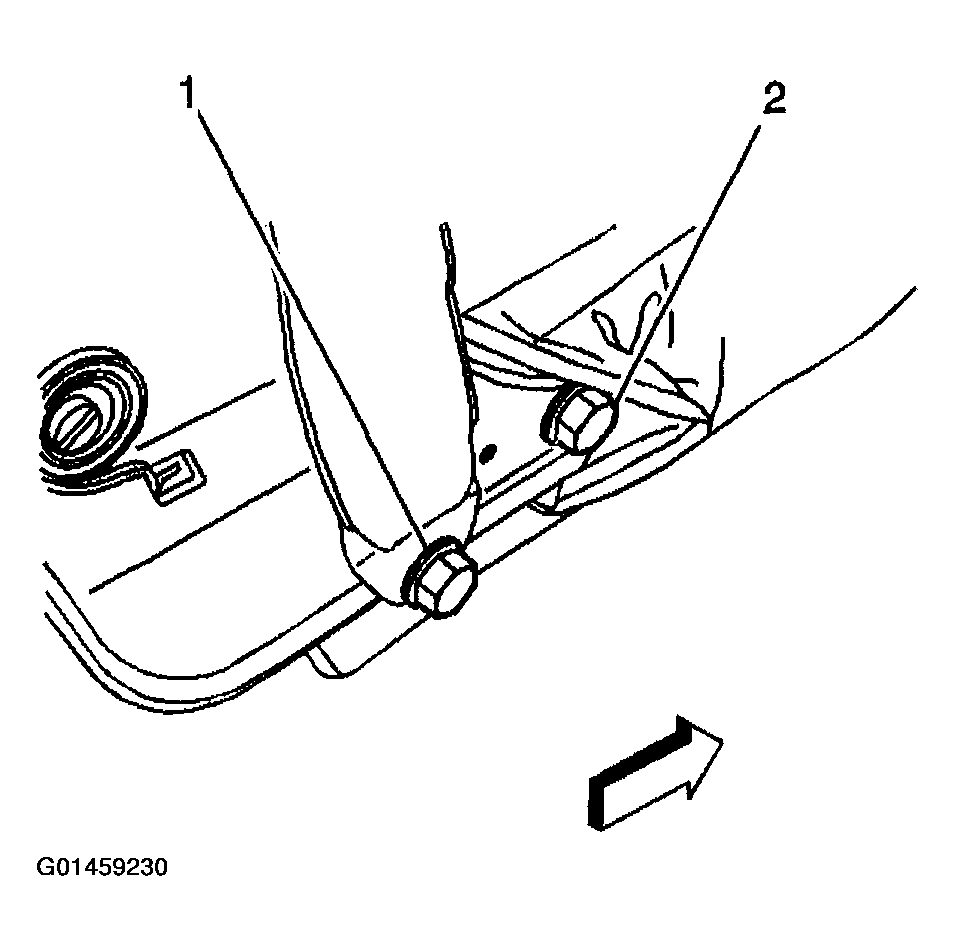

- Install the bolt (2) to the hinge assembly.
Tighten
- Tighten the hinge bolt to 53 N.m (39 lb ft)
- Install the bolt (1) to the seat belt anchor.
Tighten
- Tighten the seat belt anchor bolt to 53 N.m (39 lb ft)
- Install the seat cushion and cover. Refer to SEAT CUSHION COVER AND PAD REPLACEMENT - REAR (60/40 SPLIT - 50/50 SPLIT) or SEAT CUSHION COVER AND PAD REPLACEMENT - REAR (BENCH) .
