Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat cushion trim cover (8) and the pad (7). Refer to SEAT CUSHION COVER AND PAD REPLACEMENT - REAR (60/40 SPLIT - 50/50 SPLIT)  or SEAT CUSHION COVER AND PAD REPLACEMENT - REAR (BENCH)  .

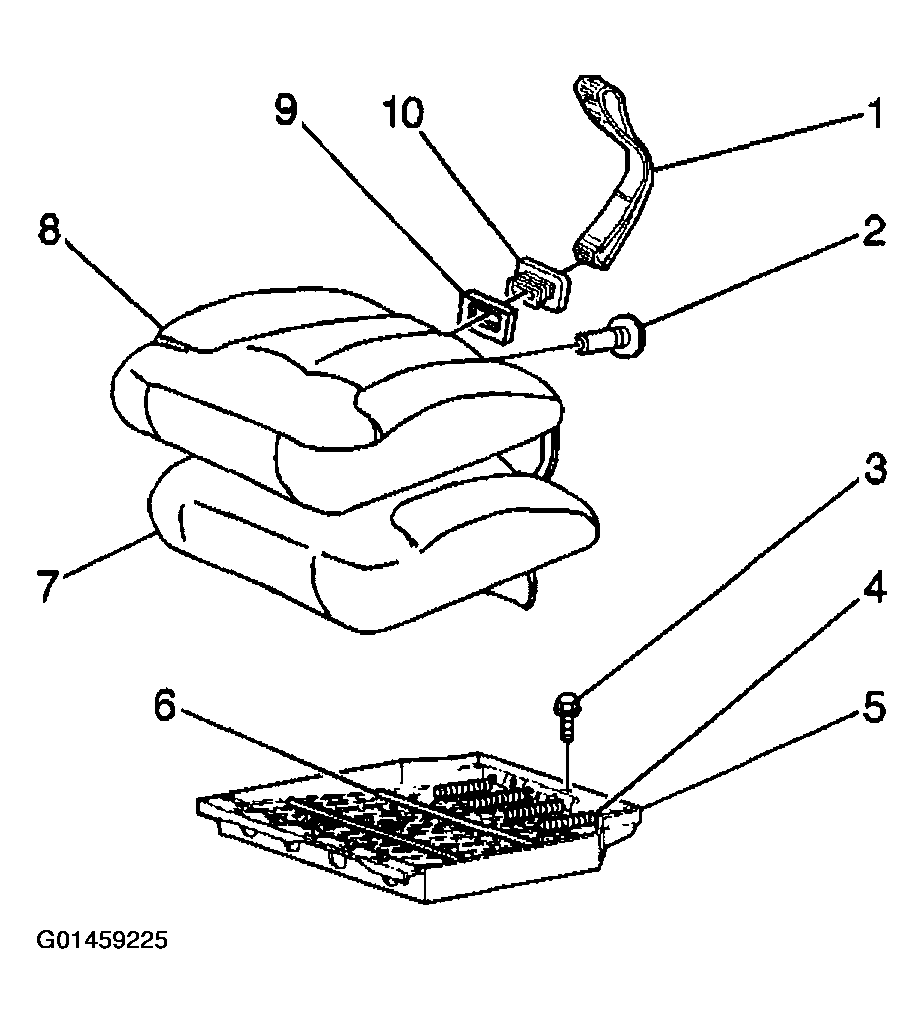

    Fig 1: Removing Seat Cushion Frame
    G01459225Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts from the hinge assembly, if equipped with folding seats.
  3. Remove the seat cushion frame (5).

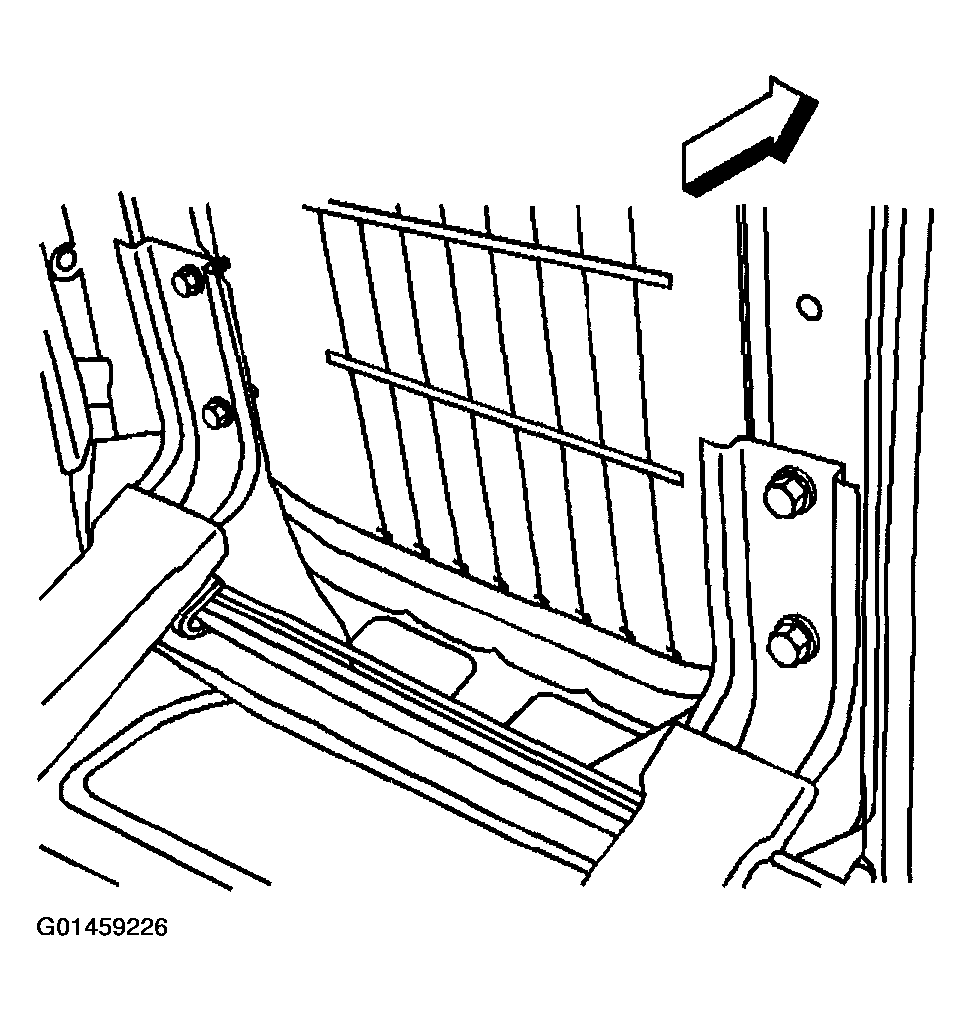

    Fig 2: Removing Bolts From Hinge Assembly
    G01459226Courtesy of GENERAL MOTORS CORP.
